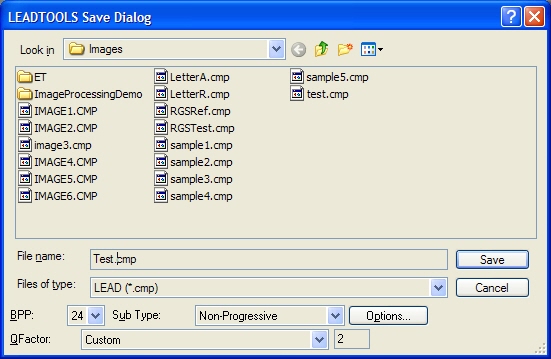

RasterSaveDialog Class

using Leadtools;
using Leadtools.Codecs;
using Leadtools.WinForms.CommonDialogs.File;

public void saveDlg_Help(object sender, RasterDialogHelpEventArgs e)
{
   switch (e.Dialog)
   {
      case RasterDialogHelpName.Save:
         {
            MessageBox.Show("Save dialog Help");
            break;
         }

      case RasterDialogHelpName.J2kOptions:
         {
            MessageBox.Show("Jpeg 2000 Save Options dialog Help");
            break;
         }

      case RasterDialogHelpName.SaveOptions:
         {
            MessageBox.Show("Save Options dialog Help");
            break;
         }
   }
}

public void RasterSaveDialogExample()
{
   RasterCodecs rasterCodecs = new RasterCodecs();

   RasterSaveDialog saveDlg = new RasterSaveDialog(rasterCodecs);
   RasterSaveDialogFileFormatsList saveDlgFormatList = new RasterSaveDialogFileFormatsList(RasterDialogFileFormatDataContent.User);

   // Adding Cmp format
   saveDlgFormatList.Add(RasterDialogFileTypesIndex.Lead, RasterDialogBitsPerPixelDataContent.Default);

   // Adding Tiff format
   saveDlgFormatList.Add(RasterDialogFileTypesIndex.Tiff, RasterDialogBitsPerPixelDataContent.User);
   saveDlgFormatList[1].Name = "Custom Tiff";

   //Adding all default 12-bit subtypes
   saveDlgFormatList[1].BitsPerPixelList.Add(RasterDialogFileTypesIndex.Tiff, 12, RasterDialogFileSubTypeDataContent.Default);

   //Adding all default 24-bit and some subtypes
   saveDlgFormatList[1].BitsPerPixelList.Add(RasterDialogFileTypesIndex.Tiff, 24, RasterDialogFileSubTypeDataContent.User);
   saveDlgFormatList[1].BitsPerPixelList[1].SubFormatsList.Add(RasterDialogFileTypesIndex.Tiff, 24, (int)RasterDialogTiff24SubTypesIndex.UncompressedYCbCr);
   saveDlgFormatList[1].BitsPerPixelList[1].SubFormatsList.Add(RasterDialogFileTypesIndex.Tiff, 24, (int)RasterDialogTiff24SubTypesIndex.PackbitsRgb);
   saveDlgFormatList[1].BitsPerPixelList[1].SubFormatsList.Add(RasterDialogFileTypesIndex.Tiff, 24, (int)RasterDialogTiff24SubTypesIndex.PackbitsCmyk);

   saveDlg.AutoProcess = false;
   saveDlg.BitsPerPixel = 24;
   saveDlg.DefaultExt = "cmp";
   saveDlg.EnableSizing = true;
   saveDlg.FileFormatsList = saveDlgFormatList;
   saveDlg.FileName = "Out_Image1.cmp";
   saveDlg.FileSubTypeIndex = (int)RasterDialogCmpSubTypesIndex.NonProgressive;
   saveDlg.FileTypeIndex = RasterDialogFileTypesIndex.Lead;
   saveDlg.InitialDirectory = LEAD_VARS.ImagesDir;
   saveDlg.InitialView = FileDialogInitialView.List;
   saveDlg.PageNumber = 1;
   saveDlg.Passes = 1;
   saveDlg.PromptOverwrite = true;
   saveDlg.QualityFactor = 2;
   saveDlg.ShowFileOptionsBasicJ2kOptions = false;
   saveDlg.ShowFileOptionsJ2kOptions = false;
   saveDlg.ShowFileOptionsMultipage = true;
   saveDlg.ShowFileOptionsProgressive = true;
   saveDlg.ShowFileOptionsQualityFactor = true;
   saveDlg.ShowFileOptionsStamp = true;
   saveDlg.ShowPdfProfiles = true;
   saveDlg.ShowBitsPerPixel = true;
   saveDlg.ShowFormatSubType = true;
   saveDlg.ShowHelp = true;
   saveDlg.ShowOptions = true;
   saveDlg.ShowQualityFactor = true;
   saveDlg.StampBitsPerPixel = 24;
   saveDlg.StampHeight = 120;
   saveDlg.StampWidth = 120;
   saveDlg.Title = "Save Dialog";
   saveDlg.WithStamp = false;
   saveDlg.Help += new EventHandler<RasterDialogHelpEventArgs>(saveDlg_Help);

   // Replace "Cancel" string with "Cancel Save"
   RasterSaveDialog.SetDialogString(new RasterDialogStrings("Cancel Save", RasterDialogStringsId.SaveCancel));

   if (DialogResult.OK == saveDlg.ShowDialog(null))
   {
      Leadtools.RasterImage saveImage = rasterCodecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "Image1.cmp"));

      switch (saveDlg.Format)
      {
         case RasterImageFormat.Abc:
            {
               rasterCodecs.Options.Abc.Save.QualityFactor = saveDlg.AbcQualityFactor;
               break;
            }

         case RasterImageFormat.Ecw:
            {
               rasterCodecs.Options.Ecw.Save.QualityFactor = saveDlg.QualityFactor;
               break;
            }

         case RasterImageFormat.Png:
            {
               rasterCodecs.Options.Png.Save.QualityFactor = saveDlg.QualityFactor;
               break;
            }

         case RasterImageFormat.Cmp:
            {
               rasterCodecs.Options.Jpeg.Save.QualityFactor = saveDlg.QualityFactor;
               rasterCodecs.Options.Jpeg.Save.CmpQualityFactorPredefined = saveDlg.CmpQualityFactor;
               break;
            }

         default:
            {
               rasterCodecs.Options.Jpeg.Save.QualityFactor = saveDlg.QualityFactor;
               break;
            }
      }

      rasterCodecs.Options.Jpeg.Save.SaveWithStamp = saveDlg.WithStamp;
      rasterCodecs.Options.Jpeg.Save.StampBitsPerPixel = saveDlg.StampBitsPerPixel;
      rasterCodecs.Options.Jpeg.Save.StampWidth = saveDlg.StampWidth;
      rasterCodecs.Options.Jpeg.Save.StampHeight = saveDlg.StampHeight;

      rasterCodecs.Save(saveImage,
                        saveDlg.FileName,
                        saveDlg.Format,
                        saveDlg.BitsPerPixel,
                        saveImage.Page,
                        saveImage.Page,
                        saveDlg.PageNumber,
                        saveDlg.MultiPage);

      RasterDialogStrings okButtonString = RasterSaveDialog.GetDialogString(RasterDialogStringsId.SaveCancel);
      MessageBox.Show(okButtonString.ToString());
   }
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
