AnnLineObject Class

C#
Visual Basic
Objective-C
Java
C++

[SerializableAttribute()]
public class AnnLineObject : AnnObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnLineObject
   Inherits AnnObject
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnLineObject

[SerializableAttribute()]
public ref class AnnLineObject : public AnnObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The line annotation object is a simple line that has a start point, an end point and a pen. For more information about the line annotation object refer to AnnLineObject. For more information about the automated line annotation object, refer to Annotation Objects - Automated Features.

This example creates a new line object from 100, 200 to 400, 600 pixels with red pen and then adds it to a container.

C#
Visual Basic
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnLineObject_AnnLineObject(ByVal container As AnnContainer)
   Dim line As AnnLineObject = New AnnLineObject()
   line.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   line.StartPoint = New AnnPoint(100, 200, AnnUnit.Pixel)
   line.EndPoint = New AnnPoint(400, 600, AnnUnit.Pixel)
   container.Objects.Add(line)
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnLineObject_AnnLineObject(AnnContainer container)
{
   AnnLineObject line = new AnnLineObject();
   line.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   line.StartPoint = new AnnPoint(100, 200, AnnUnit.Pixel);
   line.EndPoint = new AnnPoint(400, 600, AnnUnit.Pixel);
   container.Objects.Add(line);
}

Target Platforms

Reference

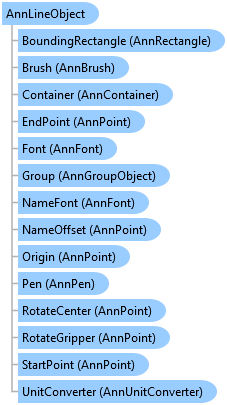

AnnLineObject Members
Leadtools.Annotations Namespace
