MedicalViewerTagAlignment Enumeration

Specifies the origin point to begin counting the rows specified in the row parameter in the SetTag method.

Syntax

public enum MedicalViewerTagAlignment : System.Enum, System.IComparable, System.IConvertible, System.IFormattable

'Declaration Public Enum MedicalViewerTagAlignment Inherits System.Enum Implements System.IComparable, System.IConvertible, System.IFormattable

'Usage Dim instance As MedicalViewerTagAlignment

public enum class MedicalViewerTagAlignment : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable

Members

Value	Member	Description
0x00000000	TopLeft	Start counting rows from the top of the cell. The tag will be left-justified.
0x00000001	LeftCenter	The tag is placed in the center, based on the height of the cell, and is left-justified.
0x00000002	BottomLeft	Start counting rows from the bottom of the cell. The tag will be left-justified.
0x00000003	TopCenter	The tag is placed in the center, based on the width of the cell, and is top-justified.
0x00000004	BottomCenter	The tag is placed in the center, based on the width of the cell, and is bottom-justified.
0x00000005	TopRight	Start counting rows from the top of the cell. The tag will be right-justified.
0x00000006	RightCenter	The tag is placed in the center, based on the height of the cell, and is right-justified.
0x00000007	BottomRight	Start counting rows from the bottom of the cell. The tag will be right-justified.

Remarks

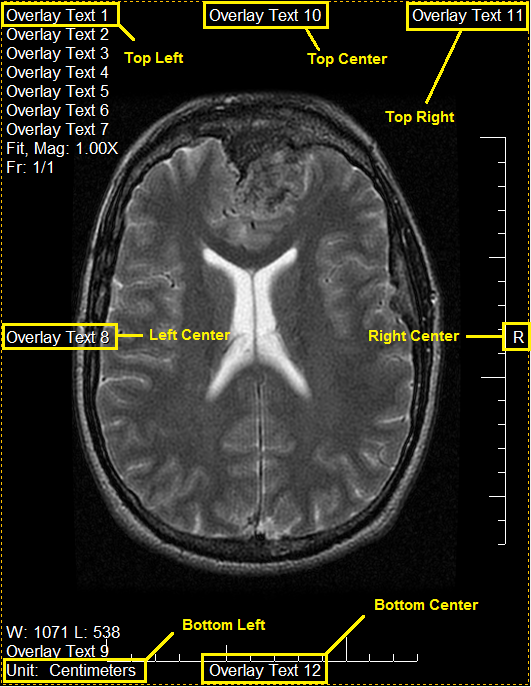

Below is a picture that describes how each tag is located based on the tag alignment value.

Inheritance Hierarchy

System.Object
   System.ValueType
      System.Enum
         Leadtools.MedicalViewer.MedicalViewerTagAlignment

Requirements
