MedicalViewerPanoramicCell Class






Members
Leadtools.MedicalViewer Namespace : MedicalViewerPanoramicCell Class
Represents the cell that will be used to display the panoramic frame resulted from adding a MedicalViewerMPRPolygon to a another cell.

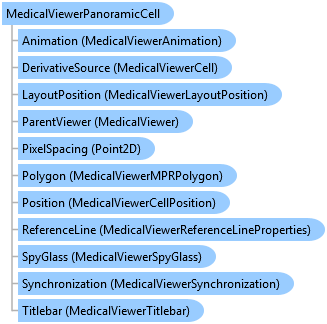

Object Model
Syntax
Remarks
In order to connect this panoramic cell to a polygon, pass it to the Polygon.

The user cannot draw the MedicalViewerMPRPolygon to:

Example
Copy Code
Imports Leadtools
Imports Leadtools.Dicom
Imports Leadtools.Medical3D
Imports Leadtools.Codecs
Imports Leadtools.MedicalViewer
Imports Leadtools.Annotations.Core
Imports Leadtools.Annotations.Designers
Imports Leadtools.ImageProcessing.Core

Private Class MedicalViewerMPRPolygonForm : Inherits Form
   Private _medicalViewer As MedicalViewer
   Private _seriesManager As MedicalViewerSeriesManager
   Private Sub MedicalViewer_SizeChanged(ByVal sender As Object, ByVal e As EventArgs)
      _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)
   End Sub

   Public Sub New(ByVal output As MedicalViewerSeriesManager)
      DicomEngine.Startup()
      Dim _codecs As RasterCodecs = New RasterCodecs()

      AddHandler SizeChanged, AddressOf MedicalViewer_SizeChanged

      ' Create the medical viewer and adjust the size and the location.
      _medicalViewer = New MedicalViewer(1, 2)
      _medicalViewer.Location = New Point(0, 0)
      _medicalViewer.Size = New Size(Me.ClientRectangle.Right, Me.ClientRectangle.Bottom)

      _seriesManager = output

      Dim cell As MedicalViewerMultiCell = New MedicalViewerMultiCell(Nothing, True, 1, 1)

      Dim index As Integer
      Dim count As Integer = output.Stacks(0).Items.Count
      Dim codecsInformation As CodecsImageInfo

      Dim imageInformation As MedicalViewerImageInformation() = New MedicalViewerImageInformation(count - 1) {}

      index = 0
      Do While index < count
         codecsInformation = _codecs.GetInformation(CStr(output.Stacks(0).Items(index).Data), True)

         imageInformation(index) = New MedicalViewerImageInformation()
         imageInformation(index).ImageHeight = codecsInformation.Width
         imageInformation(index).ImageWidth = codecsInformation.Width
         imageInformation(index).XResolution = codecsInformation.XResolution
         imageInformation(index).YResolution = codecsInformation.YResolution
         index += 1
      Loop

      AddHandler cell.FramesRequested, AddressOf cell_FramesRequested
      AddHandler FormClosing, AddressOf MedicalViewerLocalizer_FormClosing
      cell.EnableLowMemoryUsage(2, count, imageInformation)

      _medicalViewer.Cells.Add(cell)

      ' add some actions that will be used to change the properties of the images inside the control.
      cell.AddAction(MedicalViewerActionType.WindowLevel)
      cell.AddAction(MedicalViewerActionType.Alpha)
      cell.AddAction(MedicalViewerActionType.Offset)

      ' assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
      cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active)
      cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)
      cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active)

      cell.ReferenceLine.Enabled = True
      cell.ReferenceLine.Color = Color.Yellow
      cell.ShowCellBoundaries = True

      ' adjust some properties of the cell and add some tags.
      _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448")
      _medicalViewer.Cells(0).SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame)
      _medicalViewer.Cells(0).SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale)
      _medicalViewer.Cells(0).SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData)
      _medicalViewer.Cells(0).SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView)

      cell.PixelSpacing = output.Stacks(0).PixelSpacing

      index = 0
      Do While index < count
         cell.SetImagePosition(index, output.Stacks(0).Items(index).ImagePosition, (index = count - 1))
         index += 1
      Loop
      cell.ImageOrientation = output.Stacks(0).Items(0).ImageOrientationArray
      cell.FrameOfReferenceUID = output.Stacks(0).Items(0).FrameOfReferenceUID

      Dim width As Integer = cell.VirtualImage(cell.ActiveSubCell).Image.Width
      Dim height As Integer = cell.VirtualImage(cell.ActiveSubCell).Image.Height



      Controls.Add(_medicalViewer)
      _medicalViewer.Dock = DockStyle.Fill
      DicomEngine.Shutdown()

      ' create a new polygon
      Dim polygon As MedicalViewerMPRPolygon = New MedicalViewerMPRPolygon()

      ' set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
      polygon.Points.Add(New PointF(width * 1 \ 4, height * 3 \ 4))
      polygon.Points.Add(New PointF(width * 1 \ 4, height * 1 \ 4))
      polygon.Points.Add(New PointF(width * 3 \ 4, height * 1 \ 4))
      polygon.Points.Add(New PointF(width * 3 \ 4, height * 3 \ 4))


      ' now add this polygon you prepared to the cell.
      cell.Polygons.Add(polygon)

      ' This event is important, because it's used to request the data that is need to create the internal panoramic data.
      AddHandler cell.PanoramicDataRequested, AddressOf cell_PanoramicDataRequested

      ' This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
      AddHandler cell.Data3DRequested, AddressOf cell_Data3DRequested

      ' Dispose the internal data automatically if the use decided to delete the polygon.
      cell.AutoDisposeInternalData = True

      ' register the polygon click
      AddHandler cell.MPRPolygonClicked, AddressOf cell_MPRPolygonClicked

      CreatePanoramicCell(cell, polygon)
      polygon.Recalculate()
   End Sub

   Private Sub cell_Data3DRequested(ByVal sender As Object, ByVal e As MedicalViewerData3DRequestedEventArgs)
      e.Succeed = Medical3DEngine.Provide3DInformation(e)
   End Sub

   Private Sub CreatePanoramicCell(ByVal cellSource As MedicalViewerMultiCell, ByVal polygon As MedicalViewerMPRPolygon)
      ' create a new panoramic cell assigned to the polygon you created.
      Dim cell As MedicalViewerPanoramicCell = New MedicalViewerPanoramicCell(polygon)

      ' add some action, not necessary though.
      cell.AddAction(MedicalViewerActionType.WindowLevel)
      cell.AddAction(MedicalViewerActionType.Scale)
      cell.AddAction(MedicalViewerActionType.Offset)
      cell.AddAction(MedicalViewerActionType.Stack)
      cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells Or MedicalViewerActionFlags.RealTime)
      cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active)
      cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active)

      ' Add the panoramic cell the viewer.
      _medicalViewer.Cells.Add(cell)

      ' Create a paraxial cell, and assign it to the polygon you just created.
      Dim paraxialCell As MedicalViewerParaxialCutCell = New MedicalViewerParaxialCutCell(polygon, 0)

      ' set the distance and the length of the paraxial cuts.
      paraxialCell.ParaxialDistance = 20
      paraxialCell.ParaxialLength = 200

      ' Add the paraxial cuts to the viewer.
      _medicalViewer.Cells.Add(paraxialCell)
   End Sub

   Private Sub cell_MPRPolygonClicked(ByVal sender As Object, ByVal e As MedicalViewerMPRPolygonClickedEventsArgs)
      Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)
      Dim paraxialCell As MedicalViewerParaxialCutCell = CType(_medicalViewer.Cells(2), MedicalViewerParaxialCutCell)

      ' if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
      If (e.Button = MouseButtons.Left) AndAlso e.Type = MedicalViewerMPRPolygonHitTest.Body Then
         paraxialCell.PolygonLineIndex = e.Index
      End If
   End Sub


   Private Sub cell_PanoramicDataRequested(ByVal sender As Object, ByVal e As MedicalViewerPanoramicDataRequestedEventArgs)
      ' get the cell that requested the MPR data.
      Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)

      ' instantiate a new raster codecs, which will be used to load the requested image.
      Dim _codecs As RasterCodecs = New RasterCodecs()

      ' the file name of the images loaded in the original cell.
      Dim fileName As String = CStr(_seriesManager.Stacks(0).Items(e.FrameIndex).Data)

      ' load the image and set it to e.Frame.
      e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1)
   End Sub

   Private Sub MedicalViewerLocalizer_FormClosing(ByVal sender As Object, ByVal e As FormClosingEventArgs)
   End Sub

   Private Sub cell_FramesRequested(ByVal sender As Object, ByVal e As MedicalViewerRequestedFramesInformationEventArgs)
      Dim cell As MedicalViewerMultiCell = CType(sender, MedicalViewerMultiCell)
      Dim _codecs As RasterCodecs = New RasterCodecs()
      Dim i As Integer
      Dim image As RasterImage
      Dim fileName As String

      If e.RequestedFramesIndexes.Length > 0 Then
         fileName = CStr(_seriesManager.Stacks(0).Items(e.RequestedFramesIndexes(0)).Data)
         image = _codecs.Load(fileName)
      Else
         Return
      End If

      i = 1
      Do While i < e.RequestedFramesIndexes.Length
         fileName = CStr(_seriesManager.Stacks(0).Items(e.RequestedFramesIndexes(i)).Data)
         image.AddPage(_codecs.Load(fileName))
         i += 1
      Loop

      cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert)
   End Sub

   Public ReadOnly Property Viewer() As MedicalViewer
      Get
         Return _medicalViewer
      End Get
   End Property
End Class

Private Function GetMedicalViewerMPRPolygonForm() As MedicalViewerMPRPolygonForm
   Dim form As MedicalViewerSeriesManagerFrom = New MedicalViewerSeriesManagerFrom()
   Dim output As MedicalViewerSeriesManager = form.LoadJamesHead()

   Return New MedicalViewerMPRPolygonForm(output)
End Function

' This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.
<TestMethod()> _
Public Sub MedicalViewerMPRPolygonExample()
   Dim myForm As MedicalViewerMPRPolygonForm = GetMedicalViewerMPRPolygonForm()
   Dim medicalViewer As MedicalViewer = myForm.Viewer

   myForm.ShowDialog()
End Sub
using Leadtools;
using Leadtools.Dicom;
using Leadtools.Medical3D;
using Leadtools.Codecs;
using Leadtools.MedicalViewer;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Annotations.Core;
using Leadtools.Annotations.Designers;

class MedicalViewerMPRPolygonForm : Form
{
   private MedicalViewer _medicalViewer;
   private MedicalViewerSeriesManager _seriesManager;
   void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
   {
      _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
   }

   public MedicalViewerMPRPolygonForm(MedicalViewerSeriesManager output)
   {
      DicomEngine.Startup();
      RasterCodecs _codecs = new RasterCodecs();

      this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);

      // Create the medical viewer and adjust the size and the location.
      _medicalViewer = new MedicalViewer(1, 2);
      _medicalViewer.Location = new Point(0, 0);
      _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);

      _seriesManager = output;

      MedicalViewerMultiCell cell = new MedicalViewerMultiCell(null, true, 1, 1);

      int index;
      int count = output.Stacks[0].Items.Count;
      CodecsImageInfo codecsInformation;

      MedicalViewerImageInformation[] imageInformation = new MedicalViewerImageInformation[count];

      for (index = 0; index < count; index++)
      {
         codecsInformation = _codecs.GetInformation((string)(output.Stacks[0].Items[index].Data), true);

         imageInformation[index] = new MedicalViewerImageInformation();
         imageInformation[index].ImageHeight = codecsInformation.Width;
         imageInformation[index].ImageWidth = codecsInformation.Width;
         imageInformation[index].XResolution = codecsInformation.XResolution;
         imageInformation[index].YResolution = codecsInformation.YResolution;
      }

      cell.FramesRequested += new EventHandler<MedicalViewerRequestedFramesInformationEventArgs>(cell_FramesRequested);
      FormClosing += new FormClosingEventHandler(MedicalViewerLocalizer_FormClosing);
      cell.EnableLowMemoryUsage(2, count, imageInformation);

      _medicalViewer.Cells.Add(cell);

      // add some actions that will be used to change the properties of the images inside the control.
      cell.AddAction(MedicalViewerActionType.WindowLevel);
      cell.AddAction(MedicalViewerActionType.Alpha);
      cell.AddAction(MedicalViewerActionType.Offset);

      // assign the added actions to a mouse button, meaning that when the user clicks and drags the mouse button, the associated action will be activated.
      cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
      cell.SetAction(MedicalViewerActionType.Alpha, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
      cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);

      cell.ReferenceLine.Enabled = true;
      cell.ReferenceLine.Color = Color.Yellow;
      cell.ShowCellBoundaries = true;

      // adjust some properties of the cell and add some tags.
      _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
      _medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
      _medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
      _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
      _medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);

      cell.PixelSpacing = output.Stacks[0].PixelSpacing;

      for (index = 0; index < count; index++)
      {
         cell.SetImagePosition(index, output.Stacks[0].Items[index].ImagePosition, (index == count - 1));
      }
      cell.ImageOrientation = output.Stacks[0].Items[0].ImageOrientationArray;
      cell.FrameOfReferenceUID = output.Stacks[0].Items[0].FrameOfReferenceUID;

      int width = cell.VirtualImage[cell.ActiveSubCell].Image.Width;
      int height = cell.VirtualImage[cell.ActiveSubCell].Image.Height;



      Controls.Add(_medicalViewer);
      _medicalViewer.Dock = DockStyle.Fill;
      DicomEngine.Shutdown();

      // create a new polygon
      MedicalViewerMPRPolygon polygon = new MedicalViewerMPRPolygon();

      // set some point, here we created a polygon that resembles a rectangle with a missing bottom line.
      polygon.Points.Add(new PointF(width * 1 / 4, height * 3 / 4));
      polygon.Points.Add(new PointF(width * 1 / 4, height * 1 / 4));
      polygon.Points.Add(new PointF(width * 3 / 4, height * 1 / 4));
      polygon.Points.Add(new PointF(width * 3 / 4, height * 3 / 4));


      // now add this polygon you prepared to the cell.
      cell.Polygons.Add(polygon);

      // This event is important, because it's used to request the data that is need to create the internal panoramic data.
      cell.PanoramicDataRequested += new EventHandler<MedicalViewerPanoramicDataRequestedEventArgs>(cell_PanoramicDataRequested);

      // This event communicate with the Medical3D dll which contains all the internal panormaic calculations.
      cell.Data3DRequested += new EventHandler<MedicalViewerData3DRequestedEventArgs>(cell_Data3DRequested);

      // Dispose the internal data automatically if the use decided to delete the polygon.
      cell.AutoDisposeInternalData = true;

      // register the polygon click
      cell.MPRPolygonClicked += new EventHandler<MedicalViewerMPRPolygonClickedEventsArgs>(cell_MPRPolygonClicked);

      CreatePanoramicCell(cell, polygon);
      polygon.Recalculate();
   }

   void cell_Data3DRequested(object sender, MedicalViewerData3DRequestedEventArgs e)
   {
      e.Succeed = Medical3DEngine.Provide3DInformation(e);
   }

   void CreatePanoramicCell(MedicalViewerMultiCell cellSource, MedicalViewerMPRPolygon polygon)
   {
      // create a new panoramic cell assigned to the polygon you created.
      MedicalViewerPanoramicCell cell = new MedicalViewerPanoramicCell(polygon);

      // add some action, not necessary though.
      cell.AddAction(MedicalViewerActionType.WindowLevel);
      cell.AddAction(MedicalViewerActionType.Scale);
      cell.AddAction(MedicalViewerActionType.Offset);
      cell.AddAction(MedicalViewerActionType.Stack);
      cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.AllCells | MedicalViewerActionFlags.RealTime);
      cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);
      cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);

      // Add the panoramic cell the viewer.
      _medicalViewer.Cells.Add(cell);

      // Create a paraxial cell, and assign it to the polygon you just created.
      MedicalViewerParaxialCutCell paraxialCell = new MedicalViewerParaxialCutCell (polygon, 0);

      // set the distance and the length of the paraxial cuts.
      paraxialCell.ParaxialDistance = 20;
      paraxialCell.ParaxialLength = 200;

      // Add the paraxial cuts to the viewer.
      _medicalViewer.Cells.Add(paraxialCell);
   }

   void cell_MPRPolygonClicked(object sender, MedicalViewerMPRPolygonClickedEventsArgs e)
   {
      MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;
      MedicalViewerParaxialCutCell paraxialCell = (MedicalViewerParaxialCutCell)_medicalViewer.Cells[2];

      // if the user clicks on other polygon lines, the paraxial cut will be assigned to that line
      if ((e.Button == MouseButtons.Left) && e.Type == MedicalViewerMPRPolygonHitTest.Body)
      {
         paraxialCell.PolygonLineIndex = e.Index;
      }
   }


   void cell_PanoramicDataRequested(object sender, MedicalViewerPanoramicDataRequestedEventArgs e)
   {
      // get the cell that requested the MPR data.
      MedicalViewerMultiCell cell = (MedicalViewerMultiCell)sender;

      // instantiate a new raster codecs, which will be used to load the requested image.
      RasterCodecs _codecs = new RasterCodecs();

      // the file name of the images loaded in the original cell.
      String fileName = (string)(_seriesManager.Stacks[0].Items[e.FrameIndex].Data);

      // load the image and set it to e.Frame.
      e.Frame = _codecs.Load(fileName, 0, CodecsLoadByteOrder.BgrOrGrayOrRomm, e.FrameIndex + 1, e.FrameIndex + 1);
   }

   void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
   {
   }

   void cell_FramesRequested(object sender, MedicalViewerRequestedFramesInformationEventArgs e)
   {
      MedicalViewerMultiCell cell = (MedicalViewerMultiCell)(sender);
      RasterCodecs _codecs = new RasterCodecs();
      int i;
      RasterImage image;
      string fileName;

      if (e.RequestedFramesIndexes.Length > 0)
      {
         fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[0]].Data);
         image = _codecs.Load(fileName);
      }
      else
         return;

      for (i = 1; i < e.RequestedFramesIndexes.Length; i++)
      {
         fileName = (string)(_seriesManager.Stacks[0].Items[e.RequestedFramesIndexes[i]].Data);
         image.AddPage(_codecs.Load(fileName));
      }

      cell.SetRequestedImage(image, e.RequestedFramesIndexes, MedicalViewerSetImageOptions.Insert);
   }

   public MedicalViewer Viewer
   {
      get { return _medicalViewer; }
   }
}

MedicalViewerMPRPolygonForm GetMedicalViewerMPRPolygonForm()
{
   MedicalViewerSeriesManagerFrom form = new MedicalViewerSeriesManagerFrom();
   MedicalViewerSeriesManager output = form.LoadJamesHead();

   return new MedicalViewerMPRPolygonForm(output);
}

// This example changes the default window level value by decrease the width by 100. Then resets the images based on the new value.
[TestMethod]
public void MedicalViewerMPRPolygonExample()
{
   MedicalViewerMPRPolygonForm myForm = GetMedicalViewerMPRPolygonForm();
   MedicalViewer medicalViewer = myForm.Viewer;

   myForm.ShowDialog();
}
Requirements

Target Platforms

See Also

Reference

MedicalViewerPanoramicCell Members
Leadtools.MedicalViewer Namespace

Error processing SSI file
Leadtools.MedicalViewer requires a Medical Imaging license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
