AutoColorLevelCommand Class

C#
Visual Basic
WinRT C#
Java
Objective-C
WinRT JavaScript
C++

public class AutoColorLevelCommand : Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

'Declaration

Public Class AutoColorLevelCommand
   Inherits Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.ImageProcessing.IRasterCommand

'Usage

Dim instance As AutoColorLevelCommand

public sealed class AutoColorLevelCommand : Leadtools.ImageProcessing.IRasterCommand

@interface LTAutoColorLevelCommand : LTRasterCommand

public class AutoColorLevelCommand extends RasterCommand

function Leadtools.ImageProcessing.Color.AutoColorLevelCommand()

public ref class AutoColorLevelCommand : public Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

This command makes the dark values darker and the light values lighter, which automatically enhances shadows and brightens the image. It also maximizes the tonal range of the image. It enhances the contrast and intensity using the image's histogram and a color distribution-based algorithm.
The properties in the AutoColorLevelCommand Class will be updated with the MinimumInput, MaximumInput, MinimumOutput, MaximumOutput and Gamma values used by a method for the appropriate channel(s).
If you set the AutoColorLevelCommandFlags.NoProcess flag in the Flag property, the ColorLevelCommandData will be updated with the color leveling information used by the AutoColorLevelCommand. If you then pass the updated ColorLevelCommandData structures to the ColorLevelCommand, you will obtain the same result that you would have obtained if you had called the AutoColorLevelCommand with the leveling flag by itself.
If the image is a grayscale image, then AutoColorLevelCommandType.Level, AutoColorLevelCommandType.Contrast and AutoColorLevelCommandType.Intensity give identical results. Also the Master, Red, Green and Blue properties will have the same values.
As an example, the following figure shows an image before any automatic color leveling has been performed:

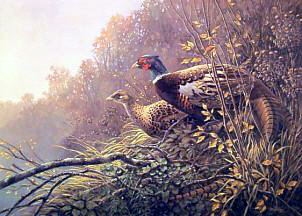

The following figure shows what would happen if you start with the original image and apply the AutoColorLevelCommand using AutoColorLevelCommandType.Level flag.

The following figure shows what would happen if you start with the original image and apply the AutoColorLevelCommand using AutoColorLevelCommandType.Intensity flag.

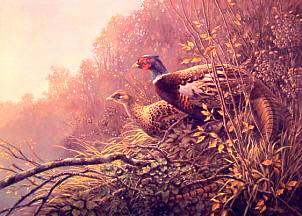

The following figure shows what would happen if you start with the original image and apply the AutoColorLevelCommand using AutoColorLevelCommandType.Contrast flag.
This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the (Document/Medical toolkits.
This command supports unsigned data images, but not signed ones.
This command does not support 32-bit grayscale images.

For more information, refer to Correcting Colors.

Run the AutoColorLevelCommand on an image.

C#
Visual Basic
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Color


Public Sub AutoColorLevelCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True
   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\\Image1.jpg"))

   ' Prepare the command
   Dim command As AutoColorLevelCommand = New AutoColorLevelCommand
   ' Apply "Auto Leveling" to the image.
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Color;


public void AutoColorLevelCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;
   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\Image1.jpg"));

   // Prepare the command
   AutoColorLevelCommand command = new AutoColorLevelCommand();
   // Apply "Auto Leveling" to the image.
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Color;


public async Task AutoColorLevelCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;
   // Load the image
   string srcFileName = @"Assets\Image1.cmp";
   StorageFile loadFile = await Tools.AppInstallFolder.GetFileAsync(srcFileName);
   RasterImage image = await codecs.LoadAsync(LeadStreamFactory.Create(loadFile));

   // Prepare the command
   AutoColorLevelCommand command = new AutoColorLevelCommand();
   // Apply "Auto Leveling" to the image.
   command.Run(image);

   string destFileName = @"result.jpg";
   StorageFile saveFile = await Tools.AppLocalFolder.CreateFileAsync(destFileName);
   await codecs.SaveAsync(image, LeadStreamFactory.Create(saveFile), RasterImageFormat.Jpeg, 0);
}

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Color;
using Leadtools.Examples;

public void AutoColorLevelCommandExample(RasterImage image, Stream outStream)
{
   // Prepare the command
   AutoColorLevelCommand command = new AutoColorLevelCommand();
   // Apply "Auto Leveling" to the image.
   command.Run(image);
   // Save result image
   RasterCodecs codecs = new RasterCodecs();
   codecs.Save(image, outStream, RasterImageFormat.Jpeg, 24);
   image.Dispose();
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Color

Public Sub AutoColorLevelCommandExample(ByVal image As RasterImage, ByVal outStream As Stream)
   ' Prepare the command
   Dim command As AutoColorLevelCommand = New AutoColorLevelCommand()
   ' Apply "Auto Leveling" to the image.
   command.Run(image)
   ' Save result image
   Dim codecs As RasterCodecs = New RasterCodecs()
   codecs.Save(image, outStream, RasterImageFormat.Jpeg, 24)
   image.Dispose()
End Sub
