Files for redistribution are installed by the LEADTOOLS setup. For information on the installation directory structure, refer to Installation Directory.

Prerequisite

Leadtools.dll

LEADTOOLS Raster Imaging core classes, structures, and interfaces. Required for all applications.

Release Notes

Title Details

Copying or Redistributing files

You may not copy or redistribute any of the following files without obtaining the proper license. In some cases, the license is included with your initial purchase of LEADTOOLS. In other cases, you must obtain a license from a third party or enter into a royalty agreement with LEAD to obtain the proper license. For these special licensing situations, see the notes below accompanying the specific file.

Header Files

You may not distribute the header files with your application, and you may not provide software development capabilities in your application.

Runtime Files Requirements in .NET 2.0 or later

LEADTOOLS binaries for .NET 2.0-3.5 require redistributing Microsoft Visual C++ 2008 runtime files.
LEADTOOLS binaries for .NET 4.0 require redistributing Microsoft Visual C++ 2010 runtime files.

Runtime Files Requirements in Silverlight, Windows Phone, and WinRT

 Microsoft's default deployment binaries are required. However, the Microsoft C/C++ Runtime files are not required.

Files to be distributed

The following tables summarize the files you must include when you distribute your application in order to support the LEADTOOLS methods. Most files in the table are optional.

File names

Unless otherwise noted, the file names are the same for both Win32, x64, Silverlight and Windows Phone platforms.

"Nag" message

For information about the "nag" message and runtime licenses, refer to LEADTOOLS Nag Message.

Making DLLs available to your application

Make the DLLs in the LEADTOOLS Library available to your application in one of two ways:

Install the DLLs in the application's directory

OR

Install them in the Global Assembly Cache (GAC). For more information on this method, refer to The Microsoft Gacutil Tool.

OCR Support

Note

Before copying or redistributing any of the files for OCR support, you must first enter into a Royalty Agreement with LEAD. Contact the OEM Department.

For details, refer to OCR Files to be Included with Your Application.



Redistributables

Redistributables Explanation
Leadtools.AddIn.BrokerHost.dll

PACS Framework Server Add-in that hosts the LEADTOOLS Modality Worklist WCF service.

Also requires Leadtools.dll, Leadtools.Dicom.dll, Leadtools.Dicom.AddIn.dll, Leadtools.Dicom.Common.dll, Leadtools.Dicom.Scu.dll, Leadtools.Logging.dll and Leadtools.Medical.Worklist.Wcf.dll.
Leadtools.AddIn.Router.dll (Deprecated)

Use the LEADTOOLS Rules Add-in, which offers a more powerful and flexible alternative, instead. Adds DICOM routing support to a PACS Framework server.
Leadtools.AddIn.StoreProxy.dll (Deprecated) Use the LEADTOOLS Rules Add-in, which offers a more powerful and flexible alternative, instead. Provides a storage proxy for an existing DICOM Server. This allows you to use the PACS Framework routing ability but use a different DICOM server implementation.
Leadtools.Annotations.dll (Deprecated)

[Deprecated, use Leadtools.Annotations.Core instead.]

Required for Annotation support.

Also requires the following:

Support Assembly
Required for loading and saving annotations compatible with non-.NET LEADTOOLS toolkits. Leadtools.Kernel.Annotations.dll
Leadtools.Annotations.Automation.dll

Required for implementing high-level automated mode annotations (with end-user interaction).
Leadtools.Annotations.Core.dll

The base class for all LEADTOOLS Annotation objects. This class (along with the other classes from the Leadtools.Annotations namespace), provides low-level annotation functionality.

Also requires the following:

Support Assembly

Required by the \Examples\DotNet\CS\AnnConversionDemo demo in order to convert old annotation formats (WPF, .NET, C API, and Silverlight) to the format used by Leadtools.Annotations.Core.dll.

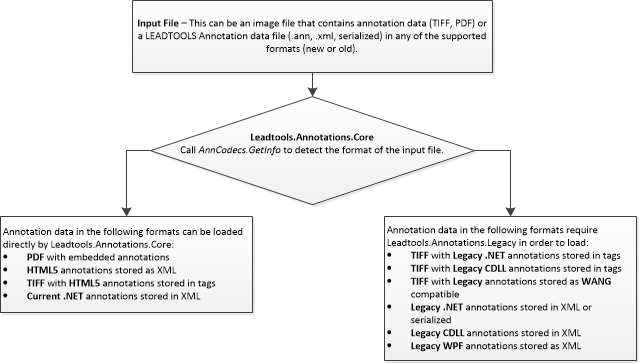

Leadtools.Annotations.Core.dll can load many types of annotations. However, certain formats require Leadtools.Annotations.Legacy.dll as well. See the following diagram.

 Leadtools.Annotations.Legacy.dll
Leadtools.Annotations.Designers.dll

Required for building Edit Mode and Run Mode designers for annotation objects.
Leadtools.Annotations.Documents.dll

Required to implement extra document annotation features such as converting to or from PDF annotations and creating Bates numbering stamp annotations.
Leadtools.Annotations.Rendering.WinForms.dll

Annotation object renderers for the Windows Forms platform.
Leadtools.Annotations.Rendering.Wpf.dll

Annotation object renderers for the WPF platform.
Leadtools.Annotations.Rendering.WinRTPhone.dll

Annotation object renderers for the WinRT Phone platform.
Leadtools.Annotations.UserMedicalPack.WinForms.dll

Contains custom medical objects with full implementation of objects, designers and renderers. Implementation is based on Basic Annotation features for the Windows Forms platform.
Leadtools.Annotations.UserMedicalPack.WPF.dll

Contains custom medical objects with full implementation of objects, designers and renderers. Implementation is based on Basic Annotation features for the WPF platform. Example source code can be found at Examples\DotNet3\CS\Leadtools.Annotations.UserMedicalPack.
Leadtools.Annotations.UserMedicalPack.WinRT.dll

Contains custom medical objects with full implementation of objects, designers and renderers. Implementation is based on Basic Annotation features for the WinRT platform. Example source code can be found at Examples\WinRT\CS\Leadtools.Annotations.UserMedicalPack.
Leadtools.Annotations.UserMedicalPack.WinRTPhone.dll

Contains custom medical objects with full implementation of objects, designers and renderers. Implementation is based on Basic Annotation features for the WinRT Phone platform. Example source code can be found at Examples\WinRTPhone\CS\Leadtools.Annotations.UserMedicalPack.
Leadtools.Annotations.WinForms.dll

Includes both a customized automation viewer and an automation interactive mode, in addition to an automation manager helper and user interface dialogs(WinForms version). Example source code can be found at Examples\DotNet\CS\Leadtools.Annotations.Winforms.
Leadtools.Annotations.WinRT.dll

Includes both a customized automation viewer and an automation interactive mode, in addition to an automation manager helper and user interface dialogs(WinRT version). Example source code can be found at Examples\WinRT\CS\Leadtools.Annotations.WinRT.
Leadtools.Annotations.WinRTPhone.dll

Includes both a customized automation viewer and an automation interactive mode, in addition to an automation manager helper and user interface dialogs(WinRTPhone version). Example source code can be found at Examples\WinRTPhone\CS\Leadtools.Annotations.WinRTPhone.
Leadtools.Annotations.Wpf.dll

Includes both a customized automation viewer and an automation interactive mode, in addition to an automation manager helper and user interface dialogs(WPF version). Example source code can be found at Examples\DotNet3\CS\Leadtools.Annotations.Wpf.
Leadtools.Caching.dll

Caching support - used by the Documents Library.
Leadtools.Ccow.dll

Required in order to integrate clinical context object workgroup protocols.
Leadtools.Ccow.Server.dll

Functions to integrate clinical context object workgroup protocols.
Leadtools.Ccow.Services.dll

Functions to integrate web clinical context object workgroup protocols.
Leadtools.Codecs.dll

Required for reading and writing image files. See below for information on individual codec DLLs.

Also requires Leadtools.Codecs.Xmp.dll to call the XMP metadata functions.
Leadtools.ColorConversion.dll

Required for Colorspace conversion and for some file formats.
This DLL is also required for loading JPEG CMYK images and for loading and saving PDF and JPEG LAB images.
Leadtools.Converters.dll

Required for loading/saving image and non-image data to the multiple image file formats supported by LEADTOOLS.
Leadtools.Controls.WinForms.dll

Required for displaying images in Windows Forms applications including support for zooming, panning, scrolling, etc.
Leadtools.Controls.dll

Required for displaying images in a WinRT (Windows Store) application including support for zooming, panning, scrolling, etc.
Leadtools.Controls.Wpf.dll

Required to provide Leadtools.Controls.dll with WPF support.
Leadtools.CreditCards.dll

Required for support for scanning credit cards. Also requires Leadtools.dll and Leadtools.Forms.Recognition.dll
Leadtools.Dicom.dll

Required for DICOM and DICOM communication support ( PACS).

Also requires the following:

Support Win32 Platforms x64 Platforms Silverlight and Windows Phone
DICOM Tables: Required unless the tables are programmatically loaded. Leadtools.Dicom.Tables.dll Leadtools.Dicom.Tables.dll Leadtools.Dicom.Tables.dll
JPEG Compression Leadtools.Codecs.Cmp.dll Leadtools.Codecs.Cmp.dll Leadtools.Codecs.Cmp.dll
JPEG 2000 Compression Leadtools.Codecs.J2k.dll Leadtools.Codecs.J2k.dll Leadtools.Codecs.J2k.dll
TLS secure communication Lttlsu.dll Lttlsx.dll Not Supported
Digital Signatures and TLS secure communication Ltcryu.dll Ltcryx.dll Not Supported
Required for reading and writing annotation data within DICOM files. Leadtools.Dicom.Annotations.dll Leadtools.Dicom.Annotations.dll Leadtools.Dicom.Annotations.dll
Leadtools.Dicom.Tables.dll Contains DICOM table data for UIDs, IODs, and Context Groups. Used by Leadtools.Dicom.dll. Include this DLL if you do not want to manually load/customize the DICOM tables. For more information, see the Working with DICOM Tables topic. Also requires Leadtools.Dicom.dll
Leadtools.Dicom.AddIn.dll Required for all creating PACS addins. For more information about the LEADTOOLS PACS Framework, refer to LEADTOOLS PACS Framework.
Also requires Leadtools.Dicom.dll, Leadtools.Dicom.Server.exe.
Leadtools.Dicom.Annotations.dll Required for reading and writing annotation data within DICOM files.
Also requires Leadtools.Dicom.dll.
Leadtools.Dicom.Annotations.Core.dll

Required in order to convert LEADTOOLS annotations to and from the DICOM format, to convert LEAD annotations to the DICOM annotation format, and to convert DICOM annotations to LEAD annotations.
Leadtools.Dicom.Common.dll

Contains extension methods and a DICOM editing namespace in order to make working with the LEADTOOLS DicomDataset class easier.
Also requires Leadtools.Dicom.dll.
Leadtools.Dicom.Networking.dll

A required DLL for WinRT/WinRTPhone. Required for DICOM communication support (PACS).
Leadtools.Dicom.Scp.dll Required for communicating with client-initiated C-FIND, C-MOVE, C-STORE, N-CREATE, or N-SET requests.
Also requires Leadtools.Dicom.dll.
Leadtools.Dicom.Scu.dll Required for high-level PACS SCU support. For more information about the LEADTOOLS PACS Framework, refer to LEADTOOLS PACS Framework.
Also requires Leadtools.Dicom.dll.
Leadtools.Dicom.Server.Admin.dll Required for all administration of PACS addins. For more information about the LEADTOOLS PACS Framework, refer to LEADTOOLS PACS Framework.
Also requires: Leadtools.Dicom.Server.exe, Leadtools.Dicom.AddIn.dll, Leadtools.Dicom.dll.
Leadtools.Dicom.Server.exe Windows Service EXE for LEADTOOLS PACS Framework.
Also requires Leadtools.Dicom.dll, Leadtools.Dicom.Server.Admin.dll, Leadtools.Dicom.AddIn.dll.
Leadtools.Documents.dll Documents library support.
Leadtools.Documents.Raster.dll Documents library Raster support.
Leadtools.Documents.Pdf.dll Documents library PDF support.
Leadtools.Documents.Converters.dll Documents Converter Library.
Leadtools.Documents.UI.dll Documents Viewer Library.
Leadtools.Drawing.dll Required in order to process images (or selected image portions).
It includes methods to control brightness, contrast, hue, saturation, intensity, etc.
Leadtools.Forms.dll Required for all Forms Recognition and Processing support.
Leadtools.Forms.Auto.dll Required for High-Level Forms Recognition support.
Also requires Leadtools.Forms.dll.
Leadtools.Forms.Commands.dll Required for High-Level Forms Recognition support.
Also requires Leadtools.Forms.dll
Leadtools.Forms.DocumentReaders.dll (Deprecated) [Deprecated. Use Leadtools.Documents instead.] Required for LEADTOOLS Document Readers support
Leadtools.Forms.DocumentReaders.Pdf.dll (Deprecated) Required for LEADTOOLS PDF Document Readers support
Also requires Leadtools.Pdf.dll *
Leadtools.Forms.DocumentReaders.Xps.dll (Deprecated) Required for LEADTOOLS XPS Document Readers support
Leadtools.Forms.DocumentReaders.Raster.dll (Deprecated) Required for LEADTOOLS Raster Document Readers support
Leadtools.Forms.DocumentWriters.dll Required for LEADTOOLS Document Writer support.
Also used by LEADTOOLS OCR for output support.
Note that if you are using the DOCX(2007/2010) format then the Microsoft Open XML SDK assembly DocumentFormat.OpenXml.dll is required to be installed on the user machine.

Also requires the following:
Leadtools.Annotations.Core.dll
Leadtools.Codecs.dll
Leadtools.ImageProcessing.Core.dll
Leadtools.ImageProcessing.Color.dll

Also requires the following file format DLLs:
Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Jb2.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Pnm.dll
Leadtools.Forms.Ocr.dll Required for incorporating document optical character recognition (OCR) technology into software applications. Also requires one or more of the LEADTOOLS OCR engine DLLs.
Leadtools.Forms.Processing.dll Required for all Forms Processing support.
Leadtools.Forms.Recognition.dll Required for all Forms Recognition support.
Leadtools.Forms.Recognition.Barcode.dll Required for Forms Barcode Recognition support. Also requires Leadtools.Barcode.dll. Also requires one or more of the Barcode engine DLLs.
Leadtools.Forms.Recognition.Ocr.dll Required for Forms Barcode Recognition support. Also requires Leadtools.Forms.Ocr.dll. Also requires one or more of the LEADTOOLS OCR engine DLLs.

Leadtools.ImageOptimization.dll

Required for Image Optimization support. This also requires one or more codec DLLs.
Leadtools.ImageProcessing.Color.dll Color Image Processing functions.
Also requires Leadtools.ImageProcessing.Utilities.dll.
Leadtools.ImageProcessing.Core.dll Core Image Processing functions.
Also requires Leadtools.ImageProcessing.Utilities.dll.
Leadtools.ImageProcessing.Effects.dll Image Effects Image Processing functions.
Also requires Leadtools.ImageProcessing.Utilities.dll.
Leadtools.ImageProcessing.SpecialEffects.dll Artistic Effects Image Processing functions.
Also requires Leadtools.ImageProcessing.Utilities.dll.
Leadtools.Jpeg2000.dll Required for all JPEG 2000 JPX applications.
Leadtools.Jpip.dll Required for all JPIP applications. Includes JPIP base classes.
Leadtools.Jpip.Client.dll Required for JPIP client applications. Also requires Leadtools.Jpip.dll and Leadtools.Jpip.Client.dll.
Leadtools.Jpip.Client.Decoder.dll JPIP decoder dll. Required for JPIP client applications.
Leadtools.Jpip.Client.WinForms.dll Provides a viewer control, classes and methods for JPIP clients. Also requires, Leadtools.WinForms.dll, Leadtools.Jpip.dll, Leadtools.Jpip.Client.dll and Leadtools.Jpip.Client.Decoder.dll.
Leadtools.Jpip.Server.dll Required for JPIP server applications. Also requires Leadtools.Jpip.dll and Leadtools.Jpip.Server.Parser.dll.
Leadtools.Jpip.Server.Parser.dll JPIP parser dll. Required for JPIP server applications.

Leadtools.Kernel.Annotations.dll

 Required for loading and saving annotations compatible with non-.NET LEADTOOLS toolkits.
Leadtools.Logging.dll Required for implementing logging in your applications.
Leadtools.Logging.Medical.dll Provides medical specific extensions to the logging framework. Also requires Leadtools.Logging.dll and Leadtools.Dicom.dll.

Leadtools.Mrc.dll

 Required for LEAD MRC segmentation support and advanced PDF compression support. This also requires one or more codec DLLs.
Leadtools.MediaWriter.dll Required to burn DVD and ISO images to a DVD disk. It contains classes for the MediaWriter objects needed to create and burn disc images. It is included in the LEADTOOLS DVD Module.
Also requires the following:
32-bit Platforms 64-bit Platforms
DSKERNEL2.DLL DSKERNEL2x.DLL
Note: You may not copy or redistribute any of the following files without obtaining the proper license. In some cases, the license is included with your initial purchase of LEADTOOLS. In other cases, you must obtain a license from a third party or enter into a royalty agreement with LEAD to obtain the proper license. For these special licensing situations, see the notes below accompanying the specific file.
Note: You may not distribute the header files with your application, and you may not provide software development capabilities in your application.
Leadtools.Medical.DataAccessLayer.dll Required in order to implement customizable Data Access objects that work with any data store.
Leadtools.Medical.ExternalStore.DataAccessLayer.dll Contains interfaces and classes for storing, querying and updating general External Store information.
Leadtools.MedicalViewer.dll Contains the Leadtools.MedicalViewer control class.
Also requires the Leadtools.Medical3D.dll.
Leadtools.Medical.Media.DataAccessLayer.dll Contains interfaces and classes for storing, querying and updating DICOM Media Creation Managements IOD.
Leadtools.Medical.Logging.DataAccessLayer.dll Required in order to store and access PACS Servers and client's event logs.
Leadtools.Medical.Storage.DataAccessLayer.dll Required in order to store, query and update general DICOM Composite Instances.
Leadtools.Medical.Worklist.Wcf.dll Provides the WCF services that interact with modality worklist databases.
Also requires Leadtools.dll, Leadtools.Dicom.dll, Leadtools.Dicom.AddIn.dll, Leadtools.Dicom.Common.dll, Leadtools.Logging.dll, Leadtools.Medical.DataAccessLayer.dll, Leadtools.Medical.Worklist.DataAccessLayer.dll
Leadtools.Medical.Workstation.dll Required for PACS Medical Workstation support. Also requires the Leadtools.Dicom.*.DLLs.
Leadtools.Medical.Workstation.Client.dll Required for PACS Medical Workstation support. Also requires the Leadtools.Dicom.*.DLLs.
Leadtools.Medical.Workstation.DataAccessLayer.dll Required for PACS Medical Workstation support. Also requires the Leadtools.Dicom.*.DLLs.
Leadtools.Medical.Workstation.Loader Required for PACS Medical Workstation support. Also requires the Leadtools.Dicom.*.DLLs.
Leadtools.Medical3D.dll Support DLL for Leadtools.MedicalViewer.dll.

Leadtools.Pdf.dll *

Required for Advanced PDF Features Support.

Leadtools.PdfCompressor.dll

Required for advanced PDF compression support. Also requires one or more codec DLLs and the following codec DLLs: Leadtools.Mrc.dll. Leadtools.ImageProcessing.Color.dll Leadtools.Pdf.dll * Leadtools.Codecs.Png.dll Leadtools.Codecs.Jb2.dll Leadtools.Codecs.Fax.dll Leadtools.Codecs.Raw.dll Leadtools.Codecs.Tif.dll Leadtools.Codecs.Cmp.dll
Leadtools.Printer.dll Required for Virtual Printer Driver functionality. Also requires the LEADTOOLS Virtual Printer Driver Engine Redistributable Files.
Leadtools.Printer.Client.dll Required for Virtual Printer Driver network printing functionality. Also requires the LEADTOOLS Virtual Printer Driver Engine Redistributable Files.
Leadtools.Printer.Client.Installer.dll Required for Virtual Printer Driver network printing functionality. Also requires the LEADTOOLS Virtual Printer Driver Engine Redistributable Files.
Leadtools.ScreenCapture.dll Required for Screen Capture functionality.
Leadtools.Services.dll Required for all LEADTOOLS WCF support. Also requires Leadtools.Codecs.dll and one or more codec DLLs.
Leadtools.Services.DataContracts.dll Required for all LEADTOOLS WCF support. Also requires Leadtools.Codecs.dll and one or more codec DLLs.
Leadtools.Services.Barcode.DataContracts.dll Required for LEADTOOLS WCF Barcode services. Also requires the LEADTOOLS Barcode engine.
Leadtools.Services.Barcode.ServiceContracts.dll Required for LEADTOOLS WCF Barcode services. Also requires the LEADTOOLS Barcode engine.
Leadtools.Services.Barcode.ServiceImplementations.dll Required for LEADTOOLS WCF Barcode services. Also requires the LEADTOOLS Barcode engine.
Leadtools.Services.Forms.DataContracts.dll Required for LEADTOOLS WCF OCR services. Also requires the LEADTOOLS OCR engine.
Leadtools.Services.Forms.ServiceContracts.dll Required for LEADTOOLS WCF OCR services. Also requires the LEADTOOLS OCR engine.
Leadtools.Services.Forms.ServiceImplementations.dll Required for LEADTOOLS WCF OCR services. Also requires the LEADTOOLS OCR engine.
Leadtools.Services.ImageProcessing.DataContracts.dll Required for LEADTOOLS WCF OCR services. Also requires Leadtools.ImageProcessing.*.dll.
Leadtools.Services.ImageProcessing.ServiceContracts.dll Required for LEADTOOLS WCF OCR services. Also requires Leadtools.ImageProcessing.*.dll.
Leadtools.Services.ImageProcessing.ServiceImplementations.dll Required for LEADTOOLS WCF OCR services. Also requires Leadtools.ImageProcessing.*.dll.
Leadtools.Services.Raster.DataContracts.dll Required for all LEADTOOLS WCF support. Also requires Leadtools.Codecs.dll and one or more codec DLLs.
Leadtools.Services.Raster.FaultContracts.dll Required for all LEADTOOLS WCF support. Also requires Leadtools.Codecs.dll and one or more codec DLLs.
Leadtools.Services.Raster.ServiceContracts.dll Required for all LEADTOOLS WCF support. Also requires Leadtools.Codecs.dll and one or more codec DLLs.
Leadtools.Services.Raster.ServiceImplementations.dll Required for all LEADTOOLS WCF support. Also requires Leadtools.Codecs.dll and one or more codec DLLs.
Leadtools.Service.Twain.dll Provides a set of web services to enable controlling Twain devices. Also requires Leadtools.dll, Leadtools.Codecs.dll, and Leadtools.Twain.dll.
Leadtools.SharePoint.Client.dll

Required for client access support to Microsoft SharePoint server.

Also requires the Microsoft SharePoint Foundation 2010 Client Object Model Redistributable (Microsoft.SharePoint.Client.dll and Microsoft.SharePoint.Client.Runtime.dll).
Leadtools.Silverlight.Demos.dll Provides common classes used by the LEADTOOLS Silverlight Demos. Source code for this can be found in \Examples\Silverlight\CS\Leadtools.Silverlight.Demos.
Leadtools.SpecialEffects.dll Required for display effects and transitions.
Leadtools.Svg.dll Required to add vector load, edit, save, conversion and display functionality to applications.
Leadtools.Twain.dll Required for TWAIN scanning support.
Leadtools.UserMapping.Agent.dll A sample assembly that implements a user mapping agent for the CCOW toolkit.
Leadtools.Vector.dll Required for vector file formats support.
Leadtools.Web.dll Required for WebForms applications. Some controls require that LEADTOOLS codec DLLs are available to your application.
For more information, refer to Leadtools.Web.Controls.BrowserImageFormat.
Leadtools.Wia.dll Required for WIA scanning support.
Leadtools.Windows.Annotations.dll (Deprecated)

[Deprecated. Use Leadtools.Annotations.Core instead.] Required for WPF Annotation support.

Also requires the following:

Support Assembly
Required for loading and saving annotations compatible with non-.NET LEADTOOLS toolkits. Leadtools.Kernel.Annotations.dll
Leadtools.Windows.Controls.dll Contains the ImageViewer control class.
For information about the "nag" message and runtime licenses, refer to LEADTOOLS Nag Message.
Leadtools.Windows.Media.dll Contains classes for converting Leadtools.RasterImage to System.Windows.Media.ImageSource.
Leadtools.Windows.Media.Effects.dll Required in order to apply Pixel Shader effects to WPF / Silverlight UI Elements.
Leadtools.Windows.Media.Transitions.dll Required for WPF slide show transition effects. Also requires Leadtools.Windows.Media.TransitionBase.dll.
Leadtools.Windows.Media.TransitionBase.dll Support dll for WPF slide show transition effects.
Leadtools.WinForms.dll Contains the RasterImageViewer control class.
Leadtools.WinForms.Design.dll Required only at design-time for Leadtools.WinForms.dll. Not to be distributed.
Leadtools.WinForms.CommonDialogs.Color.dll Required for the Color Image Processing common dialogs.
Leadtools.WinForms.CommonDialogs.File.dll Required for File Open and File Save common dialogs. Also requires LEADTOOLS codec DLLs.



Barcode Support:

Note: Before copying or redistributing any of the files for Barcode support, you must first enter into a Royalty Agreement with LEAD. Contact the OEM Department.

These DLLs need to be in the application directory or system PATH.

Redistributables Explanation
Leadtools.Barcode.dll, libleadtools.barcode.so (Android)

LEAD Barcode Assembly

Also requires one or more of the following:

Support Redistributables
Reading and Writing Linear barcodes Leadtools.Barcode.OneD.dll, libleadtools.barcode.oned.so (Android)
Reading PDF417 barcodes (2D) Leadtools.Barcode.PdfRead.dll, libleadtools.barcode.pdfread.so (Android)
Writing PDF417 barcodes (2D) Leadtools.Barcode.PdfWrite.dll, libleadtools.barcode.pdfwrite.so (Android)
Reading Data Matrix barcodes (2D) Leadtools.Barcode.DatamatrixRead.dll, libleadtools.barcode.datamatrixread.so (Android)
Writing Data Matrix barcodes (2D) Leadtools.Barcode.DatamatrixWrite.dll, libleadtools.barcode.datamatrixwrite.so (Android)
Reading QR barcodes (2D) Leadtools.Barcode.QrRead.dll, libleadtools.barcode.qrread.so (Android)
Writing QR barcodes (2D) Leadtools.Barcode.QrWrite.dll, libleadtools.barcode.qrwrite.so (Android)
Reading Aztec, Maxi and MicroQR barcodes (2D) Leadtools.Barcode.Lead2DRead.dll
Writing Aztec, Maxi and MicroQR barcodes (2D) Leadtools.Barcode.Lead2DWrite.dll



Distributed Computing (Job Processor) SDK Support:

Note: Before copying or redistributing any of the files for OCR support, you must first enter into a Royalty Agreement with LEAD. Contact the OEM Department.

Redistributable: Explanation:
Leadtools.Services.JobProcessor.DataContracts.dll Required for LEADTOOLS Distributed Computing (Job Processor) SDK WCF Services (JobService, WorkerService).
Leadtools.Services.JobProcessor.FaultContracts.dll Required for LEADTOOLS Distributed Computing (Job Processor) SDK WCF Services (JobService, WorkerService).
Leadtools.Services.JobProcessor.Job.dll Required for LEADTOOLS Distributed Computing (Job Processor) SDK support.
Leadtools.Services.JobProcessor.ServiceContracts.dll Required for LEADTOOLS Distributed Computing (Job Processor) SDK WCF Services (JobService, WorkerService).
Leadtools.Services.JobProcessor.ServiceImplementations.dll Required for LEADTOOLS Distributed Computing (Job Processor) SDK WCF Services (JobService, WorkerService).
Leadtools.JobProcessor.WorkerService.exe LEADTOOLS Distributed Computing (Job Processor) SDK worker windows service executable.
Leadtools.JobProcessor.WorkerLayer.exe LEADTOOLS Distributed Computing (Job Processor) SDK worker process executable.
Leadtools.JobProcessor.DataAccessLayer.dll LEADTOOLS Distributed Computing (Job Processor) SDK communication data access assembly.
Leadtools.JobProcessor.Worker.dll LEADTOOLS Distributed Computing (Job Processor) SDK worker assembly.
Leadtools.JobProcessor.Job.dll LEADTOOLS Distributed Computing (Job Processor) SDK job assembly.

For more information on deploying LEADTOOLS Distributed Computing (Job Processor) SDK, refer to Deploying LEADTOOLS Distributed Computing Applications.

DLL Name Description Location
Leadtools.DataAccessLayers.Core.dll Example project. Source Code

Built from the <LEADTOOLS_INSTALLDIR>\Examples\PACSFramework\CS\Leadtools.DataAccessLayers.Core project.

Binaries

<LEADTOOLS_INSTALLDIR>\Redist\DotNet\Win32\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Redist\DotNet\x64\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Redist\DotNet4\Win32\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Redist\DotNet4\x64\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Bin\DotNet\Win32\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Bin\DotNet\x64\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Bin\DotNet4\Win32\Leadtools.DataAccessLayers.Core.dll
<LEADTOOLS_INSTALLDIR>\Bin\DotNet4\x64\Leadtools.DataAccessLayers.Core.dll
Leadtools.Medical.Rules.AddIn.dll Allows scripts to interact with the DICOM Server request/response pipeline. Typical uses of this add-in are to pre-fetch certain types of images (i.e. modality and performed procedure) to certain specialty workstations (radiology reading station, 3D Visualization station etc.) or to forward images to an on call radiologist or specialty department. Additionally, if DICOM datasets require special tags to be added before storing this can also be accomplished with the Rules AddIn. Source code

\Examples\PACSFramework\CS\Leadtools.Medical.Rules.AddIn

Binaries

\Bin\Dotnet\Win32\Leadtools.Medical.Rules.AddIn.dll
\Bin\Dotnet\x64\Leadtools.Medical.Rules.AddIn.dll



File Format Support:
File Format Constant(s) Description Redistributables
Abc

Advanced Bitonal Compression (ABC) Format

 Leadtools.Codecs.Abc.dll
Abic

ABIC Format

Leadtools.Codecs.Abi.dll
Afp

AFP Format

Leadtools.Codecs.Afp.dll
AfpIm1

AFP IM1 Format

Leadtools.Codecs.Afp.dll
Leadtools.Codecs.Raw.dll
AfpIcaUncompressed

Image Object Content Architecture Format

 Leadtools.Codecs.Ica.dll
AfpIcaIbmMmr, AfpIcaG31Dim, AfpIcaG32Dim, AfpIcaG4

Image Object Content Architecture Format

Leadtools.Codecs.Ica.dll
Leadtools.Codecs.Fax.dll
Ani

Windows Animated Cursor

Leadtools.Codecs.Ani.dll
Anz

Mayo Clinic Analyze Format

Leadtools.Codecs.Anz.dll
Bmp, BmpRle

Windows Bitmap Format

Leadtools.Codecs.Bmp.dll

Cals , Cals2, Cals3, Cals4

CALS Raster Format

Leadtools.Codecs.Cal.dll
Leadtools.Codecs.Fax.dll
Cin

KODAK Cineon Format

 Leadtools.Codecs.Cin.dll
Clp, ClpRle

Microsoft Windows Clipboard Format

 Leadtools.Codecs.Clp.dll
Cmp

LEAD CMP Format

 Leadtools.Codecs.Cmp.dll
Cmw

LEAD Wavelet Format

 Leadtools.Codecs.Cmw.dll
CMX

Corel Presentation Exchange (CMX) Format

Leadtools.Codecs.Cmx.dll
Leadtools.Vector.dll
CGM

Computer Graphics Metafile (CGM) Format

Leadtools.Codecs.Cgm.dll
Leadtools.Vector.dll
Crw

Canon Raw Format

Leadtools.Codecs.Crw.dll
Leadtools.Codecs.Cmp.dll
Canon Runtime Files ***
Cut

Dr. Halo Format

 Leadtools.Codecs.Cut.dll
DcfArW

Sony Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfCasio

Casio Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfCr2

Canon Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfNef

Nikon Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfOrf

Olympus Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfPentax

Pentax Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfRaf

Fujifilm Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
DcfRw2

Panasonic Digital Camera Format (DCF)

 Leadtools.Codecs.Dcf.dll
Dcr

Kodak Professional Digital Camera Format

Leadtools.Codecs.Dcr.dll
DCSPROBACK.DLL
DCSPRO3SLR.DLL
DCSProductLook.icm
sRGB Color Space.icm
(Not supported for x64)
Dcs

Kodak Professional Digital Camera Format

Leadtools.Codecs.Dcs.dll
PDC_SDK.DLL
EKFPIXJPEG140.DLL
ProFire.DLL
(Not supported for x64)
DGN

DGN (DGN) Format

Leadtools.Codecs.Dgn.dll
Leadtools.Vector.dll
Dicom

DICOM File Format

Leadtools.Dicom.dll
Doc

Microsoft Office Word Document Format (read only)

 Leadtools.Codecs.Doc.dll

For embedded images, one or more of the following DLLs are required:

Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Wmf.dll
Docx(2007/2010)

Microsoft Office 2007/2010 Word Document Format (read only)

 The DOCX(2007/2010) file format requires .NET Framework v3.5.
Leadtools.Codecs.Dox.dll
DocumentFormat.OpenXml.dll(v2.0)

For embedded images, one or more of the following DLLs are required:

Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Wmf.dll
DRW

DRaWing (DRW) Format

Leadtools.Codecs.Drw.dll
Leadtools.Vector.dll
DWF

AutoCAD DWF (DWF) Format

Leadtools.Codecs.Dwf.dll
Leadtools.Vector.dll
Dwfx

Autodesk DWF XPS Format

 The Dwfx file format requires .NET Framework v3.5.
Leadtools.Codecs.Dxf.dll
DWG

AutoCAD DWG (DWG) Format

Leadtools.Codecs.Dwg.dll
Leadtools.Vector.dll
DXF

AutoCAD Drawing Interchange (DXF) Format

Leadtools.Codecs.Dxf.dll
Leadtools.Vector.dll
Ecw

Enhanced Compressed Wavelet Format

Leadtools.Codecs.Ecw.dll

Also requires the following:

Win32 Platforms: x64 Platforms:
NCScnet.dll NCScnetx.dll
NCSEcw.dll NCSEcwx.dll
NCSEcwC.dll NCSEcwCx.dll
NCSUtil.dll NCSUtilx.dll
E00

ArcInfo Interchange (E00) File Format

Leadtools.Codecs.E00.dll
Leadtools.Vector.dll
Emf Enhanced Windows Metafile

Leadtools.Codecs.Wmf.dll
Eps

Encapsulated PostScript

 Leadtools.Codecs.Eps.dll
EpsTiff

Encapsulated PostScript

Leadtools.Codecs.Eps.dll
Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
EpsWmf

Encapsulated PostScript

Leadtools.Codecs.Eps.dll
Leadtools.Codecs.Wmf.dll
EpsPostScript

Encapsulated PostScript

Leadtools.Codecs.Eps.dll
Leadtools.Pdf.dll *
Leadtools.PdfEngine.dll
PDF Runtime Files

Exif, ExifYcc, ExifJpeg411, ExifJpeg422

Exif Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Fax.dll

FaxG31Dim, FaxG32Dim, FaxG31DimNoEol, FaxG4

Raw FAX Formats

 Leadtools.Codecs.Fax.dll
Fit

Flexible Image Transport System Format

 Leadtools.Codecs.Fit.dll
Flc, Fli

Flic Animation

 Leadtools.Codecs.Flc.dll
Fpx
FpxSingleColor
FpxJpeg
FpxJpegQFactor

Kodak FlashPix Format

Leadtools.Codecs.Fpx.dll
Also requires the following:

Win32 Platforms: x64 Platforms:
Ltfpxu.dll Ltfpxx.dll
Ltkdku.dll Ltkdkx.dll
Gif

GIF Format

 Leadtools.Codecs.Gif.dll
GBR

Gerber (GBR)

Leadtools.Codecs.Gbr.dll
Leadtools.Vector.dll
Hdp
HdpGray
HdpCmyk

JPEG XR / Microsoft HD Photo File Format (HDP)

 Leadtools.Codecs.Hdp.dll

Htm

HTML Format

 Leadtools.Codecs.Htm.dll

IffIlbm, IffCat, IffIlbmUncompressed, IffCatUncompressed

Interchange File Format

 Leadtools.Codecs.Iff.dll

GEM Image Format

 Leadtools.Codecs.Img.dll
IntergraphRle, IntergraphCcittG4

Intergraph Format

Leadtools.Codecs.Itg.dll
Leadtools.Codecs.Fax.dll

IcaAbic

Image Object Content Architecture Format

 Leadtools.Codecs.Ica.dll
Leadtools.Codecs.Abi.dll

IcaIbmMmr, IcaUncompressed

Image Object Content Architecture Format

 Leadtools.Codecs.Ica.dll

IcaG31Dim, IcaG32Dim, IcaG4

Image Object Content Architecture Format

 Leadtools.Codecs.Ica.dll
Leadtools.Codecs.Fax.dll

IcaJpeg, IcaJpeg411, IcaJpeg422

Image Object Content Architecture Format

 Leadtools.Codecs.Ica.dll
Leadtools.Codecs.Cmp.dll

Ing, IngRle, IngAdRle, IngCg4

INGR File Format

 Leadtools.Codecs.Ing.dll
J2k, Jp2

JPEG 2000 Format

 Leadtools.Codecs.J2k.dll
Jls, JlsLine, JlsSample

JPEG-LS Lossless and Near Lossless.

 Leadtools.Codecs.Jls.dll Leadtools.ImageProcessing.Color.dll
Jpm

JPEG 2000 (Part 6) JPM Format

 Leadtools.Codecs.Jpm.dll
Jpx

JPEG 2000 (Part 2) JPX Format

 Leadtools.Jpeg2000.dll
Jbig2

JBIG2 Format

 Leadtools.Codecs.Jb2.dll
Jbig

JBIG Format

 Leadtools.Codecs.Jbg.dll
Jpeg, Jpeg411, Jpeg422, JpegRgb, JpegLab, JpegLab411, JpegLab422

JPEG File Interchange Format (Please note that Leadtools.ColorConversion.dll is required for loading JPEG CMYK images and for loading and saving JPEG LAB images.)

 Leadtools.Codecs.Cmp.dll
Jxr, JxrGray, JxrCmyk, Jxr420, Jxr422

JPEG-XR.

 Leadtools.Codecs.Jxr.dll

Kdc120, Kdc40, Kdc50

Kodak Digital Camera Format

 Leadtools.Codecs.Kdc.dll
DC120V154_32.DLL
(Not supported for x64)
LaserData

LaserView LaserData Format

 Leadtools.Codecs.Fax.dll
Lead1Bit

LEAD 1-bit Compressed Format

 Leadtools.Codecs.Lma.dll (optional, legacy use only)
Leadtools.Codecs.Lmb.dll
LeadMrc Mixed Raster Content Leadtools.Mrc.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Jbg.dll
Mac

Macintosh Paint Format

 Leadtools.Codecs.Mac.dll
MIF

MapInfo Interchange (MIF) File Format

 Leadtools.Codecs.MIF.dll
Mng, MngGray, MngJng, MngJng411, MngJng422

Multiple Network Graphics Format

 Leadtools.Codecs.Mng.dll
Leadtools.Codecs.Png.dll

Mob

Mobi File Format

 Leadtools.Codecs.Mob.dll
Msp

Microsoft Paint Format

 Leadtools.Codecs.Msp.dll

Mrc

Mixed Raster Content

Leadtools.Mrc.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Fax.dll
NAP

NAPLPS (NAP) Format

Leadtools.Codecs.Nap.dll
Leadtools.Vector.dll
Os2 Os22

OS/2 Bitmap Format

Leadtools.Codecs.Bmp.dll
PbmBinary, PbmAscii, PgmBinary, PgmAscii, PpmBinary, PpmAscii

Portable Bitmap Utilities Format

Leadtools.Codecs.Pnm.dll

Pcd

Kodak PhotoCD Format

 Leadtools.Codecs.Pcd.dll
PCDSDK32.dll
PCDLIB32.dll
(Not supported for x64)

PCL

Printer Command Language (PCL)/(PCL-XL) Format

Leadtools.Codecs.Pcl.dll
Leadtools.Vector.dll

Pct

Macintosh Pict

Leadtools.Codecs.Pct.dll

Pcx

ZSoft PCX Format

Leadtools.Codecs.Pcx.dll
PdfLeadMrc Mixed Raster Content

Leadtools.Mrc.dll
Leadtools.PdfCompressor.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Jb2.dll
Leadtools.Codecs.Raw.dll
Leadtools.Codecs.Fax.dll

Png

Portable Network Graphics Format

Leadtools.Codecs.Png.dll
PostScript

PostScript Document Format

Leadtools.Pdf.dll *

Also requires the following:

Win32 Platforms: x64 Platforms:
Leadtools.PdfEngine.dll Leadtools.PdfEngine.dll
PDF Runtime Files

Ppt

Microsoft Office PowerPoint Presentation Format

Leadtools.Codecs.Ppt.dll
Leadtools.ImageProcessing.Color.dll

For embedded images, the following are required:

Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Wmf.dll

Pptx(2007/2010)

Microsoft Office 2007/2010 PowerPoint Presentation Format

The PPTX(2007/2010) file format requires .NET Framework v3.5

DocumentFormat.OpenXml.dll(v2.0)

Leadtools.Codecs.Ppx.dll
Leadtools.ImageProcessing.Color.dll

For embedded images, the following are required:

Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Wmf.dll

Psd

PhotoShop 3.0 Format

Leadtools.Codecs.Psd.dll
Leadtools.ImageProcessing.Color.dll
Leadtools.ColorConversion.dll
Leadtools.ImageProcessing.Effects.dll

Pst, Msg, Eml

Personal Storage Tables, Messages and Emails

Leadtools.Codecs.Pst.dll
Leadtools.Codecs.Rtf.dll
Leadtools.Codecs.Htm.dll
Leadtools.Codecs.Txt.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Ptoca

Presentation Text Object Content Architecture Format

Leadtools.Codecs.Ptk.dll
Ras, RasRle

SUN Raster Format

Leadtools.Codecs.Ras.dll

Pub

ePub File Format

 Leadtools.Codecs.Pub.dll
RasPdf (Read Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.ColorConversion.dll
Leadtools.Codecs.Fax.dll

Also required in some situations (refer to Implementing PDF Features):

Win32 Platforms: x64 Platforms:
Leadtools.PdfEngine.dll ** Leadtools.PdfEngine.dll**

PDF Runtime Files
RasPdf (Write Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.ColorConversion.dll
Leadtools.Codecs.Fax.dll
RasPdfLzw (Write Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.ColorConversion.dll
Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll

RasPdfG31Dim, RasPdfG32Dim, RasPdfG4 (Write Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.ColorConversion.dll
Leadtools.Codecs.Fax.dll

RasPdfJbig2 (Write Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.ColorConversion.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Jb2.dll

RasPdfJpeg, RasPdfJpeg422, RasPdfJpeg411 (Write Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.ColorConversion.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Cmp.dll

RasPdfCmyk, RasPdfLzwCmyk (Write Support)

Portable Document Format (PDF)

Leadtools.Pdf.dll *
Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.ColorConversion.dll
RawIcaIbmMmr, RawIcaUncompressed

Image Object Content Architecture Format

Leadtools.Codecs.Ica.dll
RawIcaG31Dim, RawIcaG32Dim, RawIcaG4

Image Object Content Architecture Format

Leadtools.Codecs.Ica.dll
Leadtools.Codecs.Fax.dll

Raw, RaRgb, RawRle4, RawRle8, RawBitfields, RawPackBits, RawJpeg, RawCcitt

 Raw Image Data

Leadtools.Codecs.Raw.dll
Leadtools.Codecs.Fax.dll
RtfRaster

Rich Text Format

Leadtools.Codecs.Rtf.dll
Sct

Scitex Continuous Tone Format

Leadtools.Codecs.Sct.dll
Leadtools.ColorConversion.dll
Sff

Structured Fax Format

Leadtools.Codecs.Sff.dll
Leadtools.Codecs.Fax.dll
SHP

ESRI Shape (SHP) Format

Leadtools.Codecs.Shp.dll
Leadtools.Vector.dll
Sgi, SgiRle

Silicon Graphics Format

Leadtools.Codecs.Sgi.dll
Smp, SmpG31Dim, SmpG32Dim, SmpG4

Xionics Format

Leadtools.Codecs.Smp.dll
Leadtools.Codecs.Fax.dll
Snp

MS Access Report Snapshots Format

Leadtools.Codecs.Snp.dll
Leadtools.Codecs.Wmf.dll
SVG

Scalable Vector Graphics (SVG) Format

Leadtools.Svg.dll
Leadtools.Codecs.Svg.dll
Leadtools.Vector.dll
Tdb, TdbVista

Windows Thumbnail File Format

Leadtools.Codecs.Tdb.dll
Leadtools.Codecs.Cmp.dll
Tga, TgaRle

Truevision Targa Format

Leadtools.Codecs.Tga.dll
TifAbc TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Abc.dll
TifAbic

TIFF Tagged Image File Format

 Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Abi.dll
Tif, TifYcc, TifPackbits, TifPackbitsYcc, TifLzw, TifLzwYcc, GeoTiff, TifUnknown,

TIFF Tagged Image File Format

 Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll

Ccitt, CcittGroup31Dim, CcittGroup32Dim, CcittGroup4

 TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
TifCmw TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Cmw.dll
TifCmyk, TifPackbitsCmyk, TifLzwCmyk TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.ColorConversion.dll

TifJpeg, TifJpeg422, TifJpeg411, TifCmp

 TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Cmp.dll
TifJbig TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Jbg.dll
TifJbig2 TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Jb2.dll
TifZip TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.Png.dll
TifJ2k TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Leadtools.Codecs.J2k.dll
TifMrc TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Mrc.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Fax.dll
TifLeadMrc TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll
Leadtools.Mrc.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Jbg.dll
Leadtools.Codecs.Fax.dll
TifLead1Bit TIFF Tagged Image File Format

Leadtools.Codecs.Tif.dll

Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Jbg.dll
Leadtools.Codecs.Fax.dll
TifxFaxG4
TifxFaxG31Dim
TifxFaxG32Dim		 Xerox Internet Fax Format

Leadtools.Codecs.Tfx.dll
Leadtools.Codecs.Fax.dll
TifxJbig
TifxJbigT43
TifxJbigT43ItuLab
TifxJbigT43GS		 Xerox Internet Fax Format

Leadtools.Codecs.Tfx.dll
Leadtools.Codecs.Jbg.dll
TifxJpeg Xerox Internet Fax Format

Leadtools.Codecs.Tfx.dll
Leadtools.Codecs.Cmp.dll
Txt ASCII Text Files

Leadtools.Codecs.Txt.dll
Leadtools.Codecs.Rtf.dll
Vff Sun TAAC Bitmap Format Leadtools.Codecs.Vff.dll
Wbmp

Windows Bitmap Format

Leadtools.Codecs.Wmp.dll
WfxG31Dim, WfxG4

Delrina WinFax Format

Leadtools.Codecs.Wfx.dll
Leadtools.Codecs.Fax.dll
WinIco, PngIco, WinCur

Windows Icon and Cursor Format

 Leadtools.Codecs.Bmp.dll
Wmf

Windows Metafile

Leadtools.Codecs.Wmf.dll
Wmz

Compressed Windows Metafile Format

Leadtools.Codecs.Wmz.dll
Wpg

WordPerfect Graphic Format

Leadtools.Codecs.Wpg.dll
X9f

Image Cash Letter (X9) Format

Leadtools.Codecs.X9F.dll
Leadtools.Codecs.Tif.dll
Leadtools.Codecs.Fax.dll
Xbm

XWindows XBitMap Format

Leadtools.Codecs.Xbm.dll
Xls Microsoft Office Excel Format

Leadtools.Codecs.Xls.dll
Leadtools.ImageProcessing.Color.dll

For embedded images, the following are required:

Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Wmf.dll
Xlsx (2007/2010) Microsoft Office 2007/2010 Excel Format

The XLSX file format requires .NET Framework v3.5
Leadtools.Codecs.Xlx.dll
Leadtools.ImageProcessing.Color.dll
DocumentFormat.OpenXml.dll(v2.0)

For embedded images, the following are required:

Leadtools.Codecs.Bmp.dll
Leadtools.Codecs.Cmp.dll
Leadtools.Codecs.Gif.dll
Leadtools.Codecs.Png.dll
Leadtools.Codecs.Wmf.dll
Xpm

X Window PixMap Format

Leadtools.Codecs.Xpm.dll
Xps, XpsJpeg, XpsJpeg422, XpsJpeg411

XML Paper Specification (XPS) Format

Leadtools.Codecs.Xps.dll
Xwd10, Xwd11

X Window Dump Format

Leadtools.Codecs.Xwd.dll

Demo DLLs

Redistributables Description
Leadtools.Demos.Dialogs.dll Used as a reference in many example projects
Leadtools.Windows.D2DRendering.dll Used as a reference in many example projects.
Leadtools.Wpf.Demos.Dialogs.dll Used as a reference in many example projects.

PDFRuntime Files:

For reading PDF files you must follow the instructions outlined in the "Distributing an application built using the PDF Module" section of Implementing PDF Features.

*NOTE: Silverlight supports PDF write support only and requires Leadtools.Codecs.Pdf.dll.

** Only if the old engine is used (i.e. UsePdfEngine is set to true).

*** Canon Runtime files required for CRW support:

CDSDK.reg, CDSDK.dll, CDRAPCLS.dll, czs_ui.dll, deimg.dll, deImg010.dll, deImg110.dll, deImg153.dll, deimg301.dll, deimg401.dll, deImg404.dll, deimg602.dll, Deimg603.dll, DeImgd60.dll, pscAdimg.dll, pscCllct.dll, pscCStUI.dll, pscDcd.dll, pscDevUI.dll, pscDvlp.dll, Pscl2STI.dll, pscll.dll, pscParse.dll, pscSetup.dll, psdkdll.dll, psdkReg.dll, psParse.dll.

Canon, Inc. publishes these DLLs. If you wish to obtain a license to distribute these files, contact Canon and license the free Canon Digital Camera Software Developer Kit.

These files are included for demonstration and testing purposes. You must obtain a license from Canon prior to distributing these files.

Canon, Inc. suggests that the user of their CRW SDK MUST place the required DLLs/Libraries in the working folder of the EXE application that is using it, and not in the SYSTEM folder. LEADTOOLS tested this in the system folder and it worked fine. But to follow Canon's instructions, we recommend the users of CANON DLLs/Libraries to place them in the working folder of his/her application to avoid any problems/conflicts, which may result from ignoring this recommendation.


Error processing SSI file
