HighPassCommand Class

Summary

Removes low frequency details in an image, resulting in a sharpened image.

Syntax

Objective-C

C++

Java

public class HighPassCommand : RasterCommand

Public Class HighPassCommand
   Inherits RasterCommand

@interface LTHighPassCommand : LTRasterCommand

public class HighPassCommand extends RasterCommand

public ref class HighPassCommand : public RasterCommand

Remarks

This command removes low-frequency detail in the image. The method is opposite to that of the Gaussian Blur method
To increase the thickness of the edges, increase the value of radius. Usually a low value for radius is better.
Unlike the UnsharpMaskCommand, when using this command, the low frequency features are removed from the image.
As an example, if you use the following image:

And you were to call HighPassCommand using the following settings:

Parameter Value

Radius 6

Opacity 100

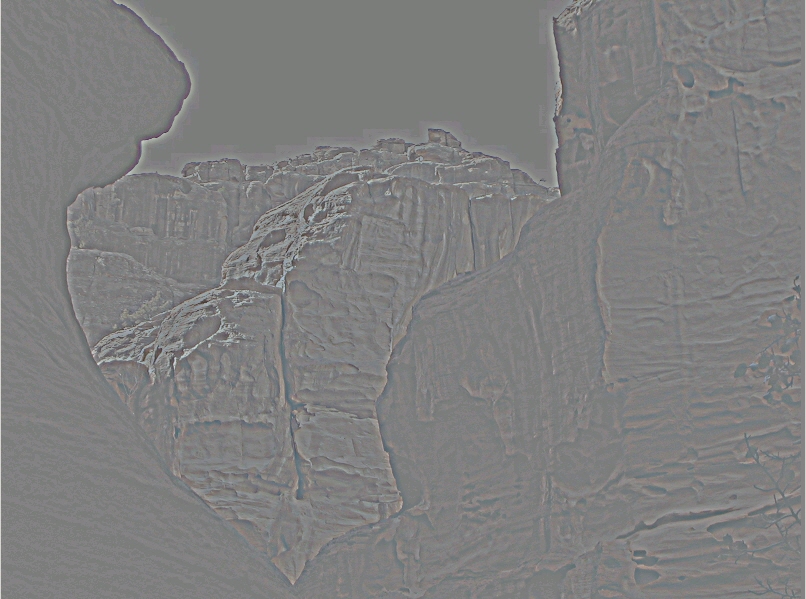

The following figure results:
If the image has a region, the command will be applied on the region only.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support 32-bit grayscale images.

For more information, refer to Removing Noise.

Example

Run the HighPassCommand on an image and applies the HighPass filter.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;

public void HighPassCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.Radius = 6;
   command.Opacity = 100;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Effects

Public Sub HighPassCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim command As HighPassCommand = New HighPassCommand
   command.Radius = 6
   command.Opacity = 100
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class

c#[Silverlight C# Example]
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;
using Leadtools.Examples;

public void HighPassCommandExample(RasterImage image, Stream outStream)
{
   // Prepare the command
   HighPassCommand command = new HighPassCommand();
   command.Radius = 6;
   command.Opacity = 100;
   command.Run(image);
   // Save result image
   RasterCodecs codecs = new RasterCodecs();
   codecs.Save(image, outStream, RasterImageFormat.Jpeg, 24);
   image.Dispose();
}
vb[Silverlight VB Example]
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.Effects

Public Sub HighPassCommandExample(ByVal image As RasterImage, ByVal outStream As Stream)
   ' Prepare the command
   Dim command As HighPassCommand = New HighPassCommand()
   command.Radius = 6
   command.Opacity = 100
   command.Run(image)
   ' Save result image
   Dim codecs As RasterCodecs = New RasterCodecs()
   codecs.Save(image, outStream, RasterImageFormat.Jpeg, 24)
   image.Dispose()
End Sub
