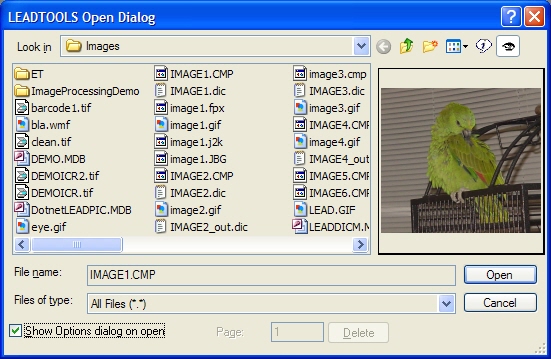

RasterOpenDialog Class

using Leadtools;
using Leadtools.Codecs;
using Leadtools.WinForms.CommonDialogs.File;

public void openDlg_Help(object sender, RasterDialogHelpEventArgs e)
{
   switch (e.Dialog)
   {
      case RasterDialogHelpName.Open:
         {
            MessageBox.Show("Open dialog Help");
            break;
         }

      case RasterDialogHelpName.LoadOptions:
         {
            MessageBox.Show("Load Options dialog Help");
            break;
         }
   }
}

public void openDlg_LoadProgress(object sender, RasterDialogLoadProgressEventArgs e)
{
   string displayText;

   displayText = "(" + e.FilePercent.ToString() + "%) of" + e.LoadRasterFileData.Name + "file is loaded";
   MessageBox.Show(displayText);

   displayText = "(" + e.TotalPercent.ToString() + "%) of all file(s) loading process is completed";
   MessageBox.Show(displayText);
}

public void RasterOpenDialogExample()
{
   RasterCodecs rasterCodecs = new RasterCodecs();

   RasterOpenDialog openDlg = new RasterOpenDialog(rasterCodecs);

   openDlg.Filter = new RasterOpenDialogLoadFormat[]
   {
      new RasterOpenDialogLoadFormat ( "All Files", "*.*" ),
      new RasterOpenDialogLoadFormat ( "LEAD", "*.cmp" )
   };

   openDlg.CheckFileExists = true;
   openDlg.CheckPathExists = true;
   openDlg.DefaultExt = "cmp";
   openDlg.DereferenceLinks = true;
   openDlg.EnableSizing = true;
   openDlg.FileName = "Image1.cmp";
   openDlg.FilterIndex = 2;
   openDlg.GenerateThumbnail = false;
   openDlg.InitialDirectory = LEAD_VARS.ImagesDir;
   openDlg.InitialView = FileDialogInitialView.List;
   openDlg.LoadCompressed = true;
   openDlg.LoadFileImage = false;
   openDlg.LoadOptions = false;
   openDlg.LoadRotated = false;
   openDlg.Multiselect = true;
   openDlg.PreviewWindowVisible = true;
   openDlg.ShowDeletePage = true;
   openDlg.ShowFileInformation = true;
   openDlg.ShowGeneralOptions = true;
   openDlg.ShowHelp = true;
   openDlg.ShowLoadCompressed = true;
   openDlg.ShowLoadOptions = true;
   openDlg.ShowLoadRotated = true;
   openDlg.ShowMultipage = true;
   openDlg.ShowPdfOptions = true;
   openDlg.ShowXpsOptions = true;
   openDlg.ShowXlsOptions = true;
   openDlg.ShowVffOptions = true;
   openDlg.ShowAnzOptions = true;
   openDlg.ShowVectorOptions = true;
   openDlg.ShowPreview = true;
   openDlg.ShowProgressive = true;
   openDlg.ShowRasterOptions = true;
   openDlg.ShowTotalPages = true;
   openDlg.Title = "Open Dialog";
   openDlg.UseFileStamptoPreview = true;
   openDlg.Help += new EventHandler<RasterDialogHelpEventArgs>(openDlg_Help);
   openDlg.LoadCorrupted = true;

   // if you set "openDlg.LoadFileImage = true" this event will be fired
   openDlg.LoadProgress += new EventHandler<RasterDialogLoadProgressEventArgs>(openDlg_LoadProgress);

   if (DialogResult.OK == openDlg.ShowDialog(null))
   {
      for (int i = 0; i < openDlg.OpenedFileData.Count; i++)
      {
         RasterDialogFileData fileDataItem = openDlg.OpenedFileData[i];

         // this is not an image file.
         if (fileDataItem.Options == null)
         {
            continue;
         }

         rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth;
         rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight;
         rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin;
         rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin;
         rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin;
         rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin;
         rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit;
         rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution;
         rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution;
         rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode;

         switch (fileDataItem.Options.FileType)
         {
            case RasterDialogFileOptionsType.Meta:
               {
                  if (null != fileDataItem.Options.MetaOptions)
                  {
                     rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution;
                     rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution;
                  }
                  break;
               }

            case RasterDialogFileOptionsType.Pdf:
               {
                  if ((null != fileDataItem.Options.PdfOptions) &&
                        rasterCodecs.Options.Pdf.IsEngineInstalled)
                  {
                     rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth;
                     rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha;

                     if (fileDataItem.Options.PdfOptions.Password != null)
                     {
                        rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password;
                     }

                     rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha;
                     rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts;
                  }
                  break;
               }

            case RasterDialogFileOptionsType.Misc:
               {
                  if (null == fileDataItem.Options.MiscOptions)
                  {
                     continue;
                  }

                  switch (fileDataItem.FileInfo.Format)
                  {
                     case RasterImageFormat.Jbig:
                        {
                           rasterCodecs.Options.Jbig.Load.Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }

                     case RasterImageFormat.Cmw:
                        {
                           rasterCodecs.Options.Jpeg2000.Load.CmwResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }

                     case RasterImageFormat.Jp2:
                        {
                           rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }

                     case RasterImageFormat.J2k:
                        {
                           rasterCodecs.Options.Jpeg2000.Load.J2kResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
                              fileDataItem.Options.MiscOptions.YResolution);
                           break;
                        }
                  }
                  break;
               }

            case RasterDialogFileOptionsType.Xls:
               rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet;
               rasterCodecs.Options.Xls.Load.MultiPageEnableMargins = fileDataItem.Options.XlsOptions.MultiPageEnableMargins;
               rasterCodecs.Options.Xls.Load.MultiPageUseSheetWidth = fileDataItem.Options.XlsOptions.MultiPageUseSheetWidth;
               rasterCodecs.Options.Xls.Load.PageOrderDownThenOver = fileDataItem.Options.XlsOptions.PageOrderDownThenOver;
               break;

            case RasterDialogFileOptionsType.Vff:
               rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View;
               break;

            case RasterDialogFileOptionsType.Anz:
               rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View;
               break;

            case RasterDialogFileOptionsType.Vector:
               rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor;
               rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel;
               rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor;
               rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight;
               rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode;
               rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth;
               break;
         }

         rasterCodecs.Options.Load.Passes = fileDataItem.Passes;
         rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated;
         rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed;

         RasterImage loadedImage = rasterCodecs.Load(fileDataItem.Name,
            0,
            CodecsLoadByteOrder.BgrOrGray,
            fileDataItem.PageNumber,
            fileDataItem.PageNumber);

         // COPY THE 'loadedImage' IMAGE.

         loadedImage.Dispose();
      }
   }
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}
