FreeRadialBendCommand Class

Summary

Wraps the image along its radius on a 3D surface shaped by Curve. This command is available in the Imaging Pro and above toolkits.

Syntax

C++

public class FreeRadialBendCommand : RasterCommand


Public Class FreeRadialBendCommand
   Inherits RasterCommand

public ref class FreeRadialBendCommand : public RasterCommand

Remarks

If the image has a region, the effect will be applied on the region only.

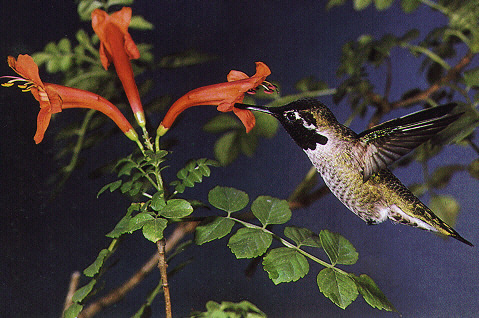

For an example, the following figure shows an image before the effect is applied.

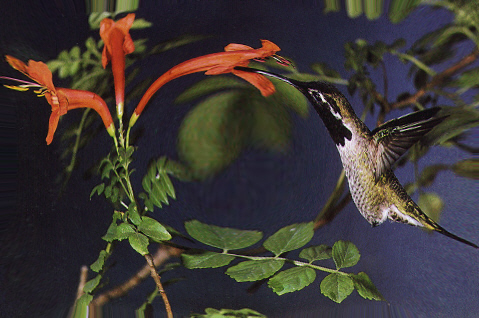

The following figure shows the same image after the effect has been applied.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

For more information, refer to Correcting Colors.

Example

Run the FreeRadialBendCommand on an image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;
using Leadtools.ImageProcessing.Effects;

public void FreeRadialBendCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   FreeRadialBendCommand command = new FreeRadialBendCommand();
   LeadPoint[] UserPoint = new LeadPoint[4];
   LeadPoint CenterPoint = new LeadPoint(image.Width / 2, image.Height / 2);
   int[] Curve = new int[13];

   //Apply the filter
   UserPoint[0].X = 0;
   UserPoint[0].Y = 0;
   UserPoint[1].X = 3;
   UserPoint[1].Y = 10;
   UserPoint[2].X = 9;
   UserPoint[2].Y = -10;
   UserPoint[3].X = 12;
   UserPoint[3].Y = 0;

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
   for (int i = 0; i < Curve.Length; i++)
      Curve[i] /= 50;
   command.Flags = FreeRadialBendCommandFlags.Color | FreeRadialBendCommandFlags.Rotate;
   command.CenterPoint = CenterPoint;
   command.Scale = 200;
   command.FillColor = new RasterColor(255, 0, 0);
   command.Curve = Curve;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS21\Resources\Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects
Imports Leadtools.ImageProcessing.Effects

Public Sub FreeRadialBendCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"))

   ' Prepare the command
   Dim command As FreeRadialBendCommand = New FreeRadialBendCommand
   Dim UserPoint() As LeadPoint
   ReDim UserPoint(3)
   Dim CenterPoint As LeadPoint = New LeadPoint(leadImage.Width \ 2, leadImage.Height \ 2)
   Dim Curve() As Integer
   ReDim Curve(12)

   'Apply the filter
   UserPoint(0).X = 0
   UserPoint(0).Y = 0
   UserPoint(1).X = 3
   UserPoint(1).Y = 10
   UserPoint(2).X = 9
   UserPoint(2).Y = -10
   UserPoint(3).X = 12
   UserPoint(3).Y = 0

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear)
   command.Flags = FreeRadialBendCommandFlags.Color Or FreeRadialBendCommandFlags.Rotate
   command.CenterPoint = CenterPoint
   command.Scale = 200
   command.FillColor = New RasterColor(255, 0, 0)
   command.Curve = Curve
   command.Run(leadImage)
   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24)

End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\LEADTOOLS21\Resources\Images"
End Class
