public class RasterOpenDialog : IDisposable
Public Class RasterOpenDialog
Implements System.IDisposable
public ref class RasterOpenDialog : public System.IDisposable

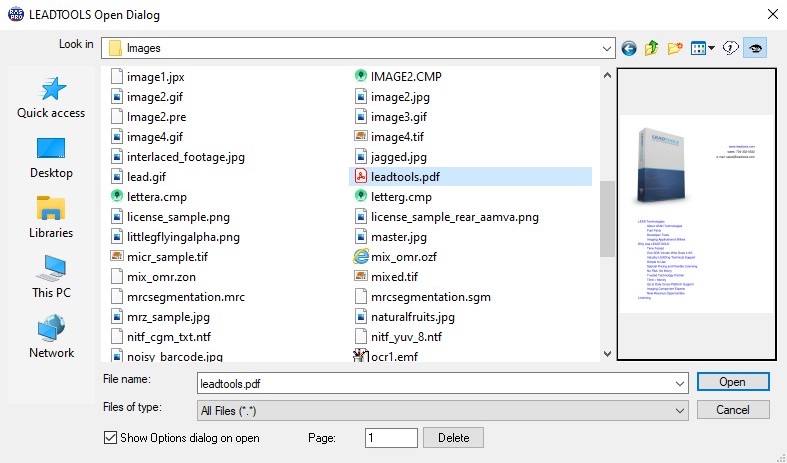

The Raster Open Dialog can be seen below:
using Leadtools;
using Leadtools.Codecs;
using Leadtools.WinForms.CommonDialogs.File;
public void RasterOpenDialogExample()
{
RasterCodecs rasterCodecs = new RasterCodecs();
RasterOpenDialog openDlg = new RasterOpenDialog(rasterCodecs);
openDlg.Filter = new RasterOpenDialogLoadFormat[]
{
new RasterOpenDialogLoadFormat ( "All Files", "*.*" ),
new RasterOpenDialogLoadFormat ( "LEAD", "*.cmp" )
};
openDlg.CheckFileExists = true;
openDlg.CheckPathExists = true;
openDlg.DefaultExt = "cmp";
openDlg.DereferenceLinks = true;
openDlg.EnableSizing = true;
openDlg.FileName = "Image1.cmp";
openDlg.FilterIndex = 2;
openDlg.GenerateThumbnail = false;
openDlg.InitialDirectory = LEAD_VARS.ImagesDir;
openDlg.InitialView = FileDialogInitialView.List;
openDlg.LoadCompressed = true;
openDlg.LoadFileImage = false;
openDlg.LoadOptions = false;
openDlg.LoadRotated = false;
openDlg.Multiselect = true;
openDlg.PreviewWindowVisible = true;
openDlg.ShowDeletePage = true;
openDlg.ShowFileInformation = true;
openDlg.ShowGeneralOptions = true;
openDlg.ShowHelp = true;
openDlg.ShowLoadCompressed = true;
openDlg.ShowLoadOptions = true;
openDlg.ShowLoadRotated = true;
openDlg.ShowMultipage = true;
openDlg.ShowPdfOptions = true;
openDlg.ShowXpsOptions = true;
openDlg.ShowXlsOptions = true;
openDlg.ShowVffOptions = true;
openDlg.ShowAnzOptions = true;
openDlg.ShowVectorOptions = true;
openDlg.ShowPreview = true;
openDlg.ShowProgressive = true;
openDlg.ShowRasterOptions = true;
openDlg.ShowTotalPages = true;
openDlg.Title = "Open Dialog";
openDlg.UseFileStamptoPreview = true;
openDlg.Help += new EventHandler<RasterDialogHelpEventArgs>(openDlg_Help);
openDlg.LoadCorrupted = true;
// if you set "openDlg.LoadFileImage = true" this event will be fired
openDlg.LoadProgress += new EventHandler<RasterDialogLoadProgressEventArgs>(openDlg_LoadProgress);
if (DialogResult.OK == openDlg.ShowDialog(null))
{
for (int i = 0; i < openDlg.OpenedFileData.Count; i++)
{
RasterDialogFileData fileDataItem = openDlg.OpenedFileData[i];
// this is not an image file.
if (fileDataItem.Options == null)
{
continue;
}
rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth;
rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight;
rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin;
rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin;
rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin;
rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin;
rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit;
rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution;
rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution;
rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode;
switch (fileDataItem.Options.FileType)
{
case RasterDialogFileOptionsType.Meta:
{
if (null != fileDataItem.Options.MetaOptions)
{
rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution;
rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution;
}
break;
}
case RasterDialogFileOptionsType.Pdf:
{
if ((null != fileDataItem.Options.PdfOptions) &&
rasterCodecs.Options.Pdf.IsEngineInstalled)
{
rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth;
rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha;
if (fileDataItem.Options.PdfOptions.Password != null)
{
rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password;
}
rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha;
rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts;
}
break;
}
case RasterDialogFileOptionsType.Misc:
{
if (null == fileDataItem.Options.MiscOptions)
{
continue;
}
switch (fileDataItem.FileInfo.Format)
{
case RasterImageFormat.Jbig:
{
rasterCodecs.Options.Jbig.Load.Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution);
break;
}
case RasterImageFormat.Cmw:
{
rasterCodecs.Options.Jpeg2000.Load.CmwResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution);
break;
}
case RasterImageFormat.Jp2:
{
rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution);
break;
}
case RasterImageFormat.J2k:
{
rasterCodecs.Options.Jpeg2000.Load.J2kResolution = new LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution);
break;
}
}
break;
}
case RasterDialogFileOptionsType.Xls:
rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet;
rasterCodecs.Options.Xls.Load.MultiPageEnableMargins = fileDataItem.Options.XlsOptions.MultiPageEnableMargins;
rasterCodecs.Options.Xls.Load.MultiPageUseSheetWidth = fileDataItem.Options.XlsOptions.MultiPageUseSheetWidth;
rasterCodecs.Options.Xls.Load.PageOrderDownThenOver = fileDataItem.Options.XlsOptions.PageOrderDownThenOver;
break;
case RasterDialogFileOptionsType.Vff:
rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View;
break;
case RasterDialogFileOptionsType.Anz:
rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View;
break;
case RasterDialogFileOptionsType.Vector:
rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor;
rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel;
rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor;
rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight;
rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode;
rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth;
break;
}
rasterCodecs.Options.Load.Passes = fileDataItem.Passes;
rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated;
rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed;
RasterImage loadedImage = rasterCodecs.Load(fileDataItem.Name,
0,
CodecsLoadByteOrder.BgrOrGray,
fileDataItem.PageNumber,
fileDataItem.PageNumber);
// COPY THE 'loadedImage' IMAGE.
loadedImage.Dispose();
}
}
}
public void openDlg_Help(object sender, RasterDialogHelpEventArgs e)
{
switch (e.Dialog)
{
case RasterDialogHelpName.Open:
{
MessageBox.Show("Open dialog Help");
break;
}
case RasterDialogHelpName.LoadOptions:
{
MessageBox.Show("Load Options dialog Help");
break;
}
}
}
public void openDlg_LoadProgress(object sender, RasterDialogLoadProgressEventArgs e)
{
string displayText;
displayText = "(" + e.FilePercent.ToString() + "%) of" + e.LoadRasterFileData.Name + "file is loaded";
MessageBox.Show(displayText);
displayText = "(" + e.TotalPercent.ToString() + "%) of all file(s) loading process is completed";
MessageBox.Show(displayText);
}
static class LEAD_VARS
{
public const string ImagesDir = @"C:\LEADTOOLS21\Resources\Images";
}
Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.WinForms.CommonDialogs.File
Public Sub openDlg_Help(ByVal sender As Object, ByVal e As RasterDialogHelpEventArgs) Handles openDlg.Help
Select Case e.Dialog
Case RasterDialogHelpName.Open
MessageBox.Show("Open dialog Help")
Exit Select
Case RasterDialogHelpName.LoadOptions
MessageBox.Show("Load Options dialog Help")
Exit Select
End Select
End Sub
Public Sub openDlg_LoadProgress(ByVal sender As Object, ByVal e As RasterDialogLoadProgressEventArgs) Handles openDlg.LoadProgress
Dim displayText As String
displayText = "(" & e.FilePercent.ToString() & "%) of" & e.LoadRasterFileData.Name & "file is loaded"
MessageBox.Show(displayText)
displayText = "(" & e.TotalPercent.ToString() & "%) of all file(s) loading process is completed"
MessageBox.Show(displayText)
End Sub
WithEvents openDlg As RasterOpenDialog
Public Sub RasterOpenDialogExample()
Dim rasterCodecs As RasterCodecs = New RasterCodecs()
openDlg = New RasterOpenDialog(rasterCodecs)
openDlg.Filter = New RasterOpenDialogLoadFormat() {New RasterOpenDialogLoadFormat("All Files", "*.*"), New RasterOpenDialogLoadFormat("LEAD", "*.cmp")}
openDlg.CheckFileExists = True
openDlg.CheckPathExists = True
openDlg.DefaultExt = "cmp"
openDlg.DereferenceLinks = True
openDlg.EnableSizing = True
openDlg.FileName = "Image.cmp"
openDlg.FilterIndex = 2
openDlg.GenerateThumbnail = False
openDlg.InitialDirectory = LEAD_VARS.ImagesDir
openDlg.InitialView = FileDialogInitialView.List
openDlg.LoadCompressed = True
openDlg.LoadFileImage = False
openDlg.LoadOptions = False
openDlg.LoadRotated = False
openDlg.Multiselect = True
openDlg.PreviewWindowVisible = True
openDlg.ShowDeletePage = True
openDlg.ShowFileInformation = True
openDlg.ShowGeneralOptions = True
openDlg.ShowHelp = True
openDlg.ShowLoadCompressed = True
openDlg.ShowLoadOptions = True
openDlg.ShowLoadRotated = True
openDlg.ShowMultipage = True
openDlg.ShowPdfOptions = True
openDlg.ShowXpsOptions = True
openDlg.ShowXlsOptions = True
openDlg.ShowVffOptions = True
openDlg.ShowAnzOptions = True
openDlg.ShowVectorOptions = True
openDlg.ShowPreview = True
openDlg.ShowProgressive = True
openDlg.ShowRasterOptions = True
openDlg.ShowTotalPages = True
openDlg.Title = "Open Dialog"
openDlg.UseFileStamptoPreview = True
openDlg.LoadCorrupted = True
If DialogResult.OK = openDlg.ShowDialog(Nothing) Then
For i As Integer = 0 To openDlg.OpenedFileData.Count
Dim fileDataItem As RasterDialogFileData = CType(openDlg.OpenedFileData(i), RasterDialogFileData)
' this is not an image file.
If fileDataItem.Options Is Nothing Then
Continue For
End If
rasterCodecs.Options.RasterizeDocument.Load.PageWidth = fileDataItem.Options.RasterizeDocumentOptions.PageWidth
rasterCodecs.Options.RasterizeDocument.Load.PageHeight = fileDataItem.Options.RasterizeDocumentOptions.PageHeight
rasterCodecs.Options.RasterizeDocument.Load.LeftMargin = fileDataItem.Options.RasterizeDocumentOptions.LeftMargin
rasterCodecs.Options.RasterizeDocument.Load.TopMargin = fileDataItem.Options.RasterizeDocumentOptions.TopMargin
rasterCodecs.Options.RasterizeDocument.Load.RightMargin = fileDataItem.Options.RasterizeDocumentOptions.RightMargin
rasterCodecs.Options.RasterizeDocument.Load.BottomMargin = fileDataItem.Options.RasterizeDocumentOptions.BottomMargin
rasterCodecs.Options.RasterizeDocument.Load.Unit = fileDataItem.Options.RasterizeDocumentOptions.Unit
rasterCodecs.Options.RasterizeDocument.Load.XResolution = fileDataItem.Options.RasterizeDocumentOptions.XResolution
rasterCodecs.Options.RasterizeDocument.Load.YResolution = fileDataItem.Options.RasterizeDocumentOptions.YResolution
rasterCodecs.Options.RasterizeDocument.Load.SizeMode = fileDataItem.Options.RasterizeDocumentOptions.SizeMode
Select Case fileDataItem.Options.FileType
Case RasterDialogFileOptionsType.Meta
If Not Nothing Is fileDataItem.Options.MetaOptions Then
rasterCodecs.Options.Wmf.Load.XResolution = fileDataItem.Options.MetaOptions.XResolution
rasterCodecs.Options.Wmf.Load.YResolution = fileDataItem.Options.MetaOptions.XResolution
End If
Exit Select
Case RasterDialogFileOptionsType.Pdf
If (Not Nothing Is fileDataItem.Options.PdfOptions) AndAlso rasterCodecs.Options.Pdf.IsEngineInstalled Then
rasterCodecs.Options.Pdf.Load.DisplayDepth = fileDataItem.Options.PdfOptions.DisplayDepth
rasterCodecs.Options.Pdf.Load.GraphicsAlpha = fileDataItem.Options.PdfOptions.GraphicsAlpha
If Not fileDataItem.Options.PdfOptions.Password Is Nothing Then
rasterCodecs.Options.Pdf.Load.Password = fileDataItem.Options.PdfOptions.Password
End If
rasterCodecs.Options.Pdf.Load.TextAlpha = fileDataItem.Options.PdfOptions.TextAlpha
rasterCodecs.Options.Pdf.Load.UseLibFonts = fileDataItem.Options.PdfOptions.UseLibFonts
End If
Exit Select
Case RasterDialogFileOptionsType.Misc
If Nothing Is fileDataItem.Options.MiscOptions Then
Continue For
End If
Select Case fileDataItem.FileInfo.Format
Case RasterImageFormat.Jbig
rasterCodecs.Options.Jbig.Load.Resolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution)
Exit Select
Case RasterImageFormat.Cmw
rasterCodecs.Options.Jpeg2000.Load.CmwResolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution)
Exit Select
Case RasterImageFormat.Jp2
rasterCodecs.Options.Jpeg2000.Load.Jp2Resolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution)
Exit Select
Case RasterImageFormat.J2k
rasterCodecs.Options.Jpeg2000.Load.J2kResolution = New LeadSize(fileDataItem.Options.MiscOptions.XResolution,
fileDataItem.Options.MiscOptions.YResolution)
Exit Select
End Select
Exit Select
Case RasterDialogFileOptionsType.Xls
rasterCodecs.Options.Xls.Load.MultiPageSheet = fileDataItem.Options.XlsOptions.MultiPageSheet
rasterCodecs.Options.Xls.Load.MultiPageEnableMargins = fileDataItem.Options.XlsOptions.MultiPageEnableMargins
rasterCodecs.Options.Xls.Load.MultiPageUseSheetWidth = fileDataItem.Options.XlsOptions.MultiPageUseSheetWidth
rasterCodecs.Options.Xls.Load.PageOrderDownThenOver = fileDataItem.Options.XlsOptions.PageOrderDownThenOver
Exit Select
Case RasterDialogFileOptionsType.Vff
rasterCodecs.Options.Vff.Load.View = fileDataItem.Options.VffOptions.View
Exit Select
Case RasterDialogFileOptionsType.Anz
rasterCodecs.Options.Anz.Load.View = fileDataItem.Options.AnzOptions.View
Exit Select
Case RasterDialogFileOptionsType.Vector
rasterCodecs.Options.Vector.Load.BackgroundColor = fileDataItem.Options.VectorOptions.Options.BackgroundColor
rasterCodecs.Options.Vector.Load.BitsPerPixel = fileDataItem.Options.VectorOptions.Options.BitsPerPixel
rasterCodecs.Options.Vector.Load.ForceBackgroundColor = fileDataItem.Options.VectorOptions.Options.ForceBackgroundColor
rasterCodecs.Options.Vector.Load.ViewHeight = fileDataItem.Options.VectorOptions.Options.ViewHeight
rasterCodecs.Options.Vector.Load.ViewMode = fileDataItem.Options.VectorOptions.Options.ViewMode
rasterCodecs.Options.Vector.Load.ViewWidth = fileDataItem.Options.VectorOptions.Options.ViewWidth
Exit Select
End Select
rasterCodecs.Options.Load.Passes = fileDataItem.Passes
rasterCodecs.Options.Load.Rotated = fileDataItem.LoadRotated
rasterCodecs.Options.Load.Compressed = fileDataItem.LoadCompressed
Dim loadedImage As RasterImage = rasterCodecs.Load(fileDataItem.Name, 0, CodecsLoadByteOrder.BgrOrGray, fileDataItem.PageNumber, fileDataItem.PageNumber)
' COPY THE 'loadedImage' IMAGE.
loadedImage.Dispose()
Next
End If
End Sub
Public NotInheritable Class LEAD_VARS
Public Const ImagesDir As String = "C:\LEADTOOLS21\Resources\Images"
End Class
Help Collections
Raster .NET | C API | C++ Class Library | HTML5 JavaScript
Document .NET | C API | C++ Class Library | HTML5 JavaScript
Medical .NET | C API | C++ Class Library | HTML5 JavaScript
Medical Web Viewer .NET
Multimedia
Direct Show .NET | C API | Filters
Media Foundation .NET | C API | Transforms
Supported Platforms
.NET, Java, Android, and iOS/macOS Assemblies
Imaging, Medical, and Document
C API/C++ Class Libraries
Imaging, Medical, and Document
HTML5 JavaScript Libraries
Imaging, Medical, and Document
