ImageViewer Object

Summary

Represents a scrollable control that displays one or more raster or SVG images and provides optional interactive UI operations.

Syntax
TypeScript
JavaScript
function lt.Controls.ImageViewer
	implements IDisposable
class lt.Controls.ImageViewer()
	implements IDisposable
Remarks

The LEADTOOLS ImageViewer class represents a control that displays one or more images and provides optional interactive UI operations. It can be used in single-item applications like MS-Paint or multiple-item applications like Adobe Acrobat.

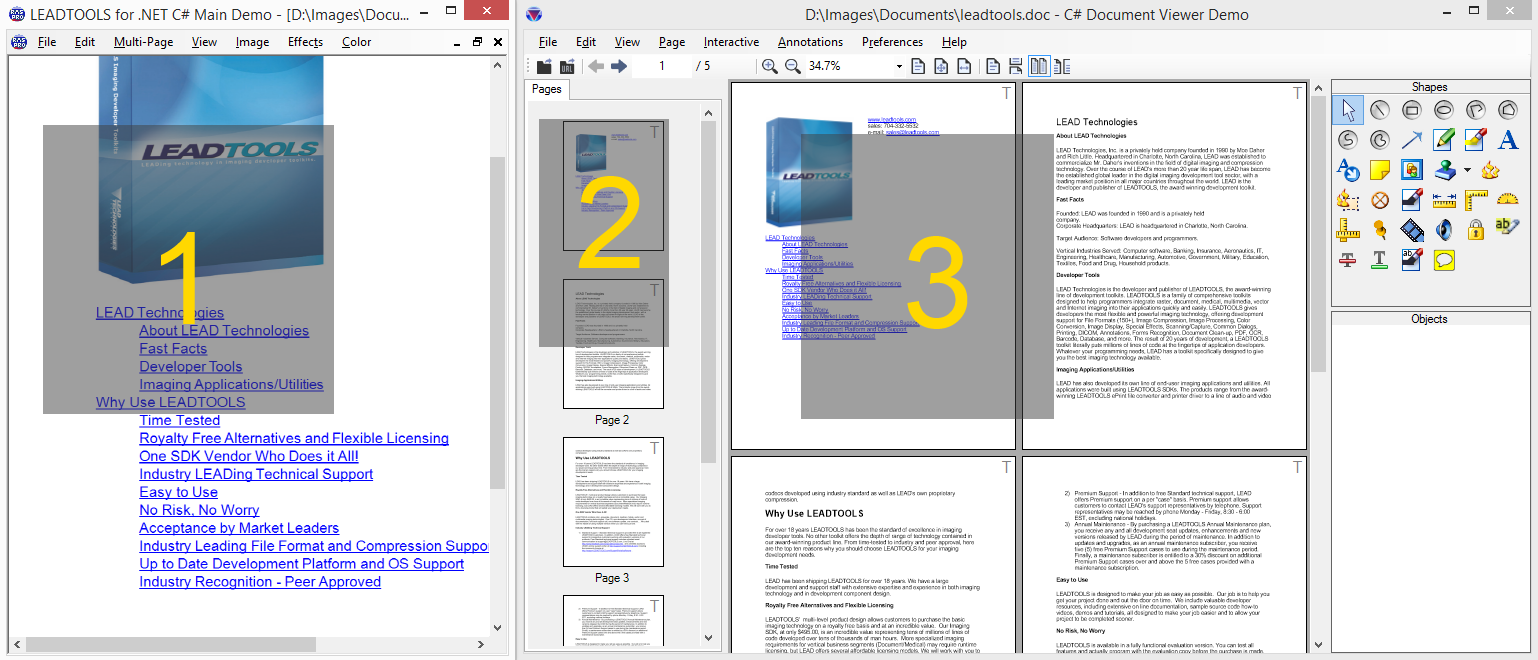

Image Viewer
  1. LEADTOOLS Main Demo uses an Image Viewer instance in single layout mode to view the main image

  2. LEADTOOLS Document Viewer Demo uses an Image Viewer instance in a vertical layout to view thumbnails of the pages

  3. Another Image Viewer instance in the LEADTOOLS Document Viewer Demo, that contains a view of the main content in double layout

The ImageViewer class provides the following features:

  • Single or multiple items, each with its own image data, size, and optional additional transformations

  • Built-in support to load raster images, SVG images, and documents, including directly loading remote URLs

  • Extensible layout system with built-in support for single, vertical, and horizontal layouts

  • Rich, fully customizable and extensible user-interface that provides rich interactive tools such as pan, zoom, magnify glass, rubber band, and many more

  • Support for user input from both mouse and touch

  • Fully customizable appearance and position

  • Auto and custom scroll modes

  • Owner draw rendering

  • Viewing options include infinite zooming with size modes (fit, fit page, etc.), rotation at any angle, flip, reverse, color inversion, and low level transformations

  • High level item operations for hit-testing and automatically going to a specific item or page

  • Drag and drop between the image viewer and external sources such as the file system or other image viewer instances

  • Floater image and region of interest functionality

  • Resampling and scale-to-gray display interpolation

Refer to the following topics for more in-depth information on each group of features:

Example

This example will create an ImageViewer, set the interactive mode to Pan/Zoom, and add an image to the viewer.

This example is used as the basis for examples for most members in this namespace.

ImageViewer.ts
ImageViewer.js
ImageViewer.html
export class ImageViewer_Example {
   // LEADTOOLS ImageViewer to be used with this example
   protected imageViewer: lt.Controls.ImageViewer = null;
   // Generic state value used by the examples
   public timesClicked: number = 0;

   constructor(callback?: (viewer: lt.Controls.ImageViewer) => void) {
      // Set the LEADTOOLS license. Replace this with your actual license file
      lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);

      // Create an image viewer inside the imageViewerDiv element
      const imageViewerDiv = document.getElementById("imageViewerDiv");
      const createOptions: lt.Controls.ImageViewerCreateOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);
      this.imageViewer = new lt.Controls.ImageViewer(createOptions);
      this.imageViewer.viewVerticalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.viewHorizontalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.autoCreateCanvas = true;

      // Add Pan/Zoom interactive mode
      // Click and drag to pan, CTRL-Click and drag to zoom in and out
      this.imageViewer.interactiveModes.add(new lt.Controls.ImageViewerPanZoomInteractiveMode());

      // Load an image
      this.imageViewer.imageUrl = "https://demo.leadtools.com/images/jpeg/cannon.jpg";

      this.imageViewer.zoom(lt.Controls.ControlSizeMode.fit, .9, this.imageViewer.defaultZoomOrigin);

      const exampleButton = document.getElementById("exampleButton");
      exampleButton.addEventListener("click", () => {
         this.timesClicked++;
         // Run the example
         if (callback)
            callback(this.imageViewer);
      });
   }
}
export class ImageViewer_Example {
   // LEADTOOLS ImageViewer to be used with this example
   imageViewer = null;
   // Generic state value used by the examples
   timesClicked = 0;

   constructor(callback) {
      // Set the LEADTOOLS license. Replace this with your actual license file
      lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);

      // Create an image viewer inside the imageViewerDiv element
      const imageViewerDiv = document.getElementById("imageViewerDiv");
      const createOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);
      this.imageViewer = new lt.Controls.ImageViewer(createOptions);
      this.imageViewer.viewVerticalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.viewHorizontalAlignment = lt.Controls.ControlAlignment.center;
      this.imageViewer.autoCreateCanvas = true;

      // Add Pan/Zoom interactive mode
      // Click and drag to pan, CTRL-Click and drag to zoom in and out
      this.imageViewer.interactiveModes.add(new lt.Controls.ImageViewerPanZoomInteractiveMode());

      // Load an image
      this.imageViewer.imageUrl = "https://demo.leadtools.com/images/jpeg/cannon.jpg";

      this.imageViewer.zoom(lt.Controls.ControlSizeMode.fit, .9, this.imageViewer.defaultZoomOrigin);

      const exampleButton = document.getElementById("exampleButton");
      exampleButton.addEventListener("click", () => {
         this.timesClicked++;
         // Run the example
         if (callback)
            callback(this.imageViewer);
      });
   }
}
<!doctype html>
<html lang="en">
<title>Controls Example | Image Viewer</title>

<head>
   <script src="https://code.jquery.com/jquery-2.2.4.min.js"
      integrity="sha256-BbhdlvQf/xTY9gja0Dq3HiwQF8LaCRTXxZKRutelT44=" crossorigin="anonymous"></script>

   <script src="../../LT/Leadtools.js"></script>
   <script src="../../LT/Leadtools.Controls.js"></script>
   <script src="../../LT/Leadtools.Annotations.Engine.js"></script>
   <script src="../../LT/Leadtools.Annotations.Designers.js"></script>
   <script src="../../LT/Leadtools.Annotations.Rendering.Javascript.js"></script>
   <script src="../../LT/Leadtools.Annotations.Automation.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Main.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Color.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Core.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Effects.js"></script>
   <script src="../../LT/Leadtools.Document.js"></script>
   <script src="../../LT/Leadtools.Document.Viewer.js"></script>
   <style>
      body {
         font-family: 'Segoe UI', sans-serif;
      }

      #imageViewerDiv {
         border: 1px solid #888;
         width: 500px;
         height: 500px;
         background-color: #eee;
      }
   </style>

   <!-- All demo files are bundled and appended to the window -->
   <script src="../../bundle.js" type="text/javascript"></script>
</head>

<body>
   <p>Press and drag on the image to pan.</p>
   <p>Hold down the control key and press and drag on the image or pinch with two fingers to zoom in and out.</p>
   <div>
      <button type="button" id="exampleButton">Run Example</button>
   </div>
   <div id="imageViewerDiv"></div>
   <div id="output"></div>
</body>

<script>
   window.onload = () => {
      const example = new window.examples.ImageViewer.Example();
   };
</script>
</html>
Requirements

Target Platforms

Help Version 23.0.2024.2.29
