Ocean method (Main Control)

Builder Syntax	int Ocean(unsigned uAmplitude, unsigned uFrequency, bool bLowerTrnsp);
Delphi Syntax	Function Ocean (uAmplitude: L_UINT; uFrequency: L_UINT; bLowerTrnsp: Boolean): L_INT;
Overview	Refer to Applying Artistic Effects

Remarks

(Raster Pro and above toolkits.) Reflects the bitmap on an ocean surface.

If the bitmap has a region, the effect will be applied on the region only.

This method supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64-bit color images is available only in the Document/Medical toolkits.

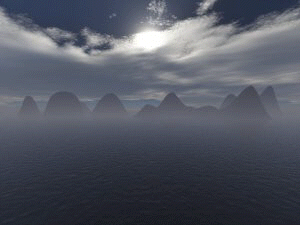

For an example, see the following figure:

$image\Ocean_before.gif$

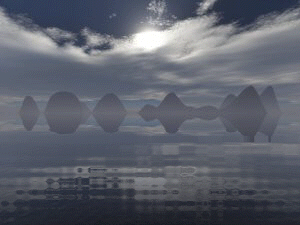

The following figure shows the same bitmap, after the effect has been applied:

$image\Ocean_after.gif$

To obtain this effect, the following settings were used with the method:

uAmplitude=15

uFrequency=20

bLowerTrnsp=TRUE

This method does not support signed data images. It returns the error code ERROR_SIGNED_DATA_NOT_SUPPORTED if a signed data image is passed to this method.
