ShowPicturizeDlg method (ILEADRasterDlgImgEfx)

Visual Basic example

Visual C++ example



Syntax

short ShowPicturizeDlg (long hWnd);

Overview

Refer to Using Imaging Common Dialogs

Remarks

Displays the Picturize dialog box, and gets the options for the Picturize method.

The layout and action of the dialog depends on the flags set in the UIFlags property. Possible options are:

Value

Meaning

PICTURIZE_AUTOPROCESS

[0X00000001] process the image on OK. The Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

PICTURIZE_SHOW_CONTEXTHELP

[0X00000002] dialog should contain a context sensitive help icon.

If you include PICTURIZE_AUTOPROCESS in the UIFlags property, the Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

The properties associated with this dialog box are:

DirectoryPath property

PicturizeResizeFlags property

CellWidth property

CellHeight property

To include a Help button in the dialog, set the ShowHelpButton property to VARIANT_TRUE.

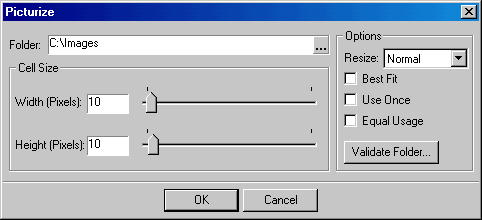

The Picturize dialog can be seen below:


See Also

Elements

Picturize method, DirectoryPath property, PicturizeResizeFlags property, CellWidth property, CellHeight property, ShowHelpButton property, EnableZoomToFit Property, UIFlags Property, EnableMethodErrors property.
