CurveClose property (Main Control)

Visual Basic example
Visual C++ 4.0 example

Syntax short CurveClose

Overview: Refer to Creating and Using a Bitmap Region

Remarks

Value that indicates how the curve is closed. This property is used only when the CurveType property is set to CURVE_STANDARD. Possible values are:

Value	Meaning
CURVE_NO_CLOSE	[0x0] For n points, draw (n – 3) segments. For example, for points {P0, P1, P2, P3, P4}, draw segments P1P2 and P2P3.
CURVE_CLOSE	[0x1] For n points draw (n) segments. For example, for points {P0, P1, P2, P3, P4}, draw segments P0P1, P1P2, P2P3, P3P4, P4P0.
CURVE_PARTIAL_CLOSE	[0x2] For n points draw (n – 1) segments. For example, for points {P0, P1, P2, P3, P4}, draw segments P0P1, P1P2, P2P3, P3P4 (but not P4P0).

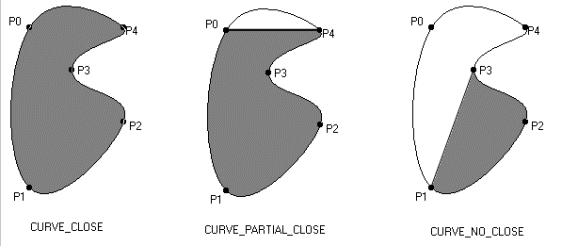

In the following diagram, the resulting region is shown in gray.

$image\curveclose.gif$

To create a curve region, first build an ordered array of points for the curve. Then create the region based on the array. The CurveSize property specifies the size of the array. Either specify a large array to start with, or increase the size of the array as needed, without losing existing points. For each point, update the following indexed properties:

and define the characteristics of the curve by setting the following properties:

Then call the SetRgnCurve method to add the region to the bitmap.
