LEADTOOLS Annotations (Leadtools.Annotations assembly) Send comments on this topic. | Back to Introduction - All Topics | Help Version 17.0.3.29
AnnStampObject Class
See Also  Members
Leadtools.Annotations Namespace : AnnStampObject Class



The AnnStampObject Class is available in LEADTOOLS Document and Medical Imaging toolkits.

Defines an annotation stamp object.

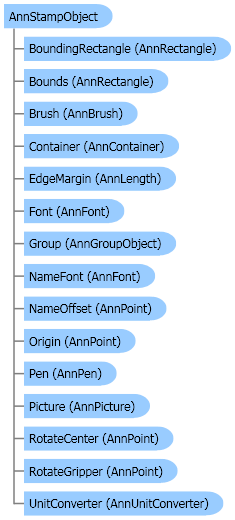

Object Model

AnnStampObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnLength StructureAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPicture ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class

Syntax

Visual Basic (Declaration)
<SerializableAttribute()>
Public Class AnnStampObject
   Inherits AnnTextObject
   Implements IAnnPictureObjectIAnnTextObjectICloneableIDisposableISerializable
Visual Basic (Usage)Copy Code
Dim instance As AnnStampObject
C++/CLI
[SerializableAttribute()]
public ref class AnnStampObject : public AnnTextObject, IAnnPictureObjectIAnnTextObjectICloneableIDisposableISerializable

Example

This example creates a new stamp object.

Visual BasicCopy Code
Private Sub AnnStampObject_AnnStampObject(ByVal container As AnnContainer, ByVal imageFileName As String)
   Dim stamp As AnnStampObject = New AnnStampObject()
   Dim pic As AnnPicture = New AnnPicture(Image.FromFile(imageFileName))
   pic.TransparentMode = AnnPictureTransparentMode.None
   pic.TransparentColor = Color.Black
   stamp.Picture = pic
   stamp.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(stamp)
End Sub
C#Copy Code
private void AnnStampObject_AnnStampObject(AnnContainer container, string imageFileName)
{
   AnnStampObject stamp = new AnnStampObject();
   AnnPicture pic = new AnnPicture(Image.FromFile(imageFileName));
   pic.TransparentMode = AnnPictureTransparentMode.None;
   pic.TransparentColor = Color.Black;
   stamp.Picture = pic;
   stamp.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(stamp);
}

Remarks

The stamp annotation object can be a picture or a text string in a rectangular frame. If the stamp object has a picture, it will be scaled to fit the bounding rectangle and drawn. If the stamp does not have a picture, the text will be drawn.

This class implements the IAnnPictureObject interface and accesses the IAnnPictureObject.Picture property that handles the picture associated with the annotation object.

For more information, refer to Using Pictures in Annotation Objects

For more information about the stamp annotation object refer to AnnStampObject. For more information about the automated stamp annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Stamp Picture Tab.

Inheritance Hierarchy

System.Object
   Leadtools.Annotations.AnnDrawable
      Leadtools.Annotations.AnnObject
         Leadtools.Annotations.AnnRectangleObject
            Leadtools.Annotations.AnnTextObject
               Leadtools.Annotations.AnnStampObject

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 2000, Windows XP, Windows Server 2003 family, Windows Server 2008 family, Windows Vista, Windows 7

See Also

Leadtools.Annotations requires a Document or Medical toolkit license and unlock key. For more information, refer to: Imaging Pro/Document/Medical Features
