AnnLineObject Class

Example





Members
Defines an annotation line object.

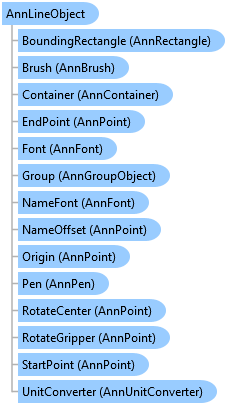

Object Model
AnnLineObject ClassAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnPoint StructureAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnPoint StructureAnnUnitConverter Class
Syntax
'Declaration

<SerializableAttribute()>
Public Class AnnLineObject
   Inherits AnnObject
   Implements System.ICloneableSystem.IDisposableSystem.Runtime.Serialization.ISerializable
'Usage

Dim instance As AnnLineObject
function Leadtools.Annotations.AnnLineObject()
Remarks

The line annotation object is a simple line that has a start point, an end point and a pen. For more information about the line annotation object refer to AnnLineObject. For more information about the automated line annotation object, refer to Annotation Objects - Automated Features.

Example

Private Sub AnnLineObject_AnnLineObject(ByVal container As AnnContainer)
   Dim line As AnnLineObject = New AnnLineObject()
   line.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   line.StartPoint = New AnnPoint(100, 200, AnnUnit.Pixel)
   line.EndPoint = New AnnPoint(400, 600, AnnUnit.Pixel)
   container.Objects.Add(line)
End Sub
private void AnnLineObject_AnnLineObject(AnnContainer container)
{
   AnnLineObject line = new AnnLineObject();
   line.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   line.StartPoint = new AnnPoint(100, 200, AnnUnit.Pixel);
   line.EndPoint = new AnnPoint(400, 600, AnnUnit.Pixel);
   container.Objects.Add(line);
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnLineObject Members
Leadtools.Annotations Namespace
