AnnPointerObject Class

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[SerializableAttribute()]
public class AnnPointerObject : AnnLineObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnPointerObject
   Inherits AnnLineObject
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnPointerObject

public sealed class AnnPointerObject : System.ICloneable, IClosable //In WinRT the IDisposable interface is replaced by IClosable, ~Remove~

function Leadtools.Annotations.AnnPointerObject()

[SerializableAttribute()]
public ref class AnnPointerObject : public AnnLineObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The pointer annotation object is defined by two points, with an arrow at the first point. For more information about the pointer annotation object refer to AnnPointerObject. For more information about the automated pointer annotation object, refer to Annotation Objects - Automated Features.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Private Sub AnnPointerObject_AnnPointerObject(ByVal container As AnnContainer)
   Dim pointer As AnnPointerObject = New AnnPointerObject()
   pointer.Pen = New AnnPen(Color.Red, New AnnLength(1, AnnUnit.Pixel))
   pointer.StartPoint = New AnnPoint(100, 100, AnnUnit.Pixel)
   pointer.EndPoint = New AnnPoint(200, 200, AnnUnit.Pixel)
   container.Objects.Add(pointer)
End Sub

private void AnnPointerObject_AnnPointerObject(AnnContainer container)
{
   AnnPointerObject pointer = new AnnPointerObject();
   pointer.Pen = new AnnPen(Color.Red, new AnnLength(1, AnnUnit.Pixel));
   pointer.StartPoint = new AnnPoint(100, 100, AnnUnit.Pixel);
   pointer.EndPoint = new AnnPoint(200, 200, AnnUnit.Pixel);
   container.Objects.Add(pointer);
}

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

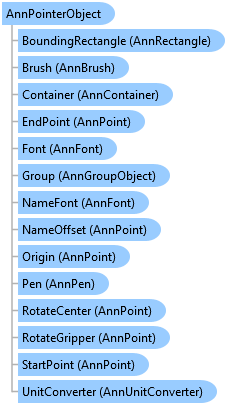

AnnPointerObject Members
Leadtools.Annotations Namespace
