AnnProtractorObject Class

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[SerializableAttribute()]
public class AnnProtractorObject : AnnObject, IAnnProtractorObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnProtractorObject
   Inherits AnnObject
   Implements IAnnProtractorObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnProtractorObject

public sealed class AnnProtractorObject : IAnnProtractorObject, IAnnRulerObject, System.ICloneable, IClosable //In WinRT the IDisposable interface is replaced by IClosable, ~Remove~

function Leadtools.Annotations.AnnProtractorObject()

[SerializableAttribute()]
public ref class AnnProtractorObject : public AnnObject, IAnnProtractorObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

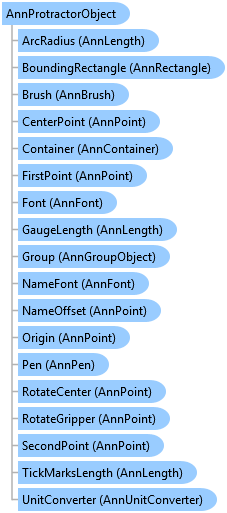

The protractor annotation object consists of two rulers joined at a point to create an angle. The center point is CenterPoint, the first line ends at FirstPoint and the second point ends at SecondPoint.
For more information, refer to Using Protractors in Annotation Objects.

For more information about the protractor annotation object refer to AnnProtractorObject. For more information about the automated protractor clip annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Protractor Tab.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Private Sub AnnProtractorObject_AnnProtractorObject(ByVal container As AnnContainer)
   Dim protractor As AnnProtractorObject = New AnnProtractorObject()
   protractor.Pen = New AnnPen(Color.Green, New AnnLength(3))
   protractor.CenterPoint = New AnnPoint(10.0F, 4.5F, AnnUnit.Inch)
   protractor.FirstPoint = New AnnPoint(5.0F, 20.0F, AnnUnit.Inch)
   protractor.SecondPoint = New AnnPoint(20.56F, 40.3F, AnnUnit.Inch)
   protractor.MeasurementUnit = AnnUnit.SmartEnglish
   protractor.TickMarksLength = New AnnLength(0.5F, AnnUnit.Inch)
   protractor.ShowTickMarks = True
   protractor.GaugeLength = New AnnLength(1.0F, AnnUnit.Inch)
   protractor.ShowGauge = True
   protractor.ShowLength = True
   protractor.Precision = 2
   protractor.AngularUnit = AnnAngularUnit.Degree
   protractor.Acute = True
   protractor.AnglePrecision = 2
   protractor.ArcRadius = New AnnLength(0.5F, AnnUnit.Inch)
   container.Objects.Add(protractor)
End Sub

private void AnnProtractorObject_AnnProtractorObject(AnnContainer container)
{
   AnnProtractorObject protractor = new AnnProtractorObject();
   protractor.Pen = new AnnPen(Color.Green, new AnnLength(3));
   protractor.CenterPoint = new AnnPoint(10.0F, 4.5F, AnnUnit.Inch);
   protractor.FirstPoint = new AnnPoint(5.0F, 20.0F, AnnUnit.Inch);
   protractor.SecondPoint = new AnnPoint(20.56F, 40.3F, AnnUnit.Inch);
   protractor.MeasurementUnit = AnnUnit.SmartEnglish;
   protractor.TickMarksLength = new AnnLength(0.5F, AnnUnit.Inch);
   protractor.ShowTickMarks = true;
   protractor.GaugeLength = new AnnLength(1.0F, AnnUnit.Inch);
   protractor.ShowGauge = true;
   protractor.ShowLength = true;
   protractor.Precision = 2;
   protractor.AngularUnit = AnnAngularUnit.Degree;
   protractor.Acute = true;
   protractor.AnglePrecision = 2;
   protractor.ArcRadius = new AnnLength(0.5F, AnnUnit.Inch);
   container.Objects.Add(protractor);
}

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

Reference

AnnProtractorObject Members
Leadtools.Annotations Namespace
