AnnRulerObject Class

Visual Basic
C#
WinRT C#
WinRT JavaScript
C++

[SerializableAttribute()]
public class AnnRulerObject : AnnLineObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnRulerObject
   Inherits AnnLineObject
   Implements IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnRulerObject

public sealed class AnnRulerObject : IAnnRulerObject, System.ICloneable, IClosable //In WinRT the IDisposable interface is replaced by IClosable, ~Remove~

function Leadtools.Annotations.AnnRulerObject()

[SerializableAttribute()]
public ref class AnnRulerObject : public AnnLineObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

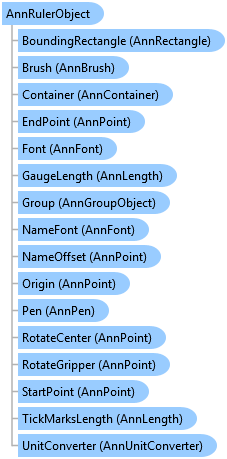

The annotation ruler object is characterized by starting and ending points, a bounding rectangle, a pen, a length, tick marks, and a gauge. The pen is inherited from the AnnDrawable class.
For more information, refer to Using Rulers in Annotation Objects.

For more information about the ruler annotation object refer to AnnRulerObject. For more information about the automated ruler annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Ruler Tab.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Private Sub AnnRulerObject_AnnRulerObject(ByVal container As AnnContainer)
   Dim ruler As AnnRulerObject = New AnnRulerObject()
   ruler.StartPoint = New AnnPoint(10.0F, 4.5F, AnnUnit.Inch)
   ruler.EndPoint = New AnnPoint(20.56F, 40.3F, AnnUnit.Inch)
   ruler.MeasurementUnit = AnnUnit.SmartEnglish
   ruler.TickMarksLength = New AnnLength(0.5F, AnnUnit.Inch)
   ruler.ShowTickMarks = True
   ruler.GaugeLength = New AnnLength(1.0F, AnnUnit.Inch)
   ruler.ShowGauge = True
   ruler.ShowLength = True
   ruler.Precision = 2
   ruler.Pen = New AnnPen(Color.Red, New AnnLength(4))
   container.Objects.Add(ruler)
End Sub

private void AnnRulerObject_AnnRulerObject(AnnContainer container)
{
   AnnRulerObject ruler = new AnnRulerObject();
   ruler.StartPoint = new AnnPoint(10.0F, 4.5F, AnnUnit.Inch);
   ruler.EndPoint = new AnnPoint(20.56F, 40.3F, AnnUnit.Inch);
   ruler.MeasurementUnit = AnnUnit.SmartEnglish;
   ruler.TickMarksLength = new AnnLength(0.5F, AnnUnit.Inch);
   ruler.ShowTickMarks = true;
   ruler.GaugeLength = new AnnLength(1.0F, AnnUnit.Inch);
   ruler.ShowGauge = true;
   ruler.ShowLength = true;
   ruler.Precision = 2;
   ruler.Pen = new AnnPen(Color.Red, new AnnLength(4));
   container.Objects.Add(ruler);
}

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2
