AnnTextObject Class

Example





Members
This class provides support for creating and managing Text annotation objects

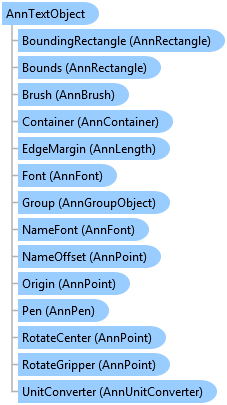

Object Model
AnnTextObject ClassAnnRectangle StructureAnnRectangle StructureAnnBrush ClassAnnContainer ClassAnnLength StructureAnnFont ClassAnnGroupObject ClassAnnFont ClassAnnPoint StructureAnnPoint StructureAnnPen ClassAnnPoint StructureAnnPoint StructureAnnUnitConverter Class
Syntax
Remarks

The text annotation object is a text string within a bounding rectangle. This class supports a pen and brush, that may be used on the bounding rectangle, if needed.
For more information, refer to Using Text in Annotation Object. For more information about the text annotation object refer to AnnTextObject. For more information about the automated text annotation object, refer to Annotation Objects - Automated Features.

Example

Private Sub AnnTextObject_AnnTextObject(ByVal container As AnnContainer, ByVal textString As String)
   Dim text As AnnTextObject = New AnnTextObject()
   text.Pen = New AnnPen(Color.Red, New AnnLength(3))
   text.Text = textString
   text.Brush = Nothing
   text.Font = New AnnFont("Arial", New AnnLength(10, AnnUnit.Point), FontStyle.Regular)
   text.EdgeMargin = AnnLength.Empty
   text.Alignment = StringAlignment.Center
   text.LineAlignment = StringAlignment.Center
   text.TextRotate = AnnTextRotate.Rotate0
   text.Bounds = New AnnRectangle(100, 100, 100, 100, AnnUnit.Pixel)
   container.Objects.Add(text)
End Sub
private void AnnTextObject_AnnTextObject(AnnContainer container, string textString)
{
   AnnTextObject text = new AnnTextObject();
   text.Pen = new AnnPen(Color.Red, new AnnLength(3));
   text.Text = textString;
   text.Brush = null;
   text.Font = new AnnFont("Arial", new AnnLength(10, AnnUnit.Point), FontStyle.Regular);
   text.EdgeMargin = AnnLength.Empty;
   text.Alignment = StringAlignment.Center;
   text.LineAlignment = StringAlignment.Center;
   text.TextRotate = AnnTextRotate.Rotate0;
   text.Bounds = new AnnRectangle(100, 100, 100, 100, AnnUnit.Pixel);
   container.Objects.Add(text);
}
Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also

Reference

AnnTextObject Members
Leadtools.Annotations Namespace
