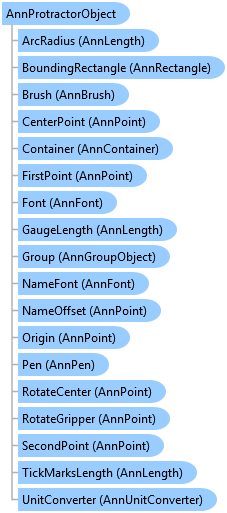

AnnProtractorObject Class

Visual Basic
C#
Objective-C
Java
C++

[SerializableAttribute()]
public class AnnProtractorObject : AnnObject, IAnnProtractorObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnProtractorObject
   Inherits AnnObject
   Implements IAnnProtractorObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnProtractorObject

[SerializableAttribute()]
public ref class AnnProtractorObject : public AnnObject, IAnnProtractorObject, IAnnRulerObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The protractor annotation object consists of two rulers joined at a point to create an angle. The center point is CenterPoint, the first line ends at FirstPoint and the second point ends at SecondPoint.
For more information, refer to Using Protractors in Annotation Objects.

For more information about the protractor annotation object refer to AnnProtractorObject. For more information about the automated protractor clip annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Protractor Tab.

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnProtractorObject_AnnProtractorObject(ByVal container As AnnContainer)
   Dim protractor As AnnProtractorObject = New AnnProtractorObject()
   protractor.Pen = New AnnPen(Color.Green, New AnnLength(3))
   protractor.CenterPoint = New AnnPoint(10.0F, 4.5F, AnnUnit.Inch)
   protractor.FirstPoint = New AnnPoint(5.0F, 20.0F, AnnUnit.Inch)
   protractor.SecondPoint = New AnnPoint(20.56F, 40.3F, AnnUnit.Inch)
   protractor.MeasurementUnit = AnnUnit.SmartEnglish
   protractor.TickMarksLength = New AnnLength(0.5F, AnnUnit.Inch)
   protractor.ShowTickMarks = True
   protractor.GaugeLength = New AnnLength(1.0F, AnnUnit.Inch)
   protractor.ShowGauge = True
   protractor.ShowLength = True
   protractor.Precision = 2
   protractor.AngularUnit = AnnAngularUnit.Degree
   protractor.Acute = True
   protractor.AnglePrecision = 2
   protractor.ArcRadius = New AnnLength(0.5F, AnnUnit.Inch)
   container.Objects.Add(protractor)
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnProtractorObject_AnnProtractorObject(AnnContainer container)
{
   AnnProtractorObject protractor = new AnnProtractorObject();
   protractor.Pen = new AnnPen(Color.Green, new AnnLength(3));
   protractor.CenterPoint = new AnnPoint(10.0F, 4.5F, AnnUnit.Inch);
   protractor.FirstPoint = new AnnPoint(5.0F, 20.0F, AnnUnit.Inch);
   protractor.SecondPoint = new AnnPoint(20.56F, 40.3F, AnnUnit.Inch);
   protractor.MeasurementUnit = AnnUnit.SmartEnglish;
   protractor.TickMarksLength = new AnnLength(0.5F, AnnUnit.Inch);
   protractor.ShowTickMarks = true;
   protractor.GaugeLength = new AnnLength(1.0F, AnnUnit.Inch);
   protractor.ShowGauge = true;
   protractor.ShowLength = true;
   protractor.Precision = 2;
   protractor.AngularUnit = AnnAngularUnit.Degree;
   protractor.Acute = true;
   protractor.AnglePrecision = 2;
   protractor.ArcRadius = new AnnLength(0.5F, AnnUnit.Inch);
   container.Objects.Add(protractor);
}
