LEADTOOLS Annotations (Leadtools.Annotations assembly)

AnnRulerObject Class

Show in webframe
Example





Members
This class provides support for creating and managing Ruler annotation objects.

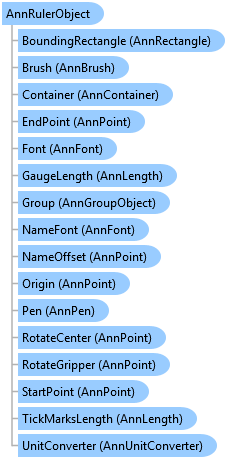

Object Model
Syntax
Remarks
The annotation ruler object is characterized by starting and ending points, a bounding rectangle, a pen, a length, tick marks, and a gauge. The pen is inherited from the AnnDrawable class.
For more information, refer to Using Rulers in Annotation Objects.

For more information about the ruler annotation object refer to AnnRulerObject. For more information about the automated ruler annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Ruler Tab.

Example
Copy Code
Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnRulerObject_AnnRulerObject(ByVal container As AnnContainer)
   Dim ruler As AnnRulerObject = New AnnRulerObject()
   ruler.StartPoint = New AnnPoint(10.0F, 4.5F, AnnUnit.Inch)
   ruler.EndPoint = New AnnPoint(20.56F, 40.3F, AnnUnit.Inch)
   ruler.MeasurementUnit = AnnUnit.SmartEnglish
   ruler.TickMarksLength = New AnnLength(0.5F, AnnUnit.Inch)
   ruler.ShowTickMarks = True
   ruler.GaugeLength = New AnnLength(1.0F, AnnUnit.Inch)
   ruler.ShowGauge = True
   ruler.ShowLength = True
   ruler.Precision = 2
   ruler.Pen = New AnnPen(Color.Red, New AnnLength(4))
   container.Objects.Add(ruler)
End Sub
using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnRulerObject_AnnRulerObject(AnnContainer container)
{
   AnnRulerObject ruler = new AnnRulerObject();
   ruler.StartPoint = new AnnPoint(10.0F, 4.5F, AnnUnit.Inch);
   ruler.EndPoint = new AnnPoint(20.56F, 40.3F, AnnUnit.Inch);
   ruler.MeasurementUnit = AnnUnit.SmartEnglish;
   ruler.TickMarksLength = new AnnLength(0.5F, AnnUnit.Inch);
   ruler.ShowTickMarks = true;
   ruler.GaugeLength = new AnnLength(1.0F, AnnUnit.Inch);
   ruler.ShowGauge = true;
   ruler.ShowLength = true;
   ruler.Precision = 2;
   ruler.Pen = new AnnPen(Color.Red, new AnnLength(4));
   container.Objects.Add(ruler);
}
Requirements

Target Platforms

See Also

Reference

AnnRulerObject Members
Leadtools.Annotations Namespace
