RasterImageViewer Class

Represents a scrollable control that displays a LEADTOOLS Leadtools.RasterImage with optional interactive UI operations.

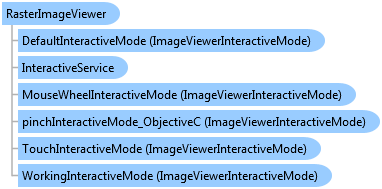

Object Model

Syntax

C#
Visual Basic (Declaration)
WinRT C#
Objective-C
Java
WinRT JavaScript

public class RasterImageViewer : ImageViewer

Public Class RasterImageViewer
   Inherits ImageViewer

public sealed class RasterImageViewer : ImageViewer

public class RasterImageViewer extends ImageViewer

function Leadtools.Controls.RasterImageViewer()

Remarks

Usage

To use the RasterImageViewer class in your Windows Runtime application please see Using LEADTOOLS Viewer Controls in Visual Studio for WinRT (Windows Store)

The RasterImageViewer class derives from ImageViewer and adds functionality to display a LEADTOOLS Leadtools.RasterImage object in Windows Runtime applications. To display an ImageSource or one of its derived classes, use the ImageViewer control.

Features

In addition to all the features supported by the ImageViewer class, RasterImageViewer adds the following:

Viewing a LEADTOOLS Leadtools.RasterImage object in Windows Runtime applications using the Image property.
In Windows Runtime, an image that is displayed must be an ImageSource or one of its derived classes, the RasterImageViewer control keeps the ImageViewer.Source property synchronized with RasterImageViewer.Image, any changes that occur to the LEADTOOLS Leadtools.RasterImage is reflected in the Source property. This control will subscribe to the RasterImage.Changed to monitor any changes that may occur to the image (through image processing for example) and reflect these changes to the Source property.

Example

C#
Visual Basic
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

using Leadtools;
using Leadtools.Codecs;
using Leadtools.Controls;

[TestMethod]
public async Task RasterImageViewerExample()
{
   Uri imageUrl = new Uri("ms-appx:///Assets/PngImage2.png");
   // Zoom current image by a 2
   _viewer.Zoom(ImageViewerSizeMode.None, 2, _viewer.ImageControlCenter);

   // Scroll by 100 and 200 pixels
   _viewer.ScrollBy(new Point(100, 200));

   // Tell the _viewer to not change the scale factor and scroll position when a new image is set
   // The easiest way is to get all options then remove the ones you do not want to change
   ImageViewerNewImageResetOptions resetOptions = ImageViewerNewImageResetOptions.All;
   resetOptions &= ~(ImageViewerNewImageResetOptions.ScaleFactor | ImageViewerNewImageResetOptions.ScrollOffset);
   _viewer.NewImageResetOptions = resetOptions;

   using (RasterCodecs codecs = new RasterCodecs())
   {
      StorageFile imageFile = await StorageFile.GetFileFromApplicationUriAsync(imageUrl);
      _viewer.Image = await codecs.LoadAsync(LeadStreamFactory.Create(imageFile));
   }
}

Requirements

Target Platforms

Reference

RasterImageViewer Members
Leadtools.Controls Namespace
