PAINTSHAPE

typedef struct _PAINTSHAPE
{
   L_INT nSize;
   L_UINT32 dwMask;
   PAINTSHAPEBACKSTYLE nBackgroundStyle;
   COLORREF crBackgroundColor;
   pBITMAPHANDLE pBackgroundTileBitmap;
   PAINTSHAPEBORDERSTYLE nBorderStyle;
   L_INT nBorderWidth;
   PAINTSHAPEBORDERBRUSHSTYLE nBorderBrushStyle;
   COLORREF crBorderColor;
   HBITMAP hBorderTileBitmap;
   PAINTSHAPEGRADIENTSTYLE nGradientStyle;
   COLORREF crGradientStartColor;
   COLORREF crGradientEndColor;
   L_UINT    uGradientSteps;
   PAINTSHAPEBORDERENDCAP nBorderEndCap;
   L_INT nRoundRectEllipseWidth;
   L_INT nRoundRectEllipseHeight;
   L_INT nOpacity;
   pBITMAPHANDLE pTexture;
} PAINTSHAPE, *pPAINTSHAPE;

The PAINTSHAPE structure holds information about shapes.

Member	Description
nSize	Size of this structure.
dwMask	Flags that indicate which structure members contain valid information. Possible values are:

	Value	Meaning
	PSF_ALL	All the fields contain valid data.
	PSF_BACKGROUNDSTYLE	The nBackgroundStyle field contains valid data.
	PSF_BACKGROUNDCOLOR	The crBackgroundColor field contains valid data.
	PSF_BACKGROUNDTILEBITMAP	The pBackgroundTileBitmap field contains valid data.
	PSF_BORDERSTYLE	The nBorderStyle field contains valid data.
	PSF_BORDERWIDTH	The nBorderWidth field contains valid data.
	PSF_BORDERBRUSHSTYLE	The nBorderBrushStyle field contains valid data.
	PSF_BORDERCOLOR	The crBorderColor field contains valid data.
	PSF_BORDERTILEBITMAP	The hBorderTileBitmap field contains valid data.
	PSF_GRADIENTSTYLE	The nGradientStyle field contains valid data.
	PSF_GRADIENTSTARTCOLOR	The crGradientStartColor field contains valid data.
	PSF_GRADIENTENDCOLOR	The crGradientEndColor field contains valid data.
	PSF_GRADIENTSTEPS	The uGradientSteps field contains valid data.
	PSF_BORDERENDCAP	The nBorderEndCap field contains valid data.
	PSF_ROUNDRECTELLIPSEWIDTH	The nRoundRectEllipseWidth field contains valid data.
	PSF_ROUNDRECTELLIPSEHEIGHT	The nRoundRectEllipseHeight field contains valid data.
	PSF_OPACITY	The nOpacity field contains valid data.
	PSF_TEXTURE	The pTexture field contains valid data.
	The values can be combined using the bitwise OR operator ( \| )
nBackgroundStyle	An enumerated type that indicates the shape's background style. For a list of possible values, refer to PAINTSHAPEBACKSTYLE.

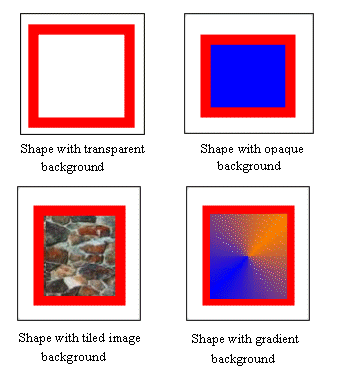

	$image\PntBkgnd.gif$
crBackgroundColor	The COLORREF value that specifies the color to use for the shape's background color, when nBackgroundStyle is PAINT_SHAPE_BACK_STYLE_OPAQUE.
pBackgroundTileBitmap	Pointer to the bitmap handle referencing the bitmap to be used for the shape's background, when nBackgroundStyle is PAINT_SHAPE_BACK_STYLE_TILEDIMAGE. The BITMAPHANDLE pointer should still be valid after setting this field.
nBorderStyle	An enumerated type that indicates the shape's border style. For a list of possible values, refer to PAINTSHAPEBORDERSTYLE.
nBorderWidth	Value indicating the shape's border width, in pixels. Valid values are 1 to 100.

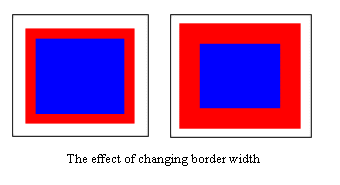

	$image\PntBdrW.gif$
nBorderBrushStyle	Value indicating the brush style to be used to draw the shape's border. For a list of possible values, refer to PAINTSHAPEBORDERBRUSHSTYLE.
	$image\PntBdrBsh.gif$
crBorderColor	The COLORREF value that specifies the color to be used to draw the shape's border.
hBorderTileBitmap	Specifies the DDB to be used to draw the shape's border. The DDB, should still be valid after setting this field.
nGradientStyle	Specifies the shape's background gradient type when nBackgroundStyle is PAINT_SHAPE_BACK_STYLE_GRADIENT. For a list of possible values, refer to PAINTSHAPEGRADIENTSTYLE.
crGradientStartColor	The COLORREF value that specifies the color to use as the starting color for the background gradient fill.
crGradientEndColor	The COLORREF value that specifies the color to use as the ending color for the background gradient fill.
uGradientSteps	Number of gradient color steps. Valid values are 2 to 255.
	$image\PntGrdStp.gif$
nBorderEndCap	An enumerated type that indicates how the ends of lines will be drawn. For a list of possible values, refer to PAINTSHAPEBORDERENDCAP.

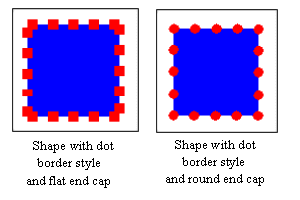

	$image\PntBdrCap.gif$
nRoundRectEllipseWidth	Value indicating the width, in pixels, of the ellipse used to create a rounded rectangle. Valid values are 0 to 500.
nRoundRectEllipseHeight	Value indicating the height, in pixels, of the ellipse used to create a rounded rectangle. Valid values are 0 to 500.
nOpacity	Value indicating the transparency of the shape when combined with the painting canvas. Valid values are 0 to 255. A color or an image with an opacity of 255 is transparent a color or an image with an opacity of 0 is completely opaque (solid).

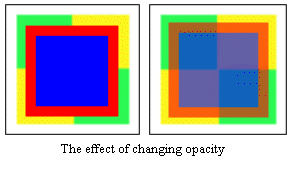

	$image\PntShpOpc.gif$
pTexture	Pointer to the bitmap handle that references the bitmap used to simulate paper texture. This makes it appear as if the painting is done on paper having that texture. The BITMAPHANDLE pointer should still be valid after setting this field.

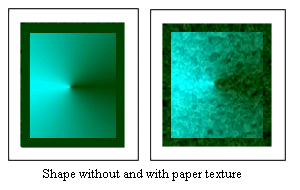

	$image\PntShpTxr.gif$

Comments

The default values for this structure are:

nSize = sizeof (PAINTSHAPE)
nBackgroundStyle = PAINT\_SHAPE\_BACK\_STYLE\_OPAQUE
crBackgroundColor = RGB (255, 255, 255)
pBackgroundTileBitmap = NULL
nBorderStyle = PAINT\_SHAPE\_BORDER\_STYLE\_SOLID
nBorderWidth = 1
nBorderBrushStyle = PAINT\_SHAPE\_BORDER\_BRUSH\_STYLE\_COLOR
crBorderColor = RGB (0,0,0)
hBorderTileBitmap = NULL
nGradientStyle = PAINT\_SHAPE\_GRADIENT\_STYLE\_RECTANGLE\_TO\_C
crGradientStartColor = RGB (0,0,0)
crGradientEndColor = RGB (255, 255, 255)
uGradientSteps = 255
nBorderEndCap = PAINT\_SHAPE\_BORDER\_ENDCAP\_SQUARE
nRoundRectEllipseWidth = 0
nRoundRectEllipseHeight = 0
nOpacity = 0
pTexture = NULL

pPAINTSHAPE is a pointer to a PAINTSHAPE structure.
