PAINTTEXT

typedef struct _PAINTEXT
{
   L_INT nSize;
   L_UINT32 dwMask;
   LPTSTR pszText;
   HFONT hFont;
   PAINTTEXTBORDERBRUSHSTYLE nBorderBrushStyle;
   L_INT nBorderWidth;
   COLORREF crBorderColor;
   PAINTTEXTBACKSTYLE nBackgroundStyle;
   COLORREF crBackgroundColor;
   pBITMAPHANDLE    pBackgroundTileBitmap;
   PAINTALIGNMENT nAlignment;
   L_INT nOpacity;
   pBITMAPHANDLE    pTexture;
   PAINTTRANSFORM TransformInfo;
} PAINTEXT, *pPAINTEXT;

The PAINTTEXT structure contains information for drawing text.

Member	Description
nSize	Size of this structure.
dwMask	Flags that indicate which structure members contain valid information. Possible values are:
	Value	Meaning
	PTF_ALL	All the fields contain valid data.
	PTF_TEXT	The pszText field contains valid data.
	PTF_FONT	The hFont field contains valid data.
	PTF_BORDERBRUSHSTYLE	The nBorderBrushStyle field contains valid data.
	PTF_BORDERWIDTH	The nBorderWidth field contains valid data.
	PTF_BORDERCOLOR	The crBorderColor field contains valid data.
	PTF_BACKGROUNDSTYLE	The nBackgroundStyle field contains valid data.
	PTF_BACKGROUNDCOLOR	The crBackgroundColor field contains valid data.
	PTF_BACKGROUNDTILEBITMAP	The pBackgroundTileBitmap field contains valid data.
	PTF_ALIGNMENT	The nAlignment field contains valid data.
	PTF_OPACITY	The nOpacity field contains valid data.
	PTF_TEXTURE	The pTexture field contains valid data.
	PTF_TRANSFORMINFO	The TransformInfo field contains valid data.
	The values can be combined using the bit-wise OR operator ( \| ).
pszText	Character string that contains the string to be drawn. The toolkit will copy this string to its internal data.
hFont	The font used to paint the text. This font should be a true type font. The toolkit will not copy this handle. Therefore, this font handle should still be valid after setting this field.
nBorderBrushStyle	An enumerated type that indicates the text border (outline) style. For a list of possible values, refer to PAINTTEXTBORDERBRUSHSTYLE.
nBorderWidth	Value that indicates the width or the text border, in pixels. Valid values are 1 to 100.
crBorderColor	The COLORREF value that specifies the color to use to draw the text border (outline).
nBackgroundStyle	An enumerated type that indicates the text background style. For a list of possible values, refer to PAINTTEXTBACKSTYLE.
crBackgroundColor	The COLORREF value that specifies the color to use for filling the text background when nBackgroundStyle is PAINT_TEXT_BACK_STYLE_OPAQUE.
pBackgroundTileBitmap	Pointer to the bitmap handle referencing the bitmap used to fill the text background when nBackgroundStyle is PAINT_TEXT_BACK_STYLE_TILEDIMAGE. The BITMAPHANDLE pointer should still be valid after setting this field.
nAlignment	An enumerated type that indicates text alignment. For a list of possible values, refer to PAINTALIGNMENT.

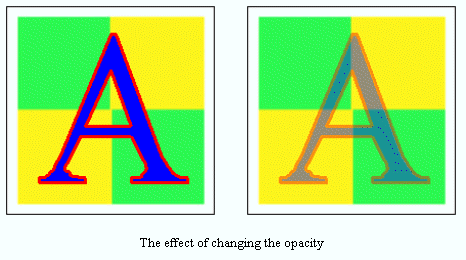

nOpacity	Value that indicates the transparency of the text when combined with the painting canvas. Valid values are 0 to 255. A color or an image with nOpacity of 255 is transparent. A color or an image with nOpacity of 0 is completely opaque (solid).
	$image\PntTxtOpc.gif$

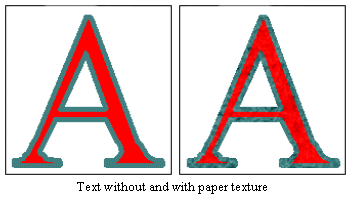

pTexture	Pointer to the bitmap handle referencing the bitmap that will simulate paper texture. Using a paper texture gives the appearance of painting on paper having that texture. The BITMAPHANDLE pointer should still be valid after setting this field.
	$image\PntTxtTxr.gif$

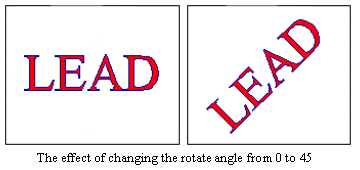

TransformInfo	Structure that contains information used to transform the text output.
	The nRotate structure field of TransformInfo will effect the text output result only when the nAlignment field is: (PAINT_ALIGNMENT_HCENTER \| PAINT_ALIGNMENT_VCENTER )
	Otherwise, the toolkit will consider nRotate to be 0.
	$image\PntTxtTrm1.gif$

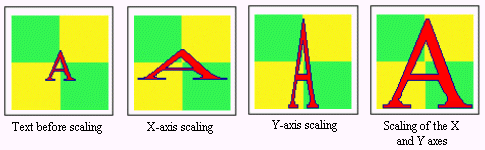

	$image\PntTxtTrm2.gif$

Comments

The default values for this structure are:

nSize = sizeof (PAINTTEXT)
pszText = NULL
hFont = NULL
nBorderBrushStyle = PAINT\_TEXT\_BORDER\_BRUSH\_STYLE\_COLOR
nBorderWidth = 1
crBorderColor = RGB (0, 0, 0)
nBackgroundStyle = PAINT\_TEXT\_BACK\_STYLE\_OPAQUE
crBackgroundColor = RGB (255, 255, 255)
pBackgroundTileBitmap = NULL
nAlignment = PAINT\_ALIGNMENT\_HCENTER|PAINT\_ALIGNMENT\_VCENTER
nOpacity = 0
pTexture = NULL
TransformInfo.nRotate = 0
TransformInfo.Scale.cx = 100
TransformInfo.Scale.cy = 100
