AnnHotspotObject Class

C#
Visual Basic
Objective-C
Java
C++

[SerializableAttribute()]
public class AnnHotspotObject : AnnImageObject, IAnnPictureObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnHotspotObject
   Inherits AnnImageObject
   Implements IAnnPictureObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnHotspotObject

[SerializableAttribute()]
public ref class AnnHotspotObject : public AnnImageObject, IAnnPictureObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

The hot spot annotation object is designed to work as a scaled picture inside a rectangle. The hot spot object will draw the picture if the owner container that is in design mode. If the container is in run mode, the hot spot object will not draw the picture.

The AnnHotspotObject class inherits the AnnImageObject class and accesses the common AnnImageObject.Picture property mentioned above through this inheritance.

For more information about the hotspot annotation object refer to AnnHotspotObject. For more information about the automated hotspot annotation object, refer to Annotation Objects - Automated Features and Automated Annotations - Hotspot Picture Tab.

This example creates a hotspot object.

C#
Visual Basic
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnHotspotObject_AnnHotspotObject(ByVal container As AnnContainer)
   Dim hotspot As AnnHotspotObject = New AnnHotspotObject()
   hotspot.Bounds = New AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel)
   container.Objects.Add(hotspot)
End Sub

using Leadtools;
   using Leadtools.Annotations;
   using Leadtools.Codecs;
   using Leadtools.WinForms;

   private void AnnHotspotObject_AnnHotspotObject(AnnContainer container)
{
   AnnHotspotObject hotspot = new AnnHotspotObject();
   hotspot.Bounds = new AnnRectangle(100, 200, 400, 600, AnnUnit.Pixel);
   container.Objects.Add(hotspot);
}

Target Platforms

Reference

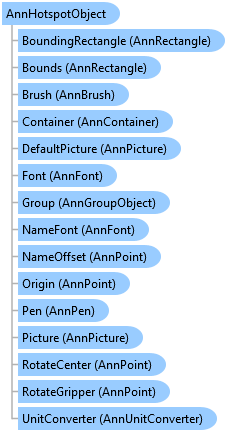

AnnHotspotObject Members
Leadtools.Annotations Namespace
