Tension Property

Summary

Gets or sets a value that specifies the amount that this AnnCurveObject curve bends between control points.

Syntax

Objective-C

C++/CLI

Java

Python

public double Tension { get; set; }

@property (nonatomic, assign) double tension;

public double getTension()
public void setTension(double tension)

public:
   property double Tension
   {
      double get()
      void set(double value)
   }

Tension # get and set (AnnCurveObject)

Property Value

A value that specifies the amount that this AnnCurveObject curve bends between control points.

Remarks

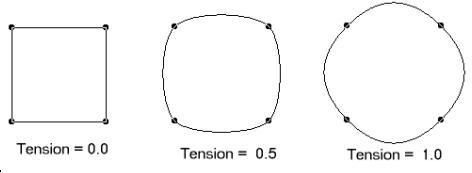

Valid values are between 0.0 and 1.0, where 0.0 indicates straight lines, and 1.0 indicates lines with the highest curvature. A typical value is 0.5. These values for Tension for a Closed Curve object are shown in the following bitmap:
