public class MedicalViewerFusion
public ref class MedicalViewerFusion
For example, soft tissue information from a PET scan can be combined with a CT scan, creating an anatomical context for the soft tissue information. As a result, diagnosis and treatment of ailments are improved. For more information, refer to MedicalViewerFusion.
Head and Neck CT/PET Data Set | ||
---|---|---|
![]() |
![]() |
![]() |

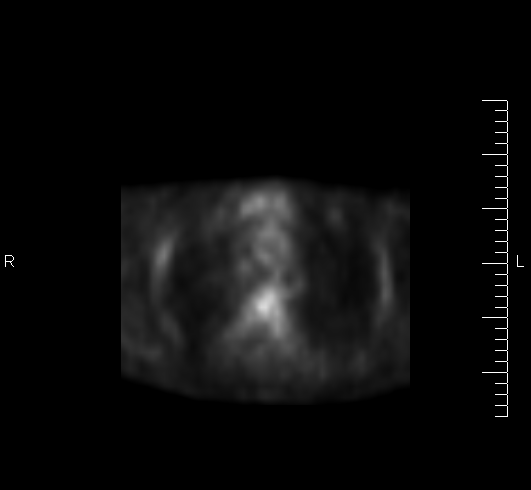

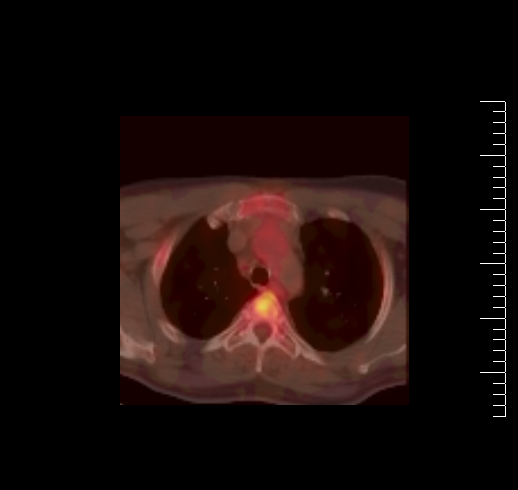

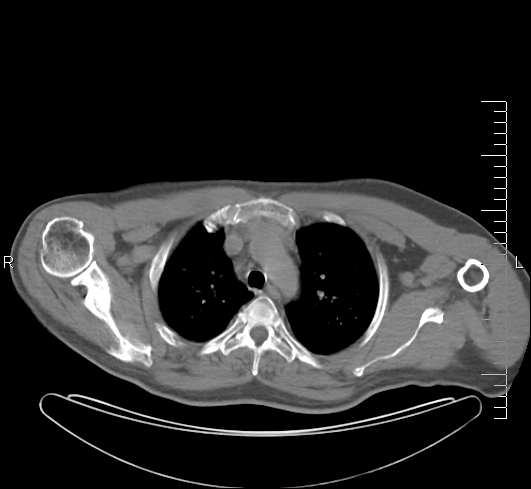

1. CT Scan Image | 2. PET Image | 3. CT/PET Fused Image |
using Leadtools;
using Leadtools.Dicom;
using Leadtools.Medical3D;
using Leadtools.Codecs;
using Leadtools.MedicalViewer;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Annotations.Engine;
using Leadtools.Annotations.Designers;
class MedicalViewerFusionForm : Form
{
private MedicalViewer _medicalViewer;
void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
{
_medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
}
public MedicalViewerFusionForm()
{
DicomEngine.Startup();
RasterCodecs _codecs = new RasterCodecs();
this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);
// Create the medical viewer and adjust the size and the location.
_medicalViewer = new MedicalViewer(1, 2);
_medicalViewer.Location = new Point(0, 0);
_medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
// Load an image and then add it to the control.
RasterImage _image = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "xa.dcm"));
MedicalViewerMultiCell cell = new MedicalViewerMultiCell(_image, true, 1, 1);
cell.FitImageToCell = false;
// add some action that will be used to change the properties of the images inside the control.
cell.AddAction(MedicalViewerActionType.Scale);
cell.AddAction(MedicalViewerActionType.Offset);
cell.AddAction(MedicalViewerActionType.WindowLevel);
cell.AddAction(MedicalViewerActionType.Stack);
// assign the added actions to a mouse button, meaning that when the user click and drag the mouse button, the associated action will be activated.
cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);
cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);
// Creates a new fusion object, this object will hold the image (image3.dcm) that will be fused with the original image (xa.dcm).
MedicalViewerFusion fusion = new MedicalViewerFusion();
// the fused image.
fusion.FusedImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "image3.dcm"));
// the fusion scale.
fusion.FusionScale = 0.5f;
// the color palette that will be used in the fusion process.
fusion.ColorPalette = MedicalViewerPaletteType.Cool;
// start the fusion.
cell.SubCells[0].Fusion.Add(fusion);
_medicalViewer.Cells.Add(cell);
// adjust some properties to the cell and add some tags.
_medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
_medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
_medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
_medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
_medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);
cell.ScaleType = MedicalViewerScaleType.Dynamic;
Controls.Add(_medicalViewer);
_medicalViewer.Dock = DockStyle.Fill;
DicomEngine.Shutdown();
}
void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
{
}
public MedicalViewer Viewer
{
get { return _medicalViewer; }
}
}
MedicalViewerFusionForm GetMedicalViewerFusionForm()
{
return new MedicalViewerFusionForm();
}
// This examples fuses the xa.dcm image with the image3.dcm image, and uses the preset palette (Cool) to do the fusion process.
public void MedicalViewerFusionExample()
{
MedicalViewerFusionForm myForm = GetMedicalViewerFusionForm();
MedicalViewer medicalViewer = myForm.Viewer;
myForm.ShowDialog();
}
static class LEAD_VARS
{
public const string ImagesDir = @"C:\LEADTOOLS22\Resources\Images";
}
