ZigZagCommandBitmapEffect Class
See Also  Members
Leadtools.Windows.Media.Effects.SpecialEffects Namespace : ZigZagCommandBitmapEffect Class




Radially distorts the image by creating waves that twist the image around a specified center. This command is available in the Raster Pro and above toolkits.

Syntax

Visual Basic (Declaration)
Public Class ZigZagCommandBitmapEffect
   Inherits RasterCommandBitmapEffect
Visual Basic (Usage)Copy Code
Dim instance As ZigZagCommandBitmapEffect
C#
public class ZigZagCommandBitmapEffect : RasterCommandBitmapEffect
Managed Extensions for C++
public __gc class ZigZagCommandBitmapEffect : public RasterCommandBitmapEffect
C++/CLI
public ref class ZigZagCommandBitmapEffect : public RasterCommandBitmapEffect

Example

Run the ZigZagCommandBitmapEffect on an image and apply the ZigZag filter.

Remarks

  • As an example, if you use the following image:

    And you were to call ZigZagCommandBitmapEffect using the following settings:
    Parameter Value
    Amplitude 47
    Attenuation 92
    Frequency 13
    Phase -162
    CenterPoint (192, 82)
    FillColor Black
    Flags Color | RadialWave

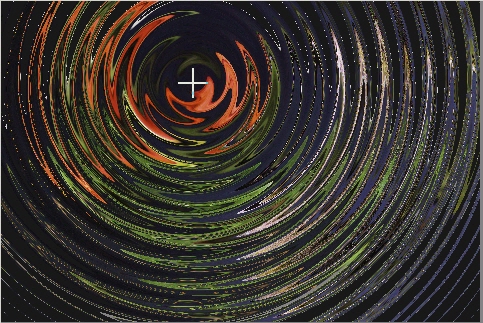

    The following figure results:

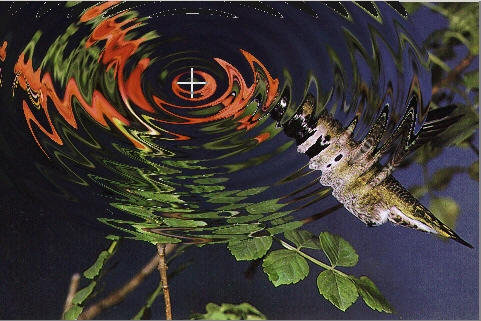

    As another settings, if you use the same settings except you use the PondRippleWave flag, the following figure results:
  • This command supports 12 and 16-bit grayscale and 48 and 64-bit color images. Support for 12 and 16-bit grayscale and 48 and 64 bit color images is available only in the Document/Medical toolkits.
  • This command does not support signed data images.
  • This command does not support 32-bit grayscale images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.ZigZagCommandBitmapEffect

Requirements

Target Platforms: Microsoft .NET Framework 2.0, Windows 98, Windows NT 4.0, Windows Millennium Edition, Windows 2000, Windows XP Home Edition, Windows XP Professional, Windows Server 2003 family
