ShowOpenDlg method (ILEADRasterDlgFile)

Syntax	short ShowOpenDlg(long hWnd);
Overview	Refer to Using Imaging Common Dialogs

Remarks

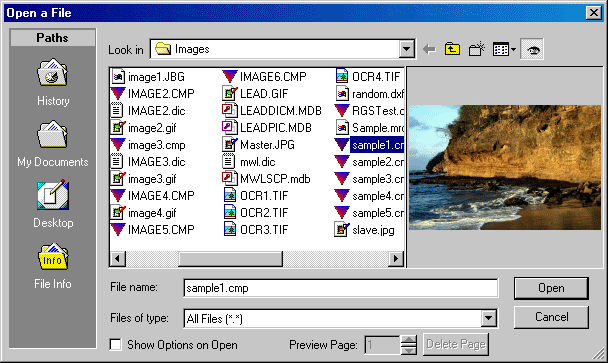

Displays the Open dialog for getting the filename to open, file information, and applicable options.

You may want to set one or more of the following properties prior to calling this method:

Filter property	FilterIndex property
FileName property	InitialDir property
DialogTitle property	FileDlgFlags property

Available options for the FileDlgFlags property are:

Value	Meaning
OPEN_ALLOWMULTI	[0x00000200] allow selection of multiple files
OPEN_NOCHANGEDIR	[0x00000008] restore directory to original after closing

The layout and action of the dialog depends on the flags set in the UIFlags property. Possible options are:

Value	Meaning
OPEN_SHOW_CONTEXTHELP	[0x00000001] dialog should contain a context sensitive help icon.
OPEN_SHOW_PROGRESSIVE	[0x00000002] the File Load Options will contain the Progressive Passes option.
OPEN_SHOW_MULTIPAGE	[0x00000004] the File Load Options will contain the Multi-page options.
OPEN_SHOW_LOADROTATED	[0x00000008] the File Load Options will contain the Load-Rotated option.
OPEN_SHOW_LOADCOMPRESSED	[0x00000010] the File Load Options will contain the load-compressed option.
OPEN_SHOW_FILEINFO	[0x00000020] dialog should have the File-Info button.
OPEN_SHOW_PREVIEW	[0x00000040] dialog should have a preview window to preview the selected file image.
OPEN_SHOW_DELPAGE	[0x00000080] dialog should have a delete button to delete a page in a multi-page image file.
OPEN_SHOW_LOADOPTIONS	[0x00000100] dialog should contain the "Show Load Options" check box
OPEN_VIEWTOTALPAGES	[0x00010000] Show the total number of pages on the file info dialog.
OPEN_ENABLESIZING	[0x00020000] dialog should contain the Enable Sizing option.
OPEN_NOFILEMUSTEXIST	[0x00040000] Do not verify that the file exists.
OPEN_NOPATHMUSTEXIST	0x00080000] Do not verify that the path exists.
OPEN_USEFILESTAMP	[0x00100000] dialog should preview the stamp in the image file, if it contains a stamp.
OPEN_LOADBITMAP	[0x00200000] Load the image when the Open button is pressed and fill the Main control Bitmap property.
OPEN_GENERATETHUMBNAIL	[0x00400000] Generate the image thumbnail or create one when the Open button is pressed and update the Thumbnail property.
OPEN_LOADANY	[0x04000000] Force the Open dialog to return the file name even if it is not a bitmap.

If you include OPEN_LOADBITMAP in the UIFlags property, the Common Dialog Bitmap property must be assigned a valid bitmap before calling this method.

If the UIFlags property contains OPEN_LOADBITMAP and the FileDlgFlags property does not contain OPEN_ALLOWMULTI, the LEADDlgFile.Bitmap property will be updated with the loaded bitmap.

If OPEN_SHOW_PREVIEW or OPEN_USEFILESTAMP is set in the UIFlags property and the EnableShowPreview property is set to VARIANT_TRUE, the "Enable Preview" box in the Open dialog box will be checked.

To initialize the "Load Rotated" box, the "Load Compressed" box and the "Page No." box when the dialog is displayed, set the following properties before calling this method:

PageNumber property

LoadRotated property

LoadCompressed property

Note:

If you set the PageNumber property prior to calling the ShowOpenDlg method, the value you put in PageNumber will appear when the dialog is created. If you then select a file, which has fewer pages, the maximum number of pages for that file will appear in the "Page No.:" box.

The following properties are associated with this method:

FileDlgFlags property

InitialDir property

EnableShowPreview property

OptionsFileType property

Bitmap property

Thumbnail property

PageNumber property
