AnnRichTextObject Class

This class provides support for creating and managing Rich Text annotation objects

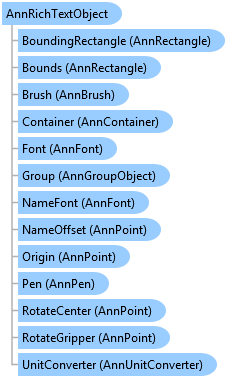

Object Model

Syntax

Visual Basic
C#
Objective-C
Java
C++

[SerializableAttribute()]
public class AnnRichTextObject : AnnRectangleObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Declaration

<SerializableAttribute()>
Public Class AnnRichTextObject
   Inherits AnnRectangleObject
   Implements System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

'Usage

Dim instance As AnnRichTextObject

[SerializableAttribute()]
public ref class AnnRichTextObject : public AnnRectangleObject, System.ICloneable, System.IDisposable, System.Runtime.Serialization.ISerializable

Remarks

The rich text annotation object (AnnRichTextObject) is a rectangle containing text that supports the Rich Text Format (RTF) file format.

This class supports a pen and brush, that may be used on the bounding rectangle, if needed.

For more information, refer to Using Text in Annotation Object.

For more information about the rich text annotation object refer to AnnRichTextObject.

For more information about the automated rich text annotation object, refer to Annotation Objects - Automated Features.

Note: the AnnRichTextObject does not support AnnFixedStateOperations.FontSize.

Example

Visual Basic
C#
WinRT C#
WinRT JavaScript
Silverlight C#
Silverlight VB

Copy Code

Imports Leadtools
Imports Leadtools.Annotations
Imports Leadtools.Codecs
Imports Leadtools.WinForms

Private Sub AnnRichTextObject_AnnRichTextObject(ByVal container As AnnContainer, ByVal rtfText As String)
   Dim richText As New AnnRichTextObject()
   richText.Pen = New AnnPen(Color.Red, New AnnLength(3))
   richText.Rtf = rtfText
   richText.Brush = Nothing
   richText.Bounds = New AnnRectangle(100, 100, 100, 100, AnnUnit.Pixel)
   container.Objects.Add(richText)
End Sub

using Leadtools;
using Leadtools.Annotations;
using Leadtools.Codecs;
using Leadtools.WinForms;

private void AnnRichTextObject_AnnRichTextObject(AnnContainer container, string rtfText)
{
   AnnRichTextObject richText = new AnnRichTextObject();
   richText.Pen = new AnnPen(Color.Red, new AnnLength(3));
   richText.Rtf = rtfText;
   richText.Brush = null;
   richText.Bounds = new AnnRectangle(100, 100, 100, 100, AnnUnit.Pixel);
   container.Objects.Add(richText);
}

Requirements

Target Platforms

Reference

AnnRichTextObject Members
Leadtools.Annotations Namespace
