PAINTDLGSHAPEINFO

typedef struct _PAINTDLGSHAPEINFO
{
   L_INT nSize;
   L_INT32 dwFlags;
   L_TCHAR * pszTitle;
   PAINTSHAPEBACKSTYLE nBackgroundStyle;
   COLORREF crBackgroundColor;
   L_TCHAR ** ppszBackgroundTileBitmap;
   L_UINT uBackgroundTileBitmapCount;
   L_INT nActiveBackgroundTileBitmapItem;
   PAINTSHAPEBORDERSTYLE nBorderStyle;
   L_INT nBorderWidth;
   PAINTSHAPEBORDERBRUSHSTYLE nBorderBrushStyle;
   COLORREF crBorderColor;
   L_TCHAR ** ppszBorderTileBitmap;
   L_UINT uBorderTileBitmapCount;
   L_INT nActiveBorderTileBitmapItem;
   PAINTSHAPEGRADIENTSTYLE nGradientStyle;
   COLORREF crGradientStartColor;
   COLORREF crGradientEndColor;
   L_UINT uGradientSteps;
   PAINTSHAPEBORDERENDCAP nBorderEndCap;
   L_INT nRoundRectEllipseWidth;
   L_INT nRoundRectEllipseHeight;
   L_INT nOpacity;
   L_TCHAR ** ppszPaperTexture;
   L_UINT uPaperTextureCount;
   L_INT nActivePaperTextureItem;
} PAINTDLGSHAPEINFO, *pPAINTDLGSHAPEINFO ;

The PAINTDLGSHAPEINFO structure contains information about the Shape dialog.

Member Description
nSize Size of this structure.
dwFlags User interface flags for the dialog. Determines the layout and action of the dialog. Possible values are
  Setting Description
  PAINT_DLG_SHAPE_SHOWALL [0x00000001] Show all controls.
  PAINT_DLG_SHAPE_SHOWBKGRNDSTYLE [0x00000002] Show Background style control.
  PAINT_DLG_SHAPE_SHOWBKOPAQUECOLOR [0x00000004] Show the opaque color control.
  PAINT_DLG_SHAPE_SHOWGRADIENTSTYLE [0x00000008] Show Gradient style control.
  PAINT_DLG_SHAPE_SHOWGRADIENTDIRECTION [0x00000010] Show Gradient direction control.
  PAINT_DLG_SHAPE_SHOWGRADIENTSTARTCOLOR [0x00000020] Show Gradient start color control.
  PAINT_DLG_SHAPE_SHOWGRADIENTENDCOLOR [0x00000040] Show Gradient end color control.
  PAINT_DLG_SHAPE_SHOWGRADIENTPREVIEW [0x00000080] Show Gradient preview control.
  PAINT_DLG_SHAPE_SHOWGRADIENTSTEPS [0x00000100] Show Gradient steps control.
  PAINT_DLG_SHAPE_SHOWBKGRNDTILE [0x00000200] Show Background tile control.
  PAINT_DLG_SHAPE_SHOWOPACITY [0x00000400] Show Opacity control.
  PAINT_DLG_SHAPE_SHOWBORDERSTYLE [0x00000800] Show Border style control.
  PAINT_DLG_SHAPE_SHOWBORDERWIDTH [0x00001000] Show Border width control.
  PAINT_DLG_SHAPE_SHOWBORDERBRUSHSTYLE [0x00002000] Show Border brush style control.
  PAINT_DLG_SHAPE_SHOWBORDERCOLOR [0x00004000] Show Border color control
  PAINT_DLG_SHAPE_SHOWBORDERPATTERN [0x00008000] Show Border pattern control
  PAINT_DLG_SHAPE_SHOWENDCAP [0x00010000] Show End cap control
  PAINT_DLG_SHAPE_SHOWELLIPSEWIDTH [0x00020000] Show Ellipse width control
  PAINT_DLG_SHAPE_SHOWELLIPSEHEIGHT [0x00040000] Show Ellipse height control
  PAINT_DLG_SHAPE_SHOWTEXTURE [0x00080000] Show Paper texture control
  PAINT_DLG_SHAPE_SHOWDEFAULT [0x00100000] Show Default control
  PAINT_DLG_SHAPE_INITUSEDEFAULT [0x00200000] Use the initial default values for the dialog control
pszTitle Character string containing the Dialog box caption text.
nBackgroundStyle An enumerated type that indicates the background style. For a list of possible values, refer to PAINTSHAPEBACKSTYLE.
crBackgroundColor COLORREF value that specifies the color to be used to fill the shape when nBackgroundStyle is PAINT_SHAPE_BACK_STYLE_OPAQUE.
ppszBackgroundTileBitmap Array of strings containing the names of the images used to fill the background tile bitmap combo box.
uBackgroundTileBitmapCount Number of strings in ppszBackgroundTileBitmap.
nActiveBackgroundTileBitmapItem Index of the image currently selected in the paper texture combo box.
nBorderStyle An enumerated type that indicates the border style. For a list of possible values, refer to PAINTSHAPEBORDERSTYLE.
nBorderWidth Value indicating the width of the border, in pixels. Valid values are 1 to 100.
nBorderBrushStyle An enumerated type that indicates the brush style used to draw the shape's border. For a list of possible values, refer to PAINTSHAPEBORDERBRUSHSTYLE.
crBorderColor COLORREF value that specifies the color used to draw the shape's border.
ppszBorderTileBitmap Array of strings containing the names of the images used to fill the border tile bitmap combo box.
uBorderTileBitmapCount Number of strings in ppszBorderTileBitmap.
nActiveBorderTileBitmapItem Index of the image currently selected in the background tile combo box.
nGradientStyle An enumerated type that indicates the shape's background gradient fill style. For a list of possible values, refer to PAINTSHAPEGRADIENTSTYLE.
crGradientStartColor COLORREF value that specifies the color that will start the background gradient fill.
crGradientEndColor COLORREF value that specifies the color that will end the background gradient fill.
uGradientSteps Number of gradient color steps. Valid values are 2 to 255.
nBorderEndCap An enumerated type that indicates how the ends of lines will be drawn. For a list of possible values, refer to PAINTSHAPEBORDERENDCAP.
nRoundRectEllipseWidth Value indicating the width, in pixels, of the ellipse used to create a rounded rectangle. Valid values are 0 to 500.
nRoundRectEllipseHeight Value indicating the height, in pixels, of the ellipse used to create a rounded rectangle. Valid values are 0 to 500.
nOpacity Value indicating the transparency of the shape when combined with the painting canvas. Valid values are 0 to 255. A color or an image with an opacity of 255 is transparent a color or an image with an opacity of 0 is completely opaque (solid).
ppszPaperTexture Array of strings containing the names of the images used to fill the paper texture combo box.
uPaperTextureCount Number of strings in ppszPaperTexture.
nActivePaperTextureItem Index of the currently selected image in the paper texture combo box.

Comments

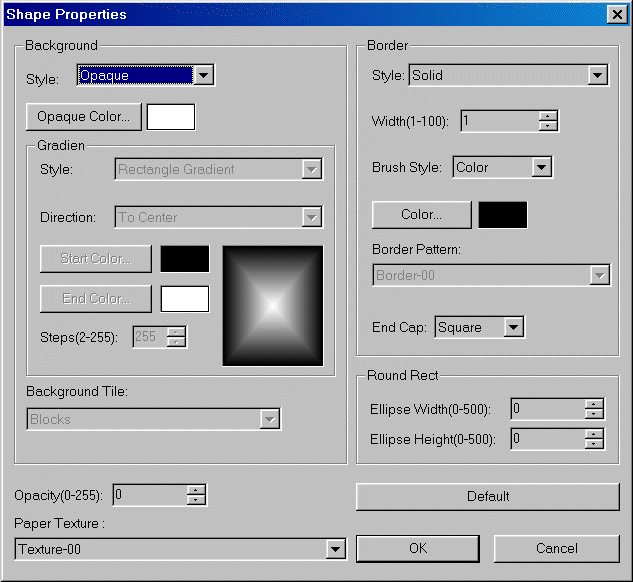

An image of the Shape dialog can be seen below.


When the uBackgroundTileBitmapCount field value is set to 0 or when the ppszBackgroundTileBitmap field value is set to NULL, the structure members shown below will automatically be set to the following values:

ppszBackgroundTileBitmap= NULL
uBackgroundTileBitmapCount= 0
nActiveBackgroundTileBitmapItem = -1

When the uBorderTileBitmapCount field value is set to 0 or when the ppszBorderTileBitmap field value is set to NULL, the structure members shown below will automatically be set to the following values:

ppszBorderTileBitmap = NULL
uBorderTileBitmapCount = 0
nActiveBorderTileBitmapItem = -1

The nActivePaperTextureItem field value will be 1 when the user selects "none" from the paper texture combo box.

When the value of the nActivePaperTextureItem is set to 1, the current selection in the paper texture combo box will be "none".

When the user presses the default button, the dialog box will reset to the default values, for all fields, except nActiveBackgroundTileBitmapItem. The nActiveBorderTileBitmapItem value will be the value it was before the last call to the Dialog box.
