PlaneCommand Class

C#
Visual Basic
WinRT C#
Objective-C
Java
WinRT JavaScript
C++

public class PlaneCommand : Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

'Declaration

Public Class PlaneCommand
   Inherits Leadtools.ImageProcessing.RasterCommand
   Implements Leadtools.ImageProcessing.IRasterCommand

'Usage

Dim instance As PlaneCommand

public sealed class PlaneCommand : Leadtools.ImageProcessing.IRasterCommand

function Leadtools.ImageProcessing.SpecialEffects.PlaneCommand()

public ref class PlaneCommand : public Leadtools.ImageProcessing.RasterCommand, Leadtools.ImageProcessing.IRasterCommand

This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the BrightLength value.
By changing CenterPoint and the viewing screen Z-offset, you can simulate moving along the axis.
If the image has a region, the effect will be applied on the region dimensions only.
For an example, see the following figure:

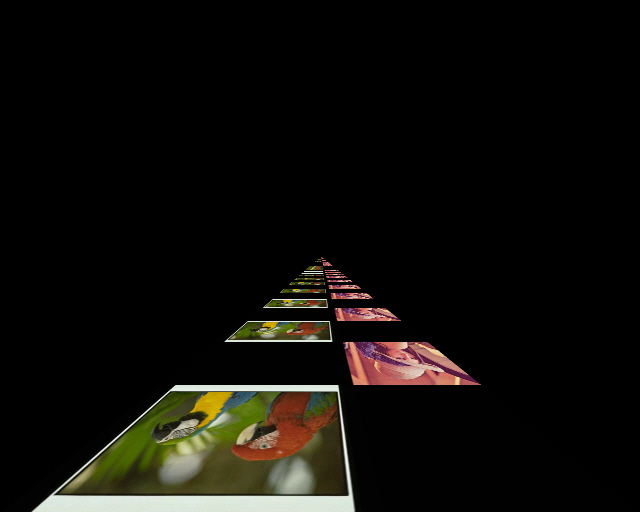

The following figure shows the same image, after the effect has been applied:

To obtain this effect, the following settings were used with the command:
1. CenterPoint = new LeadPoint(320, 256)
2. ZValue = 0
3. Distance = 256
4. PlaneOffset = 256
5. Repeat = -1
6. PyramidAngle = 0
7. Stretch = 100
8. StartBright = 0
9. EndBright = 0
10. BrightLength = 50
11. BrightColor = new Leadtools.RasterColor(255, 255, 255)
12. FillColor = new Leadtools.RasterColor(0, 0, 0)
13. Flags = PlaneCommandFlags.Down | PlaneCommandFlags.Color
14. This command does not support 32-bit grayscale images.
