PlaneBendCommand Class

Summary

Places the image on parallel planes along the Z-axis, and bends the planes toward the center point. This command is available in the Imaging and above toolkits.

Syntax

C++/CLI

Python

public class PlaneBendCommand : RasterCommand

public ref class PlaneBendCommand : public RasterCommand

class PlaneBendCommand(RasterCommand):

Remarks

This command shows the effect of placing images on planes along the Z-axis and bending them toward a specific point. These images may be placed above, below, to the left or to the right of the Z-axis. An external light source of the specified color and brightness may be shined on the images. The brightness may vary along the z-axis according to the bright length value. The line of images may be bent toward a specific point by setting a bending value.
By changing the center point and the viewing screen Z-offset, you can simulate moving along the axis.
If the image has a region, the effect will be applied on the region dimensions only.
For an example, see the following figure:

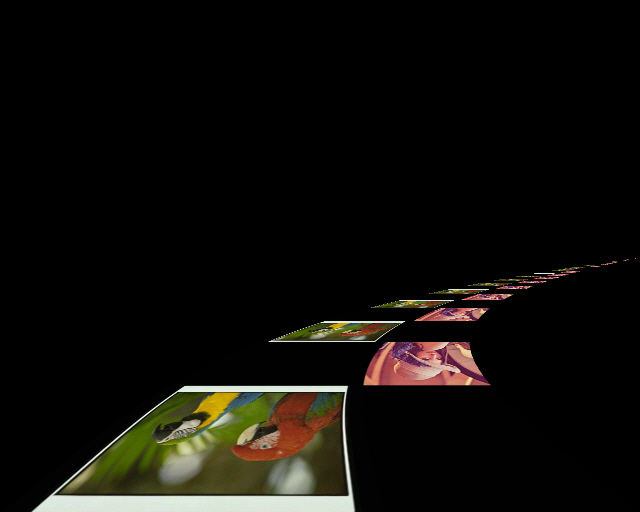

The following figure shows the same image, after the effect has been applied:

To obtain this effect, the following settings were used with the method:
1. CenterPoint = new Leadtools.LeadPoint(640, 256)
2. ZValue = 0
3. Distance = 256
4. PlaneOffset = 256
5. Repeat = -1
6. PyramidAngle = 0
7. Stretch = 100
8. BendFactor = 500
9. StartBright = 0
10. EndBright = 0
11. BrightLength = 50
12. BrightColor = new Leadtools.RasterColor(255, 255, 255)
13. FillColor = new Leadtools.RasterColor(0, 0, 0)
14. Flags = PlaneCommandFlags.Down | PlaneCommandFlags.Color
15. This command does not support 32-bit grayscale images.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.

For more information, refer to Introduction to Image Processing With LEADTOOLS. For more information, refer to Correcting Colors.

Plane Bend Function - Before

Plane Bend Function - After

View additional platform support for this Plane Bend function.

Example

Run the PlaneBendCommand on an image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;


public void PlaneBendCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   PlaneBendCommand command = new PlaneBendCommand();
   command.CenterPoint = new LeadPoint(image.Width / 2, image.Height / 2);
   command.ZValue = 0;
   command.Distance = image.Height;
   command.PlaneOffset = image.Width / 2;
   command.Repeat = -1;
   command.PyramidAngle = 0;
   command.Stretch = 100;
   command.BendFactor = 400;
   command.StartBright = 0;
   command.EndBright = 100;
   command.BrightLength = 20000;
   command.BrightColor = new RasterColor(255, 255, 255);
   command.FillColor = new RasterColor(0, 0, 0);
   command.Flags = PlaneCommandFlags.Down | PlaneCommandFlags.Up | PlaneCommandFlags.Color;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}

Requirements

Target Platforms

Reference

PlaneBendCommand Members

Leadtools.ImageProcessing.SpecialEffects Namespace
