FreeRadialBendCommand Class

Summary

Wraps the image along its radius on a 3D surface shaped by Curve. This command is available in the Imaging and above toolkits.

Syntax

C++/CLI

Python

public class FreeRadialBendCommand : RasterCommand

public ref class FreeRadialBendCommand : public RasterCommand

class FreeRadialBendCommand(RasterCommand):

Remarks

If the image has a region, the effect will be applied on the region only.
For an example, the following figure shows an image before the effect is applied.

The following figure shows the same image after the effect has been applied.
This command supports 12-bit and 16-bit grayscale and 48-bit and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit color images is available only in the Document/Medical toolkits.
This command does not support signed data images.
This command does not support 32-bit grayscale images.

For more information, refer to Correcting Colors.

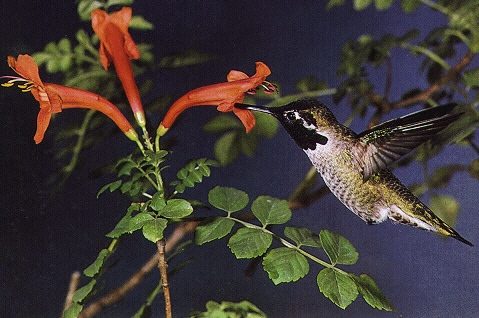

Free Radial Bend Function - Before

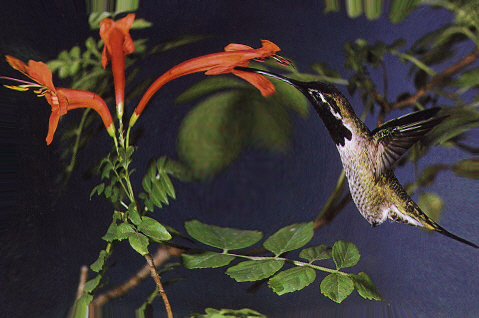

Free Radial Bend Function - After

View additional platform support for this Free Radial Bend function.

Example

Run the FreeRadialBendCommand on an image.

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;
using Leadtools.ImageProcessing.Effects;


public void FreeRadialBendCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));

   // Prepare the command
   FreeRadialBendCommand command = new FreeRadialBendCommand();
   LeadPoint[] UserPoint = new LeadPoint[4];
   LeadPoint CenterPoint = new LeadPoint(image.Width / 2, image.Height / 2);
   int[] Curve = new int[13];

   //Apply the filter
   UserPoint[0].X = 0;
   UserPoint[0].Y = 0;
   UserPoint[1].X = 3;
   UserPoint[1].Y = 10;
   UserPoint[2].X = 9;
   UserPoint[2].Y = -10;
   UserPoint[3].X = 12;
   UserPoint[3].Y = 0;

   EffectsUtilities.GetCurvePoints(Curve, UserPoint, CurvePointsType.Linear);
   for (int i = 0; i < Curve.Length; i++)
      Curve[i] /= 50;
   command.Flags = FreeRadialBendCommandFlags.Color | FreeRadialBendCommandFlags.Rotate;
   command.CenterPoint = CenterPoint;
   command.Scale = 200;
   command.FillColor = new RasterColor(255, 0, 0);
   command.Curve = Curve;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}
