AnnLineEnding Class

Summary

Defines the base class for all line ending styles.

Syntax
C#
VB
C++
public abstract class AnnLineEnding
Public MustInherit Class AnnLineEnding
public:
   ref class AnnLineEnding abstract

Remarks

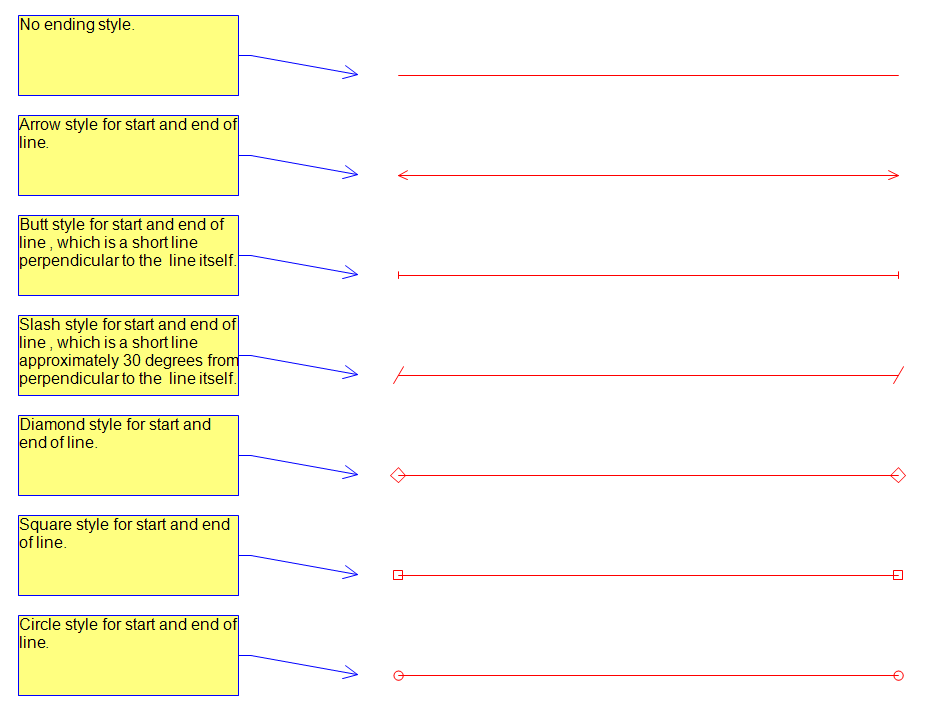

The line ending styles are the shapes that can be added to the start and end of the polyline object. The following ending styles are supported:


The AnnLineEnding class provides all the basic functionality common to all LEADTOOLS line ending styles. AnnLineEnding is an abstract class and cannot be instantiated directly. Instead, you create an instance of a derived class such as AnnArrowLineEnding or AnnButtLineEnding and use the methods and properties of the base AnnLineEnding through the derived class.

The line ending styles cannot be added to closed polyline objects.

Example

This example creates a list of polyline objects, all ending style types, and sets them to polyline objects ending styles.

C#
using LeadtoolsExamples.Common;
using Leadtools.Annotations.Automation;
using Leadtools.Annotations.Engine;
using Leadtools.Codecs;
using Leadtools.Annotations.WinForms;

public void AnnCore_AnnLineEnding()
{
   // assumes _automation is valid


   double inch = 720.0;

   // Create polyline object and add it the automation container
   AnnPolylineObject polyLine = new AnnPolylineObject();
   polyLine.Points.Add(LeadPointD.Create(1 * inch, 1 * inch));
   polyLine.Points.Add(LeadPointD.Create(2 * inch, 1 * inch));
   _automation.Container.Children.Add(polyLine);


   // Create arrow line ending style and set some properties
   AnnArrowLineEnding arrowStyle = new AnnArrowLineEnding();
   arrowStyle.Closed = true;
   arrowStyle.Reversed = true;
   arrowStyle.Fill = AnnSolidColorBrush.Create("Yellow");
   // Set the the created arrow style to polyline start and end style
   polyLine.StartStyle = arrowStyle;
   polyLine.EndStyle = arrowStyle;


   // Create another polyline object and add it the automation container
   polyLine = new AnnPolylineObject();
   polyLine.Points.Add(LeadPointD.Create(1 * inch, 1.2 * inch));
   polyLine.Points.Add(LeadPointD.Create(2 * inch, 1.2 * inch));
   _automation.Container.Children.Add(polyLine);
   // Create butt line ending style
   AnnButtLineEnding buttStyle = new AnnButtLineEnding();
   // Set the the created butt style to polyline start and end style
   polyLine.StartStyle = buttStyle;
   polyLine.EndStyle = buttStyle;


   // Create another polyline object and add it the automation container
   polyLine = new AnnPolylineObject();
   polyLine.Points.Add(LeadPointD.Create(1 * inch, 1.4 * inch));
   polyLine.Points.Add(LeadPointD.Create(2 * inch, 1.4 * inch));
   _automation.Container.Children.Add(polyLine);
   // Create slash line ending style
   AnnSlashLineEnding slashStyle = new AnnSlashLineEnding();
   // Set the the created slash style to polyline start and end style
   polyLine.StartStyle = slashStyle;
   polyLine.EndStyle = slashStyle;


   // Create another polyline object and add it the automation container
   polyLine = new AnnPolylineObject();
   polyLine.Points.Add(LeadPointD.Create(1 * inch, 1.6 * inch));
   polyLine.Points.Add(LeadPointD.Create(2 * inch, 1.6 * inch));
   _automation.Container.Children.Add(polyLine);
   // Create square line ending style
   AnnSquareLineEnding squareStyle = new AnnSquareLineEnding();
   // Set the the created square style to polyline start and end style
   polyLine.StartStyle = squareStyle;
   polyLine.EndStyle = squareStyle;


   // Create another polyline object and add it the automation container
   polyLine = new AnnPolylineObject();
   polyLine.Points.Add(LeadPointD.Create(1 * inch, 1.8 * inch));
   polyLine.Points.Add(LeadPointD.Create(2 * inch, 1.8 * inch));
   _automation.Container.Children.Add(polyLine);
   // Create diamond line ending style
   AnnDiamondLineEnding diamondStyle = new AnnDiamondLineEnding();
   // Set the the created diamond style to polyline start and end style
   polyLine.StartStyle = diamondStyle;
   polyLine.EndStyle = diamondStyle;


   // Create another polyline object and add it the automation container
   polyLine = new AnnPolylineObject();
   polyLine.Points.Add(LeadPointD.Create(1 * inch, 2 * inch));
   polyLine.Points.Add(LeadPointD.Create(2 * inch, 2 * inch));
   _automation.Container.Children.Add(polyLine);
   // Create round line ending style
   AnnRoundLineEnding roundStyle = new AnnRoundLineEnding();
   // Set the the created round style to polyline start and end style
   polyLine.StartStyle = roundStyle;
   polyLine.EndStyle = roundStyle;

}

Requirements

Target Platforms

Help Version 20.0.2020.3.31
