Programming with the DVR Components of the LEADTOOLS MPEG-2 Transport Module

The DVR components of the LEADTOOLS MPEG-2 Module make it possible to buffer and playback captured data from live and streaming video sources. The DVR components are  comprised of two main interfaces DVR Sink and DVR Source. The DVR Sink interface is responsible for writing buffer files containing previously captured multiplexed stream data.  The DVR Source interface provides an IFileSourceFilter based filter capable of reading the DVR buffer list (.LBL ) file and playing its captured data located in the recording chunk ( .LRC ) files.

With the LEAD DVR Source interface, you can pause, rewind, and fast-forward by seeking through the captured buffer data from both live video sources and UDP and TCP streams. This buffered data can also be copied as segments from the DVR buffer files. Also, the captured data arriving from the source can be written to a separate backup file.

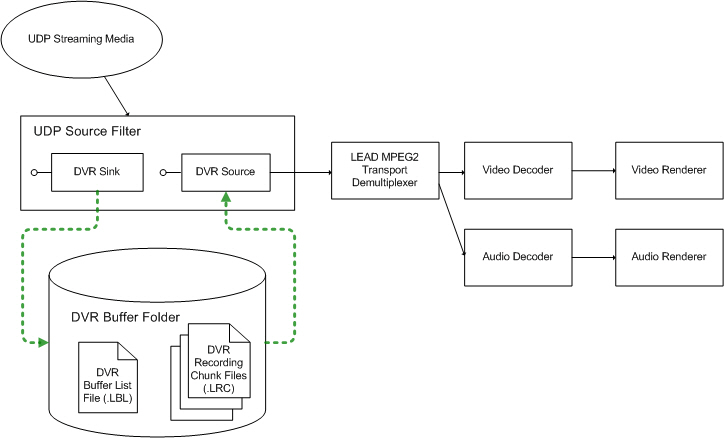

The following figure illustrates a DirectShow filter graph using the LEAD MPEG2 Transport UDP Source filter, which internally uses the DVR Sink and DVR Source filters to implement buffered capture and playback.

Figure 1. Implementation of Streaming Media Capture Using the LEAD MPEG2 Transport UDP Source Filter

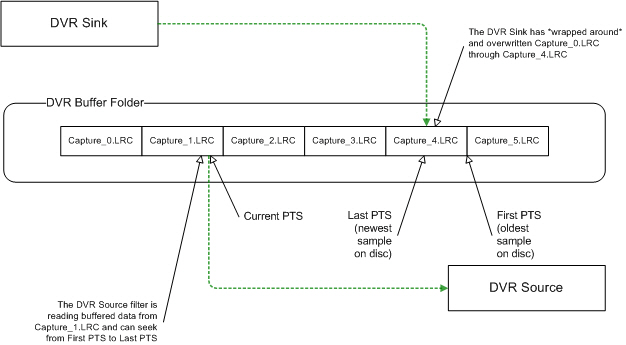

At any given time, during DVR buffered capture and playback, there is a group of buffer files that are being written and read. Figure 2 illustrates the DVR buffer data queueing strategy, with respect to DVR Sink write operations and DVR Source read operations.

Figure 2. DVR Streaming Media Buffered-Capture Strategy

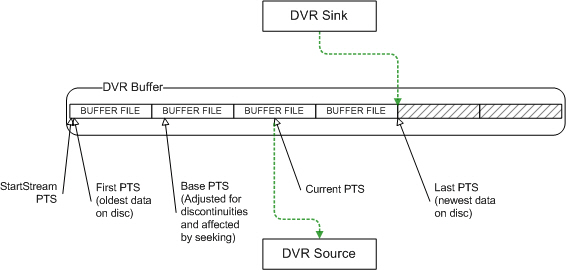

While it is not necessary to know the details of the DVR buffer storage implementation, it is still important to understand the configuration of DVR buffer files as they relate to buffered video playback, seek, and pause operations. The design of the DVR buffer queues is straightforward, but the implementation details can be subtle. The underlying data structure of the buffer storage and the buffer files comprising it is that of a circular queue . Figure 3 shows the state of the DVR buffer queue storage shortly after the start of the filter graph. The buffer folder has a FileCount of 6, but only 4 files have been created thus far:

Figure 3.  DVR Buffer queue storage state

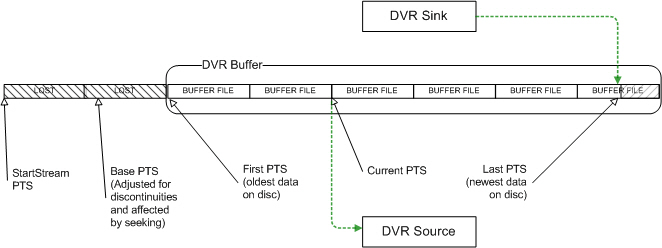

In this example, the buffer storage includes a buffer FileCount value of 6. As the circular buffer becomes full, new data arriving from the DVR Sink must still be stored. The oldest buffer file will be recycled (all previous stored data is discarded) and newly received data is written to the file. The following figure illustrates the buffer condition of lost data and buffer file reuse:

Figure 4.  DVR buffer state as queue files are recycled

Notice that the StartStreamPTS and BaseStreamPTS values in the above example refer to buffered data that was discarded to make room for new data. These values are still important for calculations of absolute and relative (DirectShow) stream times. See the table below for the different PTS time stamp values and how they are used to manage access and playback of the DVR buffer data.

Table 1.  DVR Buffer Queue Times

Table 2.  Units of Time

The methods and properties provided by the DVR components are:

• ILMDVRSink::put_FolderCount,  ILMDVRSink::put_FolderName,  and ILMDVRSink::put_BaseName Properties to set buffer folder count, folder locations and filename.

• ILMDVRSink::SetBufferSize Method to set the size and count of buffer files.

• ILMDVRSink::GetAvailabilityInfo Method to check data availability.

• ILMDVRSink::GetBufferTotalSize Method to get the current and maximum allowed number of buffer files.

• ILMDVRSink::CopyBufferToFile Method to copy buffer data to a new file.

• ILMDVRSink::StartBackupToFile and ILMDVRSink::StopBackupToFile Methods to start and stop backup file writer.

• ILMDVRSink::GetStatus Method to get the current sink status.

• ILMDVRSink::GetBufferInfo Method to get current information about a buffer folder.

• ILMDVRSource::ReadData Method to read data directly from the DVR buffers using starting offset and desired read size.

•  ILMDVRSink::CreateEvents and ILMDVRSink::FreeEvents Method to use windows event notifications to monitor buffer writes and buffer list changes.

Functions used to optimize DVR Sink performance when attributes are changed:

• ILMDVRSink ::StartChangingAttributes Method to start changing buffer configuration settings.

• ILMDVRSink ::StopChangingAttributes Method to apply or cancel changed buffer settings.

For programming examples and tutorials on using the DVR components features, please see the following How To examples:

• Using the DVR Sink to control capture buffer settings

• Setting capture buffers on more than one physical disk

• Copying buffered DVR data to a new file

• Playing a UDP Source stream with DVR functionality

• Playing a DVR buffer file
