Run the MaskConvolutionCommandBitmapEffect on an image.

Visual Basic

Copy Code

Public Sub MaskConvolutionCommandBitmapEffectExample(ByVal element As FrameworkElement)    Dim effect As MaskConvolutionCommandBitmapEffect = New MaskConvolutionCommandBitmapEffect()    effect.Angle = 9000    effect.Depth = 35    effect.Height = 0    effect.Type = MaskConvolutionCommandBitmapEffectsType.Emboss    element.BitmapEffect = effect    Dim storyboard As Storyboard = New Storyboard()    Dim animation1 As Int32Animation = New Int32Animation()    animation1.From = 1    animation1.To = 10    animation1.Duration = New Duration(TimeSpan.Parse("0:0:5"))    animation1.RepeatBehavior = RepeatBehavior.Forever    animation1.AutoReverse = True    storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")    storyboard.SetTargetProperty(animation1, New PropertyPath(MaskConvolutionCommandBitmapEffect.HeightProperty))    element.RegisterName("AnimatedBitmapEffect", effect)    storyboard.Children.Add(animation1)    storyboard.Begin(element) End Sub

C#

Copy Code

public void MaskConvolutionCommandBitmapEffectExample(FrameworkElement element)  {     MaskConvolutionCommandBitmapEffect effect = new MaskConvolutionCommandBitmapEffect();     effect.Angle = 9000;     effect.Depth = 35;     effect.Height = 0;     effect.Type = MaskConvolutionCommandBitmapEffectsType.Emboss;     element.BitmapEffect = effect;       Storyboard storyboard = new Storyboard();       Int32Animation animation1 = new Int32Animation();     animation1.From = 1;     animation1.To = 10;     animation1.Duration = new Duration(TimeSpan.Parse("0:0:5"));     animation1.RepeatBehavior = RepeatBehavior.Forever;     animation1.AutoReverse = true;       Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");     Storyboard.SetTargetProperty(animation1, new PropertyPath(MaskConvolutionCommandBitmapEffect.HeightProperty));     element.RegisterName("AnimatedBitmapEffect", effect);     storyboard.Children.Add(animation1);       storyboard.Begin(element);  }

XAML

Copy Code

<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.Effects;assembly=Leadtools.Windows.Media.Effects">    <Grid>      <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 15\Images\slave.jpg">        <Image.BitmapEffect>          <lteffects:MaskConvolutionCommandBitmapEffect x:Name="AnimatedBitmapEffect" Angle="9000" Depth="35" Height="0" Type="Emboss" />        </Image.BitmapEffect>        <Image.Triggers>          <EventTrigger RoutedEvent="Image.Loaded">            <BeginStoryboard>              <Storyboard>                <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="Height" From="1" To="10" Duration="0:0:5" RepeatBehavior="Forever" AutoReverse="true" />              </Storyboard>            </BeginStoryboard>          </EventTrigger>        </Image.Triggers>      </Image>    </Grid>  </Page>

• For EdgeDetection, the results are the same for opposite angles. For example, angles 0 and 180 have the same result when used with the edge detection mask.
• When an image undergoes image convolution each pixel of the image is multiplied by a mask to create a new pixel value. The mask is an array of values that describes the weight that should be given to each of the pixels surrounding a specific pixel. The new pixel value is the result of the mask sum being divided by the mask weight. Using different masks result in different alterations of the image. The masks used in this command result in different types of edge detection.

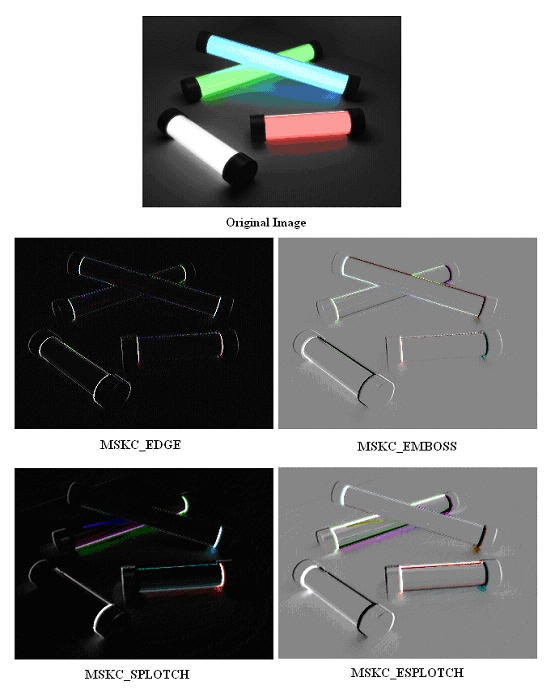

• As an example of the different masks, consider the following example:

• To obtain these images, the following settings were used:


  Parameters	Emboss	Edge	ESplotch	Splotch
  Angle	0	0	180	0
  Depth	3	3	3	3
  Height	250	250	100	100




System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.Effects.MaskConvolutionCommandBitmapEffect

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, and Windows Server 2003
