Remaps the image into a collection of rotated rectangles (cubic faces) so that it appears to have been created in the Cubist art style.

Syntax

Visual Basic (Declaration)
Public Class CubismCommandBitmapEffect Inherits RasterCommandBitmapEffect

Visual Basic (Usage)	Copy Code
`Dim instance As CubismCommandBitmapEffect`

C#
public class CubismCommandBitmapEffect : RasterCommandBitmapEffect

Managed Extensions for C++
public __gc class CubismCommandBitmapEffect : public RasterCommandBitmapEffect

C++/CLI
public ref class CubismCommandBitmapEffect : public RasterCommandBitmapEffect

XAML Property Element Usage
CubismCommandBitmapEffect ...

Example

Visual Basic Copy Code

Visual Basic	Copy Code
Public Sub CubismCommandBitmapEffectExample(ByVal element As FrameworkElement) ' Initialize Effect Dim effect As CubismCommandBitmapEffect = New CubismCommandBitmapEffect() effect.Space = 30 effect.Length = 40 effect.Brightness = 0 effect.Angle = 0 effect.FillColor = System.Windows.Media.Color.FromRgb(127, 127, 127) effect.Flags = CubismCommandBitmapEffectsFlags.Color Or CubismCommandBitmapEffectsFlags.Square Or CubismCommandBitmapEffectsFlags.Random element.BitmapEffect = effect '' Initialize Animations 'Dim animation1 As Int32Animation = New Int32Animation() 'animation1.From = 10 'animation1.To = 40 'animation1.By = 1 'animation1.Duration = New Duration(TimeSpan.FromSeconds(10.0)) 'animation1.AutoReverse = True 'animation1.RepeatBehavior = RepeatBehavior.Forever '' Initialize and run Storyboard 'Dim storyboard As Storyboard = New Storyboard() 'storyboard.SetTargetName(animation1, "AnimatedBitmapEffect") 'storyboard.SetTargetProperty(animation1, New PropertyPath(CubismCommandBitmapEffect.LengthProperty)) 'element.RegisterName("AnimatedBitmapEffect", effect) 'storyboard.Children.Add(animation1) 'storyboard.Begin(element) End Sub

Public Sub CubismCommandBitmapEffectExample(ByVal element As FrameworkElement)



   ' Initialize Effect

   Dim effect As CubismCommandBitmapEffect = New CubismCommandBitmapEffect()

   effect.Space = 30

   effect.Length = 40

   effect.Brightness = 0

   effect.Angle = 0

   effect.FillColor = System.Windows.Media.Color.FromRgb(127, 127, 127)

   effect.Flags = CubismCommandBitmapEffectsFlags.Color Or CubismCommandBitmapEffectsFlags.Square Or CubismCommandBitmapEffectsFlags.Random

   element.BitmapEffect = effect



   '' Initialize Animations

   'Dim animation1 As Int32Animation = New Int32Animation()

   'animation1.From = 10

   'animation1.To = 40

   'animation1.By = 1

   'animation1.Duration = New Duration(TimeSpan.FromSeconds(10.0))

   'animation1.AutoReverse = True

   'animation1.RepeatBehavior = RepeatBehavior.Forever



   '' Initialize and run Storyboard

   'Dim storyboard As Storyboard = New Storyboard()

   'storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")

   'storyboard.SetTargetProperty(animation1, New PropertyPath(CubismCommandBitmapEffect.LengthProperty))

   'element.RegisterName("AnimatedBitmapEffect", effect)

   'storyboard.Children.Add(animation1)



   'storyboard.Begin(element)

End Sub

C# Copy Code

C#	Copy Code
public void CubismCommandBitmapEffectExample(FrameworkElement element) { // Initialize Effect CubismCommandBitmapEffect effect = new CubismCommandBitmapEffect(); effect.Space = 30; effect.Length = 40; effect.Brightness = 0; effect.Angle = 0; effect.FillColor = System.Windows.Media.Color.FromRgb(127, 127, 127); effect.Flags = CubismCommandBitmapEffectsFlags.Color \| CubismCommandBitmapEffectsFlags.Square \| CubismCommandBitmapEffectsFlags.Random; element.BitmapEffect = effect; //// Initialize Animations //Int32Animation animation1 = new Int32Animation(); //animation1.From = 10; //animation1.To = 40; //animation1.By = 1; //animation1.Duration = new Duration(TimeSpan.FromSeconds(1.0)); //animation1.AutoReverse = true; //animation1.RepeatBehavior = RepeatBehavior.Forever; //// Initialize and run Storyboard //Storyboard storyboard = new Storyboard(); //Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect"); //Storyboard.SetTargetProperty(animation1, new PropertyPath(CubismCommandBitmapEffect.LengthProperty)); //element.RegisterName("AnimatedBitmapEffect", effect); //storyboard.Children.Add(animation1); //storyboard.Begin(element); }

public void CubismCommandBitmapEffectExample(FrameworkElement element)
{

   // Initialize Effect
   CubismCommandBitmapEffect effect = new CubismCommandBitmapEffect();
   effect.Space = 30;
   effect.Length = 40;
   effect.Brightness = 0;
   effect.Angle = 0;
   effect.FillColor = System.Windows.Media.Color.FromRgb(127, 127, 127);
   effect.Flags = CubismCommandBitmapEffectsFlags.Color | CubismCommandBitmapEffectsFlags.Square | CubismCommandBitmapEffectsFlags.Random;
   element.BitmapEffect = effect;

   //// Initialize Animations
   //Int32Animation animation1 = new Int32Animation();
   //animation1.From = 10;
   //animation1.To = 40;
   //animation1.By = 1;
   //animation1.Duration = new Duration(TimeSpan.FromSeconds(1.0));
   //animation1.AutoReverse = true;
   //animation1.RepeatBehavior = RepeatBehavior.Forever;

   //// Initialize and run Storyboard
   //Storyboard storyboard = new Storyboard();
   //Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");
   //Storyboard.SetTargetProperty(animation1, new PropertyPath(CubismCommandBitmapEffect.LengthProperty));
   //element.RegisterName("AnimatedBitmapEffect", effect);
   //storyboard.Children.Add(animation1);

   //storyboard.Begin(element);
}

XAML Copy Code

XAML	Copy Code
<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.Effects;assembly=Leadtools.Windows.Media.Effects"> <Grid> <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 15\Images\slave.jpg"> <Image.BitmapEffect> <lteffects:CubismCommandBitmapEffect x:Name="MyBitmapEffect" Length="20" Space="50" /> </Image.BitmapEffect> <Image.Triggers> <EventTrigger RoutedEvent="Image.Loaded"> <BeginStoryboard> <Storyboard> <Int32Animation Storyboard.TargetName="MyBitmapEffect" Storyboard.TargetProperty="Length" From="10" To="40" Duration="0:0:10" RepeatBehavior="Forever" AutoReverse="True" /> </Storyboard> </BeginStoryboard> </EventTrigger> </Image.Triggers> </Image> </Grid> </Page>

<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.Effects;assembly=Leadtools.Windows.Media.Effects">
  <Grid>
    <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 15\Images\slave.jpg">
      <Image.BitmapEffect>
        <lteffects:CubismCommandBitmapEffect x:Name="MyBitmapEffect" Length="20" Space="50" />
      </Image.BitmapEffect>
      <Image.Triggers>
        <EventTrigger RoutedEvent="Image.Loaded">
          <BeginStoryboard>
            <Storyboard>
              <Int32Animation Storyboard.TargetName="MyBitmapEffect" Storyboard.TargetProperty="Length" From="10" To="40" Duration="0:0:10" RepeatBehavior="Forever" AutoReverse="True" />
            </Storyboard>
          </BeginStoryboard>
        </EventTrigger>
      </Image.Triggers>
    </Image>
  </Grid>
</Page>

Remarks

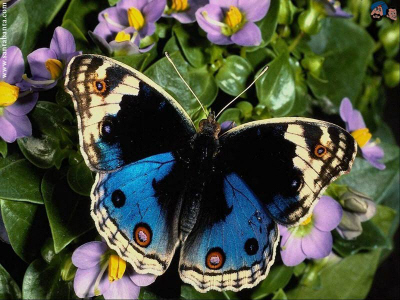

This command remaps the image into a collection of rotated rectangles (cubic faces), producing an image in a Cubist style. For an example, see the following figure:

The following figure shows the same image, after the effect has been applied:

To obtain this effect, the following settings were used with the command:
1. Space = 5
2. Length = 10
3. Brightness = 0
4. Angle = 0
5. Color = FromRgb(0, 0, 0)
6. Flags = CubismCommandBitmapEffectsFlags.Background | CubismCommandBitmapEffectsFlags.Random | CubismCommandBitmapEffectsFlags.Rectangle
This command does not support signed data images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.Effects.CubismCommandBitmapEffect

Requirements

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, and Windows Server 2003
