ZigZagCommandBitmapEffect Class
See Also  Members   Example
Leadtools.Windows.Media.Effects.SpecialEffects Namespace : ZigZagCommandBitmapEffect Class





Radially distorts the image by creating waves that twist the image around a specified center.

Syntax

Visual Basic (Declaration)
Public Class ZigZagCommandBitmapEffect
   Inherits RasterCommandBitmapEffect
Visual Basic (Usage)Copy Code
Dim instance As ZigZagCommandBitmapEffect
C#
public class ZigZagCommandBitmapEffect : RasterCommandBitmapEffect
Managed Extensions for C++
public __gc class ZigZagCommandBitmapEffect : public RasterCommandBitmapEffect
C++/CLI
public ref class ZigZagCommandBitmapEffect : public RasterCommandBitmapEffect
XAML Property Element Usage

ZigZagCommandBitmapEffect ...

Example

Run the ZigZagCommandBitmapEffect on an image and apply the ZigZag filter.

Visual BasicCopy Code
Public Sub ZigZagCommandBitmapEffectExample(ByVal element As FrameworkElement)
   Dim effect As ZigZagCommandBitmapEffect = New ZigZagCommandBitmapEffect()
   effect.Amplitude = 10
   effect.Attenuation = 500
   effect.CenterPoint = New System.Windows.Point(140, 105)
   effect.Flags = ZigZagCommandBitmapEffectsFlags.RadialWave
   effect.Frequency = 7
   effect.Phase = 0
   effect.FillColor = System.Windows.Media.Color.FromRgb(0, 0, 0)
   element.BitmapEffect = effect

   Dim storyboard As Storyboard = New Storyboard()

   Dim animation1 As Int32Animation = New Int32Animation()
   animation1.From = 1
   animation1.To = 100
   animation1.Duration = New Duration(TimeSpan.Parse("0:0:5"))
   animation1.RepeatBehavior = RepeatBehavior.Forever
   animation1.AutoReverse = True

   storyboard.SetTargetName(animation1, "AnimatedBitmapEffect")
   storyboard.SetTargetProperty(animation1, New PropertyPath(ZigZagCommandBitmapEffect.AmplitudeProperty))
   element.RegisterName("AnimatedBitmapEffect", effect)
   storyboard.Children.Add(animation1)

   storyboard.Begin(element)
End Sub
C#Copy Code
public void ZigZagCommandBitmapEffectExample(FrameworkElement element)

   ZigZagCommandBitmapEffect effect = new ZigZagCommandBitmapEffect();
   effect.Amplitude = 10;
   effect.Attenuation = 500;
   effect.CenterPoint = new Point(140, 105);
   effect.Flags = ZigZagCommandBitmapEffectsFlags.RadialWave;
   effect.Frequency = 7;
   effect.Phase = 0;
   effect.FillColor = System.Windows.Media.Color.FromRgb(0, 0, 0);
   element.BitmapEffect = effect;


   Storyboard storyboard = new Storyboard();

   Int32Animation animation1 = new Int32Animation();
   animation1.From = 1;
   animation1.To = 100;
   animation1.Duration = new Duration(TimeSpan.Parse("0:0:5"));
   animation1.RepeatBehavior = RepeatBehavior.Forever;
   animation1.AutoReverse = true;

   Storyboard.SetTargetName(animation1, "AnimatedBitmapEffect");
   Storyboard.SetTargetProperty(animation1, new PropertyPath(ZigZagCommandBitmapEffect.AmplitudeProperty));
   element.RegisterName("AnimatedBitmapEffect", effect);
   storyboard.Children.Add(animation1);

   storyboard.Begin(element);
}
XAMLCopy Code
<Page Title="CSAnimateEffect" Height="391" Width="300" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:lteffects="clr-namespace:Leadtools.Windows.Media.Effects.SpecialEffects;assembly=Leadtools.Windows.Media.Effects">
  <Grid>
    <Image Margin="10,10,10,10" HorizontalAlignment="Center" VerticalAlignment="Center" Source="C:\Program Files\LEAD Technologies, Inc\LEADTOOLS 15\Images\slave.jpg">
      <Image.BitmapEffect>
        <lteffects:ZigZagCommandBitmapEffect x:Name="AnimatedBitmapEffect" FillColor="White" Amplitude="10" Attenuation="500" CenterPoint="140, 105" Flags="RadialWave" Frequency="7" Phase="0" />
      </Image.BitmapEffect>
      <Image.Triggers>
        <EventTrigger RoutedEvent="Image.Loaded">
          <BeginStoryboard>
            <Storyboard>
              <Int32Animation Storyboard.TargetName="AnimatedBitmapEffect" Storyboard.TargetProperty="Amplitude" From="1" To="100" Duration="0:0:5" RepeatBehavior="Forever" AutoReverse="true" />
            </Storyboard>
          </BeginStoryboard>
        </EventTrigger>
      </Image.Triggers>
    </Image>
  </Grid>
</Page>

Remarks

  • As an example, if you use the following image:

    And you were to call ZigZagCommandBitmapEffect using the following settings:
    ParameterValue
    Amplitude47
    Attenuation92
    Frequency13
    Phase-162
    CenterPoint(192, 82)
    FillColorBlack
    FlagsColor | RadialWave

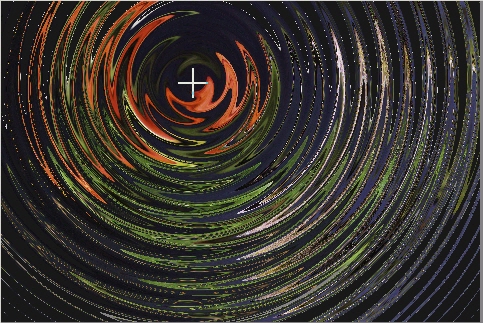

    The following figure results:

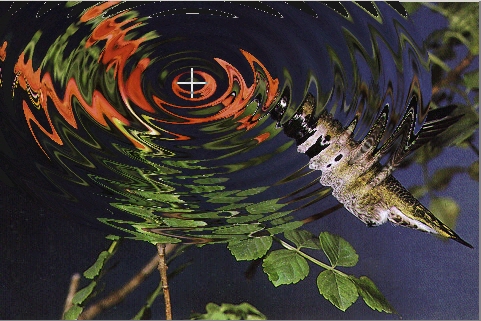

    As another settings, if you use the same settings except you use the PondRippleWave flag, the following figure results:
  • This command does not support signed data images.

Inheritance Hierarchy

System.Object
   System.Windows.Threading.DispatcherObject
      System.Windows.DependencyObject
         System.Windows.Freezable
            System.Windows.Media.Animation.Animatable
               System.Windows.Media.Effects.BitmapEffect
                  Leadtools.Windows.Media.Effects.RasterCommandBitmapEffect
                     Leadtools.Windows.Media.Effects.SpecialEffects.ZigZagCommandBitmapEffect

Requirements

Target Platforms: Microsoft .NET Framework 3.0, Windows XP, Windows Vista, and Windows Server 2003
