DeleteElement Method

Summary

Deletes the specified item from the Data Set.

Syntax

Java

WinRT C#

C++

public DicomElement DeleteElement(
   DicomElement element
)

Public Function DeleteElement( _
   ByVal element As Leadtools.Dicom.DicomElement _
) As Leadtools.Dicom.DicomElement

public Leadtools.Dicom.DicomElement DeleteElement(
   Leadtools.Dicom.DicomElement element
)

public DicomElement deleteElement(DicomElement element)

 function Leadtools.Dicom.DicomDataSet.DeleteElement(
   element
)

public:
Leadtools.Dicom.DicomElement^ DeleteElement(
   Leadtools.Dicom.DicomElement^ element
)

Parameters

element
The item to be deleted.

Return Value

An adjacent item if there is one. If the item being deleted has a sibling (same level, same parent), following it, the returned object will point to this sibling. If the item being deleted does not have a sibling following it, but has a sibling preceding it, the returned object points to the preceding sibling. If the item being deleted is an only child, the returned object points to the parent. If the item being deleted has no siblings and no parent, the method returns a null reference (Nothing in VB).

Remarks

You can remove all items from the Data Set using the DicomDataSet.Reset method. Since the Data Set is stored internally as a tree, the deletion must be carried out as a tree.

When deleting an item from the tree, if the item being deleted has a sibling (same level, same parent), following it, the object returned by the method points to this sibling. If the item being deleted does not have a sibling following it, but has a sibling preceding it, the returned object points to the preceding sibling. If the item being deleted is an only child, the returned object points to the parent. If there is no parent, the method returns a null reference (Nothing in VB). Below are illustrations of these situations.

For the sake of these illustrations, the order of siblings is top to bottom. A preceding sibling is drawn above the sibling it precedes, a following sibling is drawn below the sibling it follows.

Please note that the numbering of the items of interest is arbitrary, and does not imply order.

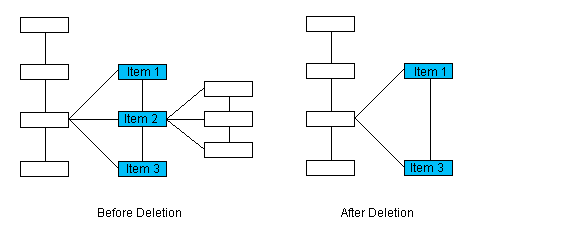

In this illustration, item 2 will be deleted. Since it has a following sibling, the returned object will point to item 3.

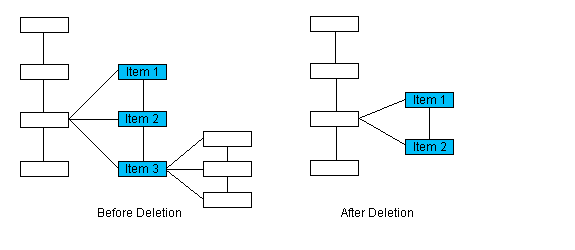

In this illustration, item 3 will be deleted. Since it does not have a following sibling, but does have a preceding sibling, the returned object will point to item 2.
