public class EdgeDetectEffectCommand : RasterCommand
@interface LTEdgeDetectEffectCommand : LTRasterCommand
public class EdgeDetectEffectCommand
extends RasterCommand
public ref class EdgeDetectEffectCommand : public RasterCommand
class EdgeDetectEffectCommand(RasterCommand):
For more information, refer to Detecting and Enhancing Edges and Lines.
Edge Detect Effect Function - Before

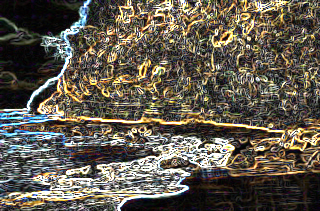

Edge Detect Effect Function - After
View additional platform support for this Edge Detect Effect function.
Run the EdgeDetectEffectCommand on an image.
using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.Effects;
public void EdgeDetectEffectCommandExample()
{
// Load an image
RasterCodecs codecs = new RasterCodecs();
codecs.ThrowExceptionsOnInvalidImages = true;
RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "sample5.cmp"));
// Prepare the command
EdgeDetectEffectCommand command = new EdgeDetectEffectCommand();
command.Level = 50;
command.Threshold = 0;
command.Type = EdgeDetectEffectCommandType.Smooth;
// Apply find edges effect on the image.
command.Run(image);
codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, "Result.jpg"), RasterImageFormat.Jpeg, 24);
}
static class LEAD_VARS
{
public const string ImagesDir = @"C:\LEADTOOLS23\Resources\Images";
}
import java.io.File;
import java.io.IOException;
import org.junit.*;
import org.junit.runner.JUnitCore;
import org.junit.runner.Result;
import org.junit.runner.notification.Failure;
import static org.junit.Assert.*;
import leadtools.*;
import leadtools.codecs.*;
import leadtools.imageprocessing.effects.*;
public void edgeDetectEffectCommandExample() {
final String LEAD_VARS_IMAGES_DIR = "C:\\LEADTOOLS23\\Resources\\Images";
// Load an image
RasterCodecs codecs = new RasterCodecs();
codecs.setThrowExceptionsOnInvalidImages(true);
RasterImage image = codecs.load(combine(LEAD_VARS_IMAGES_DIR, "sample5.cmp"));
// Prepare the command
EdgeDetectEffectCommand command = new EdgeDetectEffectCommand();
command.setLevel(50);
command.setThreshold(0);
command.setType(EdgeDetectEffectCommandType.SMOOTH);
// Apply find edges effect on the image.
int change = command.run(image);
assertTrue(change != RasterImageChangedFlags.NONE);
codecs.save(image, combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"), RasterImageFormat.JPEG, 24);
System.out.println("Command run and image saved to " + combine(LEAD_VARS_IMAGES_DIR, "Result.jpg"));
}
EdgeDetectEffectCommand Members
Leadtools.ImageProcessing.Effects Namespace
Detecting and Enhancing Edges and Lines
EdgeDetectStatisticalCommand Class
DirectionEdgeStatisticalCommand Class
