ColoredPencilExtendedCommand Class

Summary

Applies an effect to a bitmap that makes it look like it has been drawn with colored pencils. This method is available in the Imaging Pro and above toolkits.

Syntax

C++

public class ColoredPencilExtendedCommand : RasterCommand


Public Class ColoredPencilExtendedCommand
   Inherits RasterCommand

public ref class ColoredPencilExtendedCommand : public RasterCommand

Remarks

This method applies an effect to an image that makes it look like it has been drawn with colored pencils.

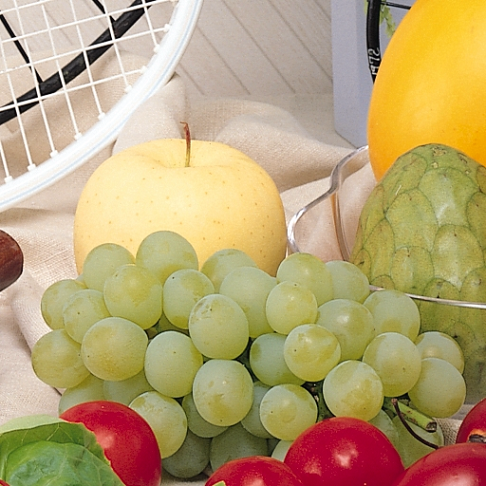

As an example, if you use the following figure:

If you call the ColoredPencilExtendedCommand using the following values:

Parameter	Value
Size	5
Strength	4
Threshold	0
PencilRoughness	250
StrokeLength	15
PaperRoughness	100
Angle	0
Flags	ColoredPencilExtendedCommandFlags.Artistic

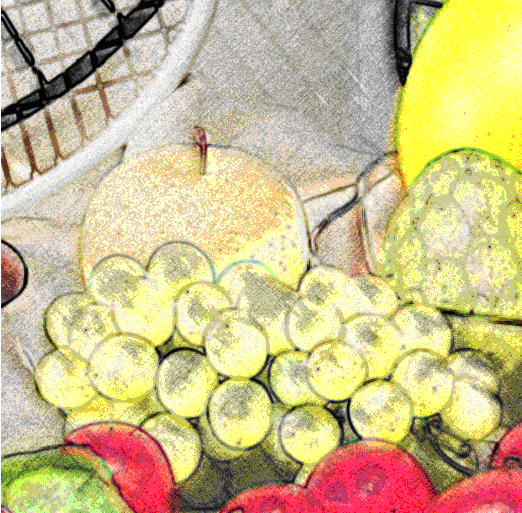

The following figure results:

This method supports 12-bit and 16-bit grayscale and 48 and 64-bit color images. Support for 12-bit and 16-bit grayscale and 48-bit and 64-bit Effects images is available only in the Document/Medical toolkits.
This method does not support signed data images.
This command does not support 32-bit grayscale images.

Example

using Leadtools;
using Leadtools.Codecs;
using Leadtools.ImageProcessing.SpecialEffects;

// Run the ColoredPencilExtendedCommand on an image and applies the Colored Pencil Extended filter.
public void ColoredPencilExtendedCommandExample()
{
   // Load an image
   RasterCodecs codecs = new RasterCodecs();
   codecs.ThrowExceptionsOnInvalidImages = true;

   RasterImage image = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\NaturalFruits.jpg"));

   // Prepare the command
   ColoredPencilExtendedCommand command = new ColoredPencilExtendedCommand();
   command.Size = 5;
   command.Strength = 4;
   command.Threshold = 0;
   command.PencilRoughness = 250;
   command.StrokeLength = 15;
   command.PaperRoughness = 100;
   command.Flags = ColoredPencilExtendedCommandFlags.Artistic;
   command.Run(image);
   codecs.Save(image, Path.Combine(LEAD_VARS.ImagesDir, @"ImageProcessingDemo\Result - ColoredPencilExtendedCommandCS.jpg"), RasterImageFormat.Jpeg, 24);

}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\Users\Public\Documents\LEADTOOLS Images";
}

Imports Leadtools
Imports Leadtools.Codecs
Imports Leadtools.ImageProcessing.SpecialEffects

' Run the ColoredPencilExtendedCommand on an image and applies the Colored Pencil Extended filter.
Public Sub ColoredPencilExtendedCommandExample()
   Dim codecs As New RasterCodecs()
   codecs.ThrowExceptionsOnInvalidImages = True

   Dim leadImage As RasterImage = codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\NaturalFruits.jpg"))

   ' Prepare the command
   Dim command As ColoredPencilExtendedCommand = New ColoredPencilExtendedCommand
   command.Size = 5
   command.Strength = 4
   command.Threshold = 0
   command.PencilRoughness = 250
   command.StrokeLength = 15
   command.PaperRoughness = 100
   command.Flags = ColoredPencilExtendedCommandFlags.Artistic
   command.Run(leadImage)

   codecs.Save(leadImage, Path.Combine(LEAD_VARS.ImagesDir, "ImageProcessingDemo\Result - ColoredPencilExtendedCommandVB.jpg"), RasterImageFormat.Jpeg, 24)
End Sub

Public NotInheritable Class LEAD_VARS
   Public Const ImagesDir As String = "C:\Users\Public\Documents\LEADTOOLS Images"
End Class
