#include "Ltdic.h"
pDICOMELEMENT LDicomDS::GetFirstElement(pElement, bTree, bVolatile)
Returns a pointer to the first item in the Data Set.
Pointer to a DICOMELEMENT structure within the Data Set. A pointer to the DICOMELEMENT structure that contains the first item in the Data Set will be returned.
Flag that indicates how the Data Set will be evaluated. Possible values are:
Value | Meaning |
---|---|
TRUE | Evaluate the Data Set as a tree. |
FALSE | Evaluate the Data Set as a list. |
Flag that indicates the type of element to retrieve. Possible values are:
Value | Meaning |
---|---|
TRUE | Retrieve the first element, volatile or non-volatile. |
FALSE | Retrieve the first non-volatile element. |
Value | Meaning |
---|---|
!NULL | A pointer to a DICOMELEMENT structure that contains the first item in the Data Set. |
NULL | The Data Set is empty. |

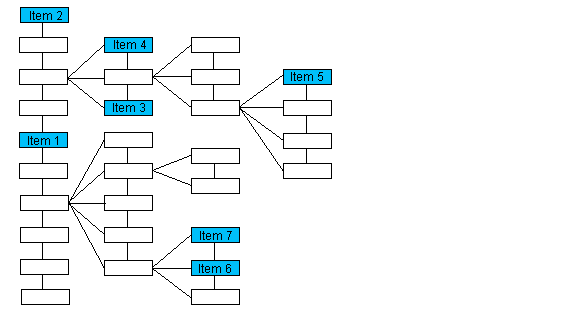

If the Data Set is evaluated as a tree structure, this function returns the first item on the same level as pElement with the same parent as pElement.
NOTE: The numbering of the items in this first illustration is arbitrary and does not imply order.
If the passed pointer points to: | The function returns a pointer to: |
---|---|
Item 1 | Item 2 |
Item 3 | Item 4 |
Item 5 | Item 5 |
Item 6 | Item 7 |
NULL | Item 2 |

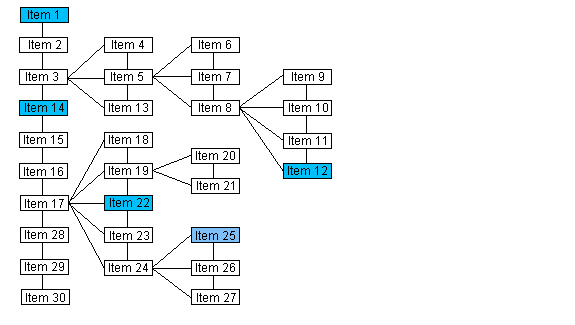

If the Data Set is evaluated as a list, the first item in the list is returned.
NOTE: The numbering of the items in this illustration does indicate the order of the items when the Data Set is evaluated as a list.
If the passed pointer points to: | The function returns a pointer to: |
---|---|
NULL | Item 1 |
Item 12 | Item 1 |
Item 14 | Item 1 |
Item 22 | Item 1 |
Item 25 | Item 1 |
The following functions will also help you navigate the Data Set as either a tree or a list:
If you evaluate the Data Set as a tree, you can also use the following functions to navigate the tree:
A volatile element is an element that can be changed or destroyed in the process of inserting or setting an image. A non-volatile element is an element that must be changed manually. It is not changed or destroyed by inserting or setting an image.
For example, a grayscale image has elements TAG_SMALLEST_IMAGE_PIXEL_VALUE, TAG_LARGEST_IMAGE_PIXEL_VALUE, etc. If the image is changed to a color image, these elements disappear and the following elements appear: TAG_RED_PALETTE_COLOR_LOOKUP_TABLE_DESCRIPTOR, etc. These are volatile elements since they are changed or destroyed when an image is changed or set.
To retrieve the first element that must be changed manually, i.e. is not volatile, set bVolatile to FALSE. To retrieve the first element, either volatile or non-volatile, set bVolatile to TRUE.
Required DLLs and Libraries
Win32, x64
This example displays the list of elements in the Data Set.
L_VOID ShowList(LDicomDS *pDS)
{
pDICOMELEMENT pElement;
pDICOMTAG pTag;
L_TCHAR szUnknown[]=TEXT("Unknown");
L_TCHAR *p;
pElement = pDS->GetFirstElement(NULL, FALSE, FALSE);
while (pElement != NULL)
{
pTag = LDicomTag::Find(pElement->nTag);
if (pTag != NULL)
{
p = pTag->pszName;
}
else
{
p = szUnknown;
}
OutputDebugString(p);
OutputDebugString(TEXT("\n"));
pElement = pDS->GetNextElement(pElement, FALSE, FALSE);
}
}
L_INT LDicomDS_GetFirstElementExample()
{
LDicomDS *pDS;
pDS = new LDicomDS(NULL);
pDS->InitDS( CLASS_XA_BIPLANE_IMAGE_STORAGE_RETIRED, 0);
ShowList(pDS);
delete pDS;
return DICOM_SUCCESS;
}
