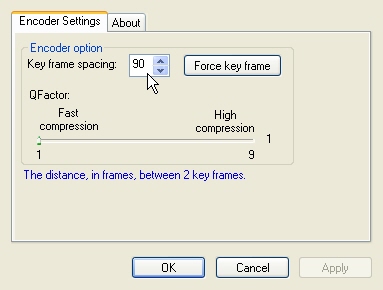

This is the main interface for the screen capture encoder filter. It contains properties to adjust the key frame spacing and the quality factor, and a method to force a key frame. The property page is shown in the following figure:
The Screen capture encoder property page provides a user interface for changing the filter's attributes. Changes will be applied when the Apply or OK is clicked. Positioning the mouse pointer over a control displays general information for that control.
The following table shows the controls and their descriptions:
Control |
Description |
Key frame spacing edit box |
Specifies the number of frames between key frames. |
Force key frame button |
Forces the current frame to be compressed as a key frame. |
Qfactor slider bar |
Specifies the quality factor for compression |
