MedicalViewerFusion Class

using Leadtools;
using Leadtools.Dicom;
using Leadtools.Medical3D;
using Leadtools.Codecs;
using Leadtools.MedicalViewer;
using Leadtools.ImageProcessing;
using Leadtools.ImageProcessing.Core;
using Leadtools.ImageProcessing.Color;
using Leadtools.Annotations.Engine;
using Leadtools.Annotations.Designers;

class MedicalViewerFusionForm : Form
{
    private MedicalViewer _medicalViewer;

    void MedicalViewerLocalizer_SizeChanged(object sender, EventArgs e)
    {
        _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);
    }

    public MedicalViewerFusionForm()
    {
        DicomEngine.Startup();
        RasterCodecs _codecs = new RasterCodecs();

        this.SizeChanged += new EventHandler(MedicalViewerLocalizer_SizeChanged);

        // Create the medical viewer and adjust the size and the location.
        _medicalViewer = new MedicalViewer(1, 2);
        _medicalViewer.Location = new Point(0, 0);
        _medicalViewer.Size = new Size(this.ClientRectangle.Right, this.ClientRectangle.Bottom);

        // Load an image and then add it to the control.

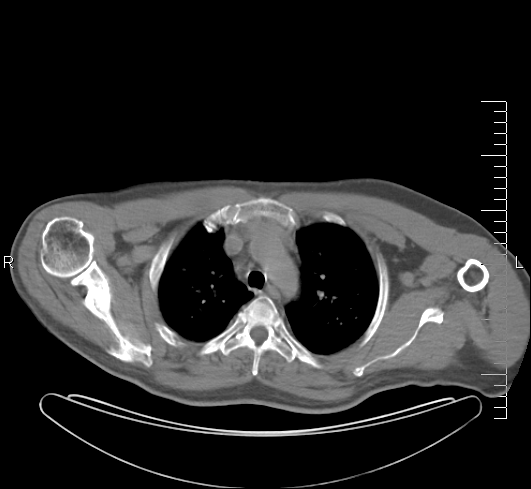

        RasterImage _image = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "xa.dcm"));
        MedicalViewerMultiCell cell = new MedicalViewerMultiCell(_image, true, 1, 1);

        cell.FitImageToCell = false;

        // add some action that will be used to change the properties of the images inside the control.
        cell.AddAction(MedicalViewerActionType.Scale);
        cell.AddAction(MedicalViewerActionType.Offset);
        cell.AddAction(MedicalViewerActionType.WindowLevel);
        cell.AddAction(MedicalViewerActionType.Stack);

        // assign the added actions to a mouse button, meaning that when the user click and drag the mouse button, the associated action will be activated.
        cell.SetAction(MedicalViewerActionType.Scale, MedicalViewerMouseButtons.Middle, MedicalViewerActionFlags.Active);
        cell.SetAction(MedicalViewerActionType.Offset, MedicalViewerMouseButtons.Right, MedicalViewerActionFlags.Active);
        cell.SetAction(MedicalViewerActionType.WindowLevel, MedicalViewerMouseButtons.Left, MedicalViewerActionFlags.Active);
        cell.SetAction(MedicalViewerActionType.Stack, MedicalViewerMouseButtons.Wheel, MedicalViewerActionFlags.Active);

        // Creates a new fusion object, this object will hold the image (image3.dcm) that will be fused with the original image (xa.dcm).
        MedicalViewerFusion fusion = new MedicalViewerFusion();

        // the fused image.

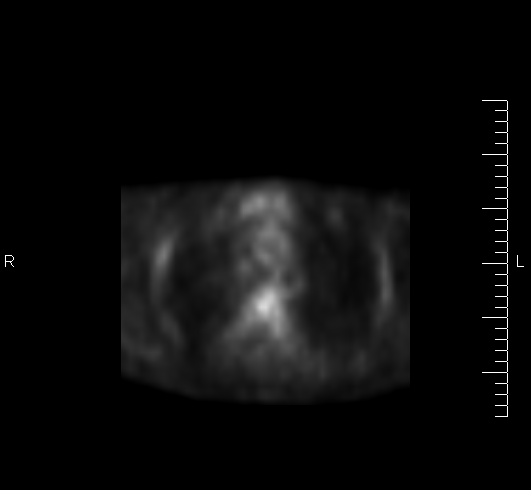

        fusion.FusedImage = _codecs.Load(Path.Combine(LEAD_VARS.ImagesDir, "image3.dcm"));
        // the fusion scale.
        fusion.FusionScale = 0.5f;
        // the color palette that will be used in the fusion process.
        fusion.ColorPalette = MedicalViewerPaletteType.Cool;

        // start the fusion.
        cell.SubCells[0].Fusion.Add(fusion);


        _medicalViewer.Cells.Add(cell);
        // adjust some properties to the cell and add some tags.
        _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.UserData, "EX. ID 230-36-5448");
        _medicalViewer.Cells[0].SetTag(4, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Frame);
        _medicalViewer.Cells[0].SetTag(6, MedicalViewerTagAlignment.TopLeft, MedicalViewerTagType.Scale);
        _medicalViewer.Cells[0].SetTag(2, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.WindowLevelData);
        _medicalViewer.Cells[0].SetTag(1, MedicalViewerTagAlignment.BottomLeft, MedicalViewerTagType.FieldOfView);

        cell.ScaleType = MedicalViewerScaleType.Dynamic;

        Controls.Add(_medicalViewer);
        _medicalViewer.Dock = DockStyle.Fill;
        DicomEngine.Shutdown();
    }

    void MedicalViewerLocalizer_FormClosing(object sender, FormClosingEventArgs e)
    {
    }


    public MedicalViewer Viewer
    {
        get { return _medicalViewer; }
    }
}

MedicalViewerFusionForm GetMedicalViewerFusionForm()
{
    return new MedicalViewerFusionForm();
}

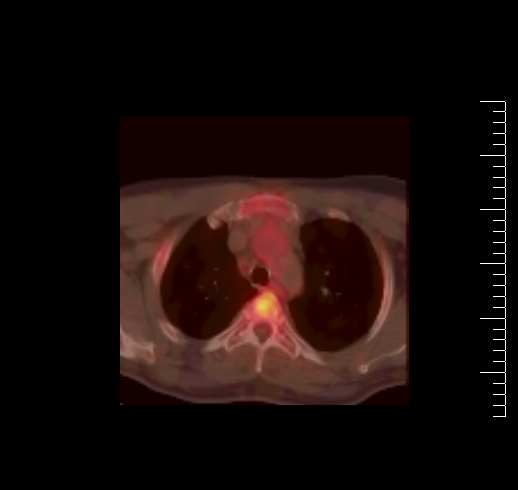

// This examples fuses the xa.dcm image with the image3.dcm image, and uses the preset palette (Cool) to do the fusion process.
public void MedicalViewerFusionExample()
{
    MedicalViewerFusionForm myForm = GetMedicalViewerFusionForm();
    MedicalViewer medicalViewer = myForm.Viewer;

    myForm.ShowDialog();
}

static class LEAD_VARS
{
   public const string ImagesDir = @"C:\LEADTOOLS21\Resources\Images";
}
