public enum MedicalViewerTagAlignment
Public Enum MedicalViewerTagAlignment
Inherits System.Enum
Implements System.IComparable, System.IConvertible, System.IFormattable
public enum class MedicalViewerTagAlignment : public System.Enum, System.IComparable, System.IConvertible, System.IFormattable
Value | Member | Description |
---|---|---|
0 | TopLeft | Start counting rows from the top of the cell. The tag will be left-justified. |
1 | LeftCenter | The tag is placed in the center, based on the height of the cell, and is left-justified. |
2 | BottomLeft | Start counting rows from the bottom of the cell. The tag will be left-justified. |
3 | TopCenter | The tag is placed in the center, based on the width of the cell, and is top-justified. |
4 | BottomCenter | The tag is placed in the center, based on the width of the cell, and is bottom-justified. |
5 | TopRight | Start counting rows from the top of the cell. The tag will be right-justified. |
6 | RightCenter | The tag is placed in the center, based on the height of the cell, and is right-justified. |
7 | BottomRight | Start counting rows from the bottom of the cell. The tag will be right-justified. |

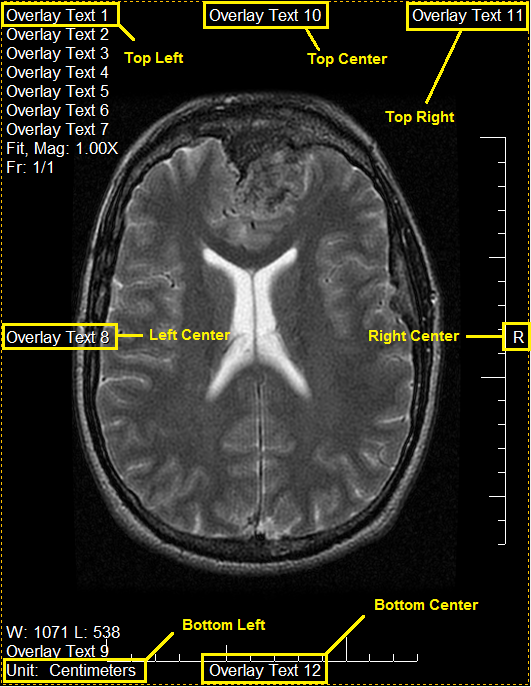

Below is a picture that describes how each tag is located based on the tag alignment value.
