L_DicomAddUserInfo
#include "ltdic.h"
L_LTDIC_API L_INT L_DicomAddUserInfo(hPDU, nType, pData, nLength)
Appends a User-defined item to the specified DICOM Associate.
Parameters
HDICOMPDU hPDU
A DICOM Associate handle.
L_UCHAR nType
Type of the User-defined item.
L_UCHAR * pData
Buffer that contains the data for the User-defined item.
L_UINT16 nLength
Length of the User-defined item.
Returns
| Value | Meaning |
|---|---|
| DICOM_SUCCESS | The function was successful. |
| >0 | An error occurred. Refer to Return Codes. |
Comments

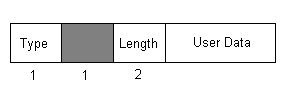

User-defined items may be included in the DICOM Associate to provide any other data the user finds necessary when establishing a DICOM Associate connection. The basic structure of the User-defined item is
where the Type, Length and User Data are all determined by the user. The values shown are the lengths, in bytes, of the elements of the User-defined item.
Required DLLs and Libraries
- LTDIC
- For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application
Win32, x64, Linux.
See Also
Functions
- L_DicomGetUserInfoCount
- L_DicomGetLengthUserInfo
- L_DicomGetDataUserInfo
- L_DicomGetTypeUserInfo
- L_DicomSetUserInfo
- L_DicomDelUserInfo
Topics
Example
For an example, refer to L_DicomGetUserInfoCount.
