L_DicomGetNextIOD

#include "Ltdic.h"

L_LTDIC_API pDICOMIOD L_DicomGetNextIOD(pIOD, bTree)

Returns a pointer to the item in the IOD Structure that immediately follows the specified item.

Parameters

pDICOMIOD pIOD

Pointer to a DICOMIOD structure that contains an item in the IOD Structure. A pointer to the item in the IOD Structure that immediately follows this item will be returned.

L_BOOL bTree

Flag that indicates how the IOD Structure will be evaluated. Possible values are:

Returns

Comments

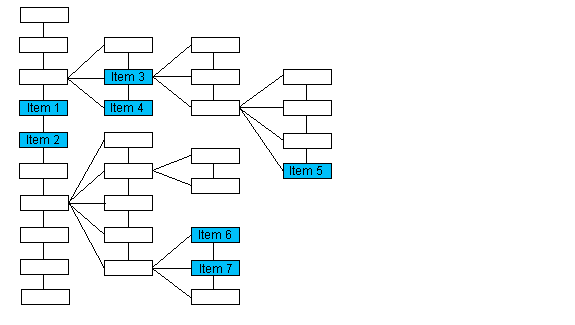

If the IOD Structure is evaluated as a tree structure, this function returns the next item on the same level as pIOD with the same parent as pIOD. Please note that the numbering of the items in this illustration is arbitrary and does not imply order.

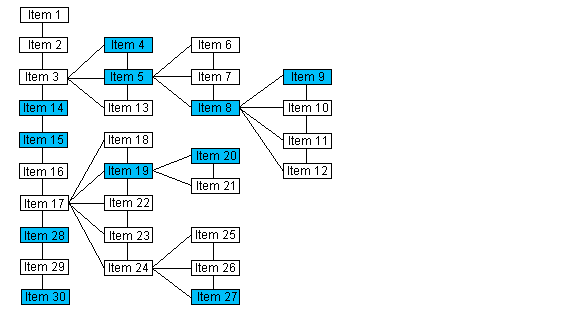

If the IOD Structure is evaluated as a list, the next item in the list is returned. Please note that the numbering of the items in this illustration does indicate the order of the items when the IOD Structure is evaluated as a list.

The following functions will also help you navigate the IOD Structure as either a tree or a list:

• L_DicomGetFirstIOD
• L_DicomGetPrevIOD
• L_DicomGetLastIOD

If you evaluate the IOD Structure as a tree, you can also use the following functions to navigate the tree:

• L_DicomGetRootIOD
• L_DicomGetParentIOD
• L_DicomGetChildIOD

Required DLLs and Libraries

• LTDIC
• For a listing of the exact DLLs and Libraries needed, based on the toolkit version, refer to Files To Be Included With Your Application

Platforms

Win32, x64, Linux.

L_INT DicomGetNextIODExample(HWND hDlg)
{
   pDICOMIOD pIOD;

   pIOD = L_DicomGetFirstIOD(NULL, TRUE);
   while (pIOD != NULL)
   {
      SendMessage(hDlg, LB_ADDSTRING, (WPARAM)0, (LPARAM)(LPCTSTR)pIOD->pszName);
      pIOD = L_DicomGetNextIOD(pIOD, TRUE);
   }
   return DICOM_SUCCESS;
}
