Cell3D Object

Summary

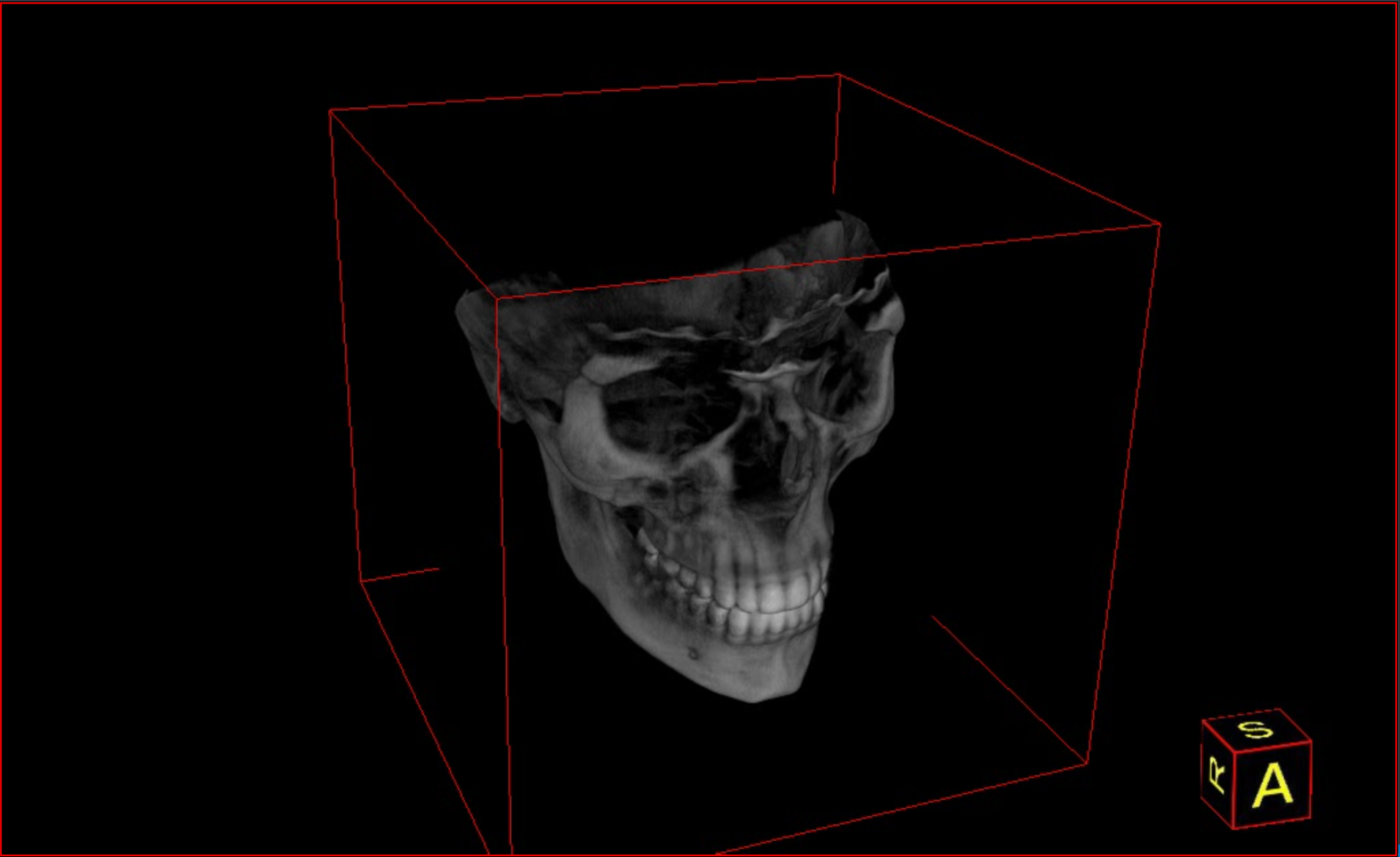

This class represents the cell that is used to display the 3D image output.

Syntax
TypeScript
JavaScript
function lt.Controls.Medical.Cell3D
	extends lt.Controls.Medical.Series
class lt.Controls.Medical.Cell3D()
	extends Series
Remarks

To add this to the MedicalViewer use the Layout property.

Cell3D Class
Example
Cell3D.js
MedicalViewer_MultiFrame_Example.js
Cell3D.ts
MedicalViewer_MultiFrame_Example.ts
Cell3D.html

import { MedicalViewer_MultiFrame_Example } from "../MedicalViewer_MultiFrame_Example";

export class Cell3D_Example {
    constructor() {
        this.run = (medicalViewer, authenticationCode) => {
            this.medicalViewer = medicalViewer;
            // we are going to get the cell that contains the polygon in order to generate the panoramic cell.
            var cell = this.medicalViewer.layout.cells.get_item(0);
            var _frame = cell.frames.get_item(cell.currentOffset);
            var cell3D = new lt.Controls.Medical.Cell3D(medicalViewer, cell.divID + "_Cell3D");
            cell3D.seriesInstanceUID = cell.seriesInstanceUID;
            cell3D.studyInstanceUID = cell3D.studyInstanceUID + "_3D";
            var threed = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/threed/";
            medicalViewer.layout.cells.add(cell3D);
            // create the engine.
            cell3D.object3D = new lt.Controls.Medical.Object3DEngine(cell.divID + "_3D_Volume");
            // add the request 3D data event which will act as a proxy between the engine and the server.
            var engine3D = cell3D.object3D;
            engine3D.add_request3DData(function (sender, args) {
                switch (args.type) {
                    // the engine is requesting the current progress value.
                    case lt.Controls.Medical.Requested3DDataType.creationProgress:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            request3DDataPost.onreadystatechange = function (data) {
                                if (this.readyState == 4 && this.status == 200) {
                                    var percent = parseInt(JSON.parse(this.responseText));
                                    if (engine3D.progress != 100)
                                        engine3D.progress = percent;
                                }
                            };
                            request3DDataPost.open("POST", threed + "CheckProgress", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            var progressSettings = {
                                authenticationCookie: authenticationCode,
                                id: engine3D.id
                            };
                            request3DDataPost.send(JSON.stringify(progressSettings));
                        }
                        break;
                    // the engine is requesting the creation of the 3D object.
                    case lt.Controls.Medical.Requested3DDataType.create3DObject:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            ;
                            request3DDataPost.open("POST", threed + "Create3DObject", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997";
                            var create3DOptions = {
                                authenticationCookie: authenticationCode,
                                options: { PatientsOptions: {}, SeriesOptions: { SeriesInstanceUID: seriesInstanceUID }, StudiesOptions: {} },
                                id: engine3D.id,
                                renderingType: 0,
                                extraOptions: { UserData2: "1.3.12.2.1107.5.1.4.50772.30000009122208215356200002253" }
                            };
                            request3DDataPost.send(JSON.stringify(create3DOptions));
                        }
                        break;
                    // the engine is requesting an image that contains the 3D rendered volume.
                    case lt.Controls.Medical.Requested3DDataType.render:
                        cell3D.image.src = args.JSON;
                        break;
                    // the engine is requesting deleting the 3D volume.
                    case lt.Controls.Medical.Requested3DDataType.delete3DObject:
                        {
                            var request3DDataPost = new XMLHttpRequest();
                            request3DDataPost.onreadystatechange = function (data) {
                            };
                            request3DDataPost.open("POST", threed + "End3DObject", true);
                            request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                            var endObjectSettings = {
                                authenticationCookie: authenticationCode,
                                id: engine3D.id
                            };
                            request3DDataPost.send(JSON.stringify(endObjectSettings));
                        }
                        break;
                }
            });
            // this event is fired when the status of the 3D volume changed.
            engine3D.add_statusChanged(function (sender, args) {
                switch (args.status) {
                    case lt.Controls.Medical.Object3DStatus.ready:
                        cell3D.URL = threed + "/Get3DImage?auth=" + authenticationCode;
                        break;
                }
            });
            // starts the engine, which will trigger the 3D volume creation process.
            cell3D.start("");
            setTimeout(function () {
                engine3D.end();
                alert('this demo has a timer that will dispose the 3D object in 30 seconds, the time has lapsed... changed the timeout to make the 3D stay longer.');
            }, 30000);
        };
        this.viewerExample = new MedicalViewer_MultiFrame_Example(this.run);
    }
}
export class MedicalViewer_MultiFrame_Example {
    constructor(callback) {
        var _this = this;
        // LEADTOOLS ImageViewer to be used with this example
        this.medicalViewer = null;
        // Generic state value used by the examples
        this.timesClicked = 0;
        this.authenticationCode = "";
        // Set the LEADTOOLS license. Replace this with your actual license file
        lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);
        // Create an image viewer inside the imageViewerDiv element
        var imageViewerDiv = document.getElementById("imageViewerDiv");
        var createOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);
        var aspPath = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/";
        this.medicalViewer = new lt.Controls.Medical.MedicalViewer(imageViewerDiv, 2, 2);
        this.medicalViewer.onSizeChanged();
        var cell = new lt.Controls.Medical.Cell(this.medicalViewer, null, 1, 1);
        // Set the show border to "true", to show a border around the cell.
        cell.set_showFrameBorder(true);
        // Add the cell to the viewer.
        this.medicalViewer.layout.get_items().add(cell);
        // [optional] Select the cell (it can also be selected by clicking on it.)
        cell.set_selected(true);
        cell.fullDownload = false;
        cell.marginFramesCount = 3;
        var self = this;
        // we are now going to to download an image from leadtools medical viewer demo web site, you need to change this to download images from your database.
        var xhttp = new XMLHttpRequest();
        xhttp.onreadystatechange = function (data) {
            if (this.readyState == 4 && this.status == 200) {
                // here we got the authentication Code that we need to retrieve the images from leadtools database.
                self.authenticationCode = this.responseText;
                var encodedAuthenticationCode = self.authenticationCode;
                // we get here the object retrieve address that points to a service that retireves the information and the images from the server.
                var objectRetrieveAddress = aspPath + "api/retrieve";
                var objectRetrieveQueryAddress = aspPath + "api/query";
                var studyInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208074910900000022";
                // this is the series instance UID that contains all the frames that will be retrieved.
                var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997";
                cell.seriesInstanceUID = seriesInstanceUID;
                cell.studyInstanceUID = studyInstanceUID;
                // we are generating the address for retrieving the instances information.
                var queryArchive = objectRetrieveQueryAddress;
                queryArchive += "/FindInstances";
                var getStackRequest = new XMLHttpRequest();
                getStackRequest.onreadystatechange = function (data) {
                    if (this.readyState == 4 && this.status == 200) {
                        var json = JSON.parse(this.responseText);
                        var instanceIndex = 0;
                        // if instance count is zero, then the study doesn't exist on the server.
                        var instanceCount = json.length;
                        // add frames based on the size of the number of instances.
                        for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {
                            var cellFrame = new lt.Controls.Medical.Frame(cell);
                            cell.get_frames().add(cellFrame);
                        }
                        // loop through every frame, and prepare the data.
                        for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {
                            cellFrame = cell.get_frames().get_item(instanceIndex);
                            var pageInfo = json[instanceIndex].Pages[0];
                            cellFrame.imagePosition = pageInfo.ImagePositionPatientArray;
                            cellFrame.imageOrientation = pageInfo.ImageOrientationPatientArray;
                            if (pageInfo.PixelSpacingPatientArray != null && pageInfo.PixelSpacingPatientArray.length == 2) {
                                cellFrame.set_rowSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[1]));
                                cellFrame.set_columnSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[0]));
                            }
                            // now, this is the MRTI info that contains the image information, width, height, tiles....etc.
                            var mrtiInfo = new lt.Controls.Medical.MRTIImage();
                            // The image dpi.
                            mrtiInfo.fullDpi = lt.LeadSizeD.create(150, 150);
                            // the tile size, recommended value is 256
                            mrtiInfo.tileSize = lt.LeadSizeD.create(512, 512);
                            mrtiInfo.frameIndex = 0;
                            // does this image support window leve.
                            mrtiInfo.supportWindowLevel = true;
                            // different resolution for the image.
                            var resolutions = [{ "width": 512, "height": 512 }, { "width": 256, "height": 256 }, { "width": 128, "height": 128 }, { "width": 64, "height": 64 }];
                            mrtiInfo.resolutions = [];
                            for (var i = 0; i < resolutions.length; i++) {
                                mrtiInfo.resolutions[i] = lt.LeadSizeD.create(resolutions[i].width, resolutions[i].height);
                            }
                            // the image width and height.
                            cellFrame.set_width(mrtiInfo.resolutions[0].width);
                            cellFrame.set_height(mrtiInfo.resolutions[0].height);
                            // the image full size.
                            mrtiInfo.fullSize = lt.LeadSizeD.create(cellFrame.get_width(), cellFrame.get_height());
                            // now we need the image URL,
                            var imageUri = objectRetrieveAddress;
                            imageUri += "/GetImageTile?auth=";
                            imageUri += encodedAuthenticationCode;
                            // this the image instance UID, change this if you want to retrieve anything else.
                            imageUri += "&instance=" + json[instanceIndex].SOPInstanceUID;
                            mrtiInfo.imageUri = imageUri;
                            // set this info to the cell frame.
                            cellFrame.mrtiInfo = mrtiInfo;
                            // now we need to set the information for the image so we can do window level.
                            var imageInfo = new lt.Controls.Medical.DICOMImageInformation();
                            // set the image width and height.
                            imageInfo.width = 512;
                            imageInfo.height = 512;
                            // bits per pixel for the image
                            imageInfo.bitsPerPixel = 16;
                            // low and high bit.
                            imageInfo.lowBit = 0;
                            imageInfo.highBit = 11;
                            // other information, setting some of them to zero means that the toolkit will try and calculate it by itself, but you can always get those values from the DicomDataSet.
                            imageInfo.modalityIntercept = -1024;
                            imageInfo.modalitySlope = 1;
                            imageInfo.minValue = 0;
                            imageInfo.maxValue = 0;
                            imageInfo.windowWidth = 200;
                            imageInfo.windowCenter = 40;
                            imageInfo.signed = false;
                            imageInfo.photometricInterpretation = 'MONOCHROME2';
                            imageInfo.firstStoredPixelValueMapped = 0;
                            // set these information to the frame.
                            cellFrame.set_information(imageInfo);
                        }
                        // scroll to the middle of the series.
                        cell.currentOffset = instanceCount >> 1;
                    }
                };
                getStackRequest.open("POST", queryArchive, true);
                getStackRequest.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
                var queryParams = {
                    "PatientsOptions": {},
                    "StudiesOptions": {},
                    "SeriesOptions": { "SeriesInstanceUID": seriesInstanceUID }
                };
                var findInstanceData = {
                    authenticationCookie: encodedAuthenticationCode,
                    options: queryParams,
                    extraOptions: { UserData2: "" }
                };
                getStackRequest.send(JSON.stringify(findInstanceData));
            }
        };
        // We are trying here to get an image from the Leadtools database, we need to login and get the authentication code.
        xhttp.open("POST", "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/auth/AuthenticateUser", true);
        xhttp.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
        // we log in as a 'guest', after calling the below line, we will receive the authentication code sent via 'onreadystatechange' above.
        xhttp.send(JSON.stringify({ userName: 'guest', password: 'guest', userData: '' }));
        var exampleButton = document.getElementById("exampleButton");
        exampleButton.addEventListener("click", function () {
            _this.timesClicked++;
            // Run the example
            if (callback)
                callback(_this.medicalViewer, _this.authenticationCode);
        });
    }
}
///<reference path="../../../static/LT/Leadtools.d.ts"/>
///<reference path="../../../static/LT/Leadtools.Controls.d.ts"/>
///<reference path="../../../static/LT/Leadtools.Controls.Medical.d.ts"/>

import { MedicalViewer_MultiFrame_Example } from "../MedicalViewer_MultiFrame_Example";


export class Cell3D_Example {
   private viewerExample;
   private medicalViewer;
   constructor() {
      this.viewerExample = new MedicalViewer_MultiFrame_Example(this.run);
   }

   private run = (medicalViewer: lt.Controls.Medical.MedicalViewer, authenticationCode: string) => {
      this.medicalViewer = medicalViewer;

      // we are going to get the cell that contains the polygon in order to generate the panoramic cell.
      var cell: lt.Controls.Medical.Cell = this.medicalViewer.layout.cells.get_item(0);
      var _frame: lt.Controls.Medical.Frame = cell.frames.get_item(cell.currentOffset);



      var cell3D: lt.Controls.Medical.Cell3D = new lt.Controls.Medical.Cell3D(medicalViewer, cell.divID + "_Cell3D");
      cell3D.seriesInstanceUID = cell.seriesInstanceUID;
      cell3D.studyInstanceUID = cell3D.studyInstanceUID + "_3D";


      var threed = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/threed/";

      medicalViewer.layout.cells.add(cell3D);

      // create the engine.
      cell3D.object3D = new lt.Controls.Medical.Object3DEngine(cell.divID + "_3D_Volume");

      // add the request 3D data event which will act as a proxy between the engine and the server.
      var engine3D: lt.Controls.Medical.Object3DEngine = cell3D.object3D;
      engine3D.add_request3DData(function (sender, args: lt.Controls.Medical.Request3DDataEventArgs) {

         switch (args.type) {
            // the engine is requesting the current progress value.
            case lt.Controls.Medical.Requested3DDataType.creationProgress:
               {
                  var request3DDataPost = new XMLHttpRequest();
                  request3DDataPost.onreadystatechange = function (data) {
                     if (this.readyState == 4 && this.status == 200) {
                        var percent = parseInt(JSON.parse(this.responseText));
                        if (engine3D.progress != 100)
                           engine3D.progress = percent;
                     }
                  };

                  request3DDataPost.open("POST", threed + "CheckProgress", true);
                  request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');

                  var progressSettings =
                  {
                     authenticationCookie: authenticationCode,
                     id: engine3D.id
                  }

                  request3DDataPost.send(JSON.stringify(progressSettings));
               }
               break;

            // the engine is requesting the creation of the 3D object
            case lt.Controls.Medical.Requested3DDataType.create3DObject:
               {
                  var request3DDataPost = new XMLHttpRequest();;
                  request3DDataPost.open("POST", threed + "Create3DObject", true);
                  request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');

                  var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997"

                  var create3DOptions = {
                     authenticationCookie: authenticationCode,
                     options: { PatientsOptions: {}, SeriesOptions: { SeriesInstanceUID: seriesInstanceUID }, StudiesOptions: {} },
                     id: engine3D.id,
                     renderingType: 0,
                     extraOptions: { UserData2: "1.3.12.2.1107.5.1.4.50772.30000009122208215356200002253" }
                  };

                  request3DDataPost.send(JSON.stringify(create3DOptions));
               }
               break;

            // the engine is requesting an image that contains the 3D rendered volume.
            case lt.Controls.Medical.Requested3DDataType.render:
               cell3D.image.src = args.JSON;
               break;

            // the engine is requesting deleting the 3D volume.
            case lt.Controls.Medical.Requested3DDataType.delete3DObject:
               {
                  var request3DDataPost = new XMLHttpRequest();
                  request3DDataPost.onreadystatechange = function (data) {
                  };

                  request3DDataPost.open("POST", threed + "End3DObject", true);
                  request3DDataPost.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');

                  var endObjectSettings =
                  {
                     authenticationCookie: authenticationCode,
                     id: engine3D.id
                  }

                  request3DDataPost.send(JSON.stringify(endObjectSettings));
               }
               break;


         }

      });

      // this event is fired when the status of the 3D volume changed.
      engine3D.add_statusChanged(function (sender, args: lt.Controls.Medical.StatusChangedEventArgs) {

         switch (args.status) {
            case lt.Controls.Medical.Object3DStatus.ready:
               cell3D.URL = threed + "/Get3DImage?auth=" + authenticationCode;
               break;
         }

      });


      // starts the engine, which will trigger the 3D volume creation process.
      cell3D.start("");

      setTimeout(function () {
         engine3D.end();
         alert('this demo has a timer that will dispose the 3D object in 30 seconds, the time has lapsed... changed the timeout to make the 3D stay longer.')
      },
         30000);







      // medicalViewer.emptyDivs.items.collectionChanged.add( (sender, e) => {
      //    var index = 0;
      //    var div;
      //    var length = e.newItems.length;

      //    if (e.get_action() === lt.NotifyLeadCollectionChangedAction.add) {
      //       for (; index < length; index++) {

      //          var emptyCell: lt.Controls.Medical.EmptyCell = e.newItems[index];
      //          div = emptyCell.div;
      //          (<any>div.emptyCell) = emptyCell;
      //          //div.addEventListener('mouseup', this.clicked);
      //       }

      //    }
      // });

   }
}
export class MedicalViewer_MultiFrame_Example {
   // LEADTOOLS ImageViewer to be used with this example
   protected medicalViewer: lt.Controls.Medical.MedicalViewer = null;
   // Generic state value used by the examples
   public timesClicked: number = 0;
   public authenticationCode: string = "";

   constructor(callback?: (medicalViewer: lt.Controls.Medical.MedicalViewer, authenticationCode: string) => void) {
      // Set the LEADTOOLS license. Replace this with your actual license file
      lt.RasterSupport.setLicenseUri("https://demo.leadtools.com/licenses/js/LEADTOOLSEVAL.txt", "EVAL", null);

      // Create an image viewer inside the imageViewerDiv element
      const imageViewerDiv: HTMLDivElement = <HTMLDivElement>document.getElementById("imageViewerDiv");
      const createOptions: lt.Controls.ImageViewerCreateOptions = new lt.Controls.ImageViewerCreateOptions(imageViewerDiv);



      var aspPath = "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/";

      this.medicalViewer = new lt.Controls.Medical.MedicalViewer(imageViewerDiv, 2, 2);
      this.medicalViewer.onSizeChanged();

      var cell = new lt.Controls.Medical.Cell(this.medicalViewer, null, 1, 1);

      // Set the show border to "true", to show a border around the cell.
      cell.set_showFrameBorder(true);

      // Add the cell to the viewer.
      this.medicalViewer.layout.get_items().add(cell);

      // [optional] Select the cell (it can also be selected by clicking on it.)
      cell.set_selected(true);

      cell.fullDownload = false;
      cell.marginFramesCount = 3;

      var self = this;

      // we are now going to to download an image from leadtools medical viewer demo web site, you need to change this to download images from your database.
      var xhttp = new XMLHttpRequest();
      xhttp.onreadystatechange = function (data) {
         if (this.readyState == 4 && this.status == 200) {
            // here we got the authentication Code that we need to retrieve the images from leadtools database.

            self.authenticationCode = this.responseText;
            var encodedAuthenticationCode = self.authenticationCode;

            // we get here the object retrieve address that points to a service that retireves the information and the images from the server.
            var objectRetrieveAddress = aspPath + "api/retrieve";
            var objectRetrieveQueryAddress = aspPath + "api/query";

            var studyInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208074910900000022";
            // this is the series instance UID that contains all the frames that will be retrieved.
            var seriesInstanceUID = "1.3.12.2.1107.5.1.4.50772.30000009122208215356200001997"

            cell.seriesInstanceUID = seriesInstanceUID;
            cell.studyInstanceUID = studyInstanceUID;

            // we are generating the address for retrieving the instances information.
            var queryArchive = objectRetrieveQueryAddress;
            queryArchive += "/FindInstances";


            var getStackRequest = new XMLHttpRequest();
            getStackRequest.onreadystatechange = function (data) {
               if (this.readyState == 4 && this.status == 200) {
                  var json = JSON.parse(this.responseText);

                  var instanceIndex = 0;

                  // if instance count is zero, then the study doesn't exist on the server.
                  var instanceCount = json.length;


                  // add frames based on the size of the number of instances.
                  for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {
                     var cellFrame = new lt.Controls.Medical.Frame(cell);
                     cell.get_frames().add(cellFrame);
                  }

                  // loop through every frame, and prepare the data.
                  for (instanceIndex = 0; instanceIndex < instanceCount; instanceIndex++) {

                     cellFrame = cell.get_frames().get_item(instanceIndex);

                     var pageInfo = json[instanceIndex].Pages[0];

                     cellFrame.imagePosition = pageInfo.ImagePositionPatientArray;

                     cellFrame.imageOrientation = pageInfo.ImageOrientationPatientArray;


                     if (pageInfo.PixelSpacingPatientArray != null && pageInfo.PixelSpacingPatientArray.length == 2) {
                        cellFrame.set_rowSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[1]));
                        cellFrame.set_columnSpacing(parseFloat(pageInfo.PixelSpacingPatientArray[0]));
                     }


                     // now, this is the MRTI info that contains the image information, width, height, tiles....etc.
                     var mrtiInfo = new lt.Controls.Medical.MRTIImage();

                     // The image dpi.
                     mrtiInfo.fullDpi = lt.LeadSizeD.create(150, 150);

                     // the tile size, recommended value is 256
                     mrtiInfo.tileSize = lt.LeadSizeD.create(512, 512);
                     mrtiInfo.frameIndex = 0;

                     // does this image support window leve.
                     mrtiInfo.supportWindowLevel = true;


                     // different resolution for the image.
                     var resolutions = [{ "width": 512, "height": 512 }, { "width": 256, "height": 256 }, { "width": 128, "height": 128 }, { "width": 64, "height": 64 }];
                     mrtiInfo.resolutions = [];
                     for (var i = 0; i < resolutions.length; i++) {
                        mrtiInfo.resolutions[i] = lt.LeadSizeD.create(resolutions[i].width, resolutions[i].height);
                     }

                     // the image width and height.
                     cellFrame.set_width(mrtiInfo.resolutions[0].width);
                     cellFrame.set_height(mrtiInfo.resolutions[0].height);

                     // the image full size.
                     mrtiInfo.fullSize = lt.LeadSizeD.create(cellFrame.get_width(), cellFrame.get_height());

                     // now we need the image URL,
                     var imageUri = objectRetrieveAddress;
                     imageUri += "/GetImageTile?auth=";
                     imageUri += encodedAuthenticationCode;
                     // this the image instance UID, change this if you want to retrieve anything else.
                     imageUri += "&instance=" + json[instanceIndex].SOPInstanceUID;


                     mrtiInfo.imageUri = imageUri;

                     // set this info to the cell frame.
                     cellFrame.mrtiInfo = mrtiInfo;


                     // now we need to set the information for the image so we can do window level.
                     var imageInfo = new lt.Controls.Medical.DICOMImageInformation();


                     // set the image width and height.
                     imageInfo.width = 512;
                     imageInfo.height = 512;

                     // bits per pixel for the image
                     imageInfo.bitsPerPixel = 16;
                     // low and high bit.
                     imageInfo.lowBit = 0;
                     imageInfo.highBit = 11;

                     // other information, setting some of them to zero means that the toolkit will try and calculate it by itself, but you can always get those values from the DicomDataSet.
                     imageInfo.autoScaleIntercept = -1024;
                     imageInfo.autoScaleSlope = 1;
                     imageInfo.minValue = 0;
                     imageInfo.maxValue = 0;
                     imageInfo.windowWidth = 200;
                     imageInfo.windowCenter = 40;
                     imageInfo.signed = false;
                     imageInfo.photometricInterpretation = 'MONOCHROME2';
                     imageInfo.firstStoredPixelValueMapped = 0;

                     // set these information to the frame.

                     cellFrame.set_information(imageInfo);
                  }

                  // scroll to the middle of the series.
                  cell.currentOffset = instanceCount >> 1;
               }
            }

            getStackRequest.open("POST", queryArchive, true);
            getStackRequest.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');

            var queryParams =
            {
               "PatientsOptions": {},
               "StudiesOptions": {},
               "SeriesOptions": { "SeriesInstanceUID": seriesInstanceUID }
            };


            var findInstanceData = {
               authenticationCookie: encodedAuthenticationCode,
               options: queryParams,
               extraOptions: { UserData2: "" }
            };


            getStackRequest.send(JSON.stringify(findInstanceData));


         }
      };

      // We are trying here to get an image from the Leadtools database, we need to login and get the authentication code.
      xhttp.open("POST", "https://medicaldemos.leadtools.com/MedicalViewerServiceAsp22/api/auth/AuthenticateUser", true);
      xhttp.setRequestHeader('Content-Type', 'application/json; charset=UTF-8');
      // we log in as a 'guest', after calling the below line, we will receive the authentication code sent via 'onreadystatechange' above.
      xhttp.send(JSON.stringify({ userName: 'guest', password: 'guest', userData: '' }));

      const exampleButton = document.getElementById("exampleButton");
      exampleButton.addEventListener("click", () => {
         this.timesClicked++;
         // Run the example
         if (callback)
            callback(this.medicalViewer, this.authenticationCode);
      });
   }
}
<!doctype html>
<html lang="en">
<title>3D Cell Example</title>

<head>
   <script src="https://code.jquery.com/jquery-2.2.4.min.js"
      integrity="sha256-BbhdlvQf/xTY9gja0Dq3HiwQF8LaCRTXxZKRutelT44=" crossorigin="anonymous"></script>

   <script src="../../LT/Leadtools.js"></script>
   <script src="../../LT/Leadtools.Controls.js"></script>
   <script src="../../LT/Leadtools.Annotations.Engine.js"></script>
   <script src="../../LT/Leadtools.Annotations.Designers.js"></script>
   <script src="../../LT/Leadtools.Annotations.Rendering.Javascript.js"></script>
   <script src="../../LT/Leadtools.Annotations.Automation.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Main.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Color.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Core.js"></script>
   <script src="../../LT/Leadtools.ImageProcessing.Effects.js"></script>
   <script src="../../LT/Leadtools.Document.js"></script>
   <script src="../../LT/Leadtools.Document.Viewer.js"></script>
   <script src="../../LT/Leadtools.Controls.Medical.js"></script>
   <style>
      body {
         font-family: 'Segoe UI', sans-serif;
      }

      #imageViewerDiv {
         border: 1px solid #888;
         width: 500px;
         height: 500px;
         background-color: #eee;
      }
   </style>

   <!-- All demo files are bundled and appended to the window -->
   <script src="../../bundle.js" type="text/javascript"></script>
</head>

<body  oncontextmenu="return false;">
   <p>Create a 3D volume.</p>
   <p>Run the example, and generat the 3d volume, use the left mouse button to rotate the 3D volume.</p>
   <div>
      <button type="button" id="exampleButton">Run Example</button>
   </div>
   <div id="imageViewerDiv"></div>
   <div id="output"></div>
</body>

<script>
   window.onload = () => {
       const example = new window.examples.MedicalViewer.Cell3D();

   };
</script>
</html>
Requirements

Target Platforms

Help Version 23.0.2024.5.7
Products | Support | Contact Us | Intellectual Property Notices
© 1991-2024 LEAD Technologies, Inc. All Rights Reserved.

Leadtools.Controls.Medical Assembly
Products | Support | Contact Us | Intellectual Property Notices
© 1991-2023 LEAD Technologies, Inc. All Rights Reserved.
